SDI18 Series

Manufacturer: CUI Inc.

Catalog

Catalog

PLUG-IN ADAPTER SINGLE-OUT 9V 2.2A 19.8W

...

Part	Standard Number	No Load Power Consumption	Region Utilized	Applications	Form	Input Connector	Voltage - Output	Input Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Cord Length	Cord Length	Output Connector [custom]	Output Connector	Output Connector [custom]	Output Connector [custom]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Polarization	Power (Watts)	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Output Connector [diameter]	Output Connector [x]	Output Connector [z]

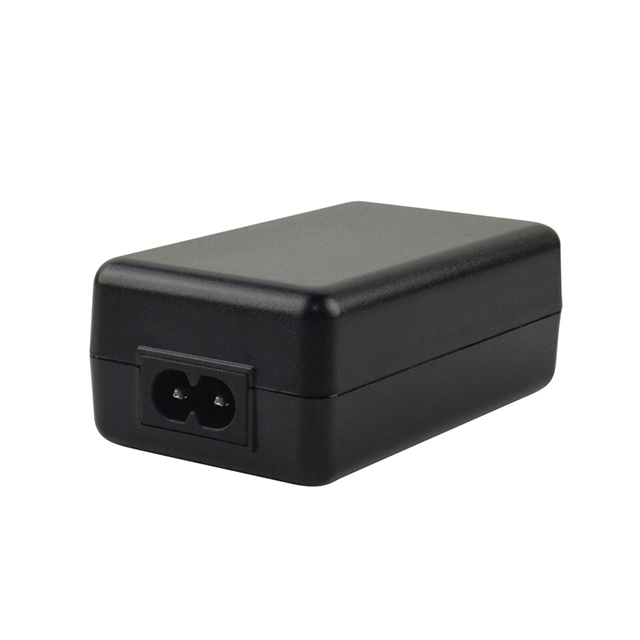

CUI Inc. SDI18-9-UD2-P5R	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	100 mW	Europe	ITE (Commercial)	Desktop (Class II)	IEC 320-C8	9 V	Cord	2.2 A	40 °C	0 °C	144.7 g	0.319 lb	1.5 m	59 in	9.5 mm	Barrel Plug R/A	5.5 mm	2.1 mm	CB Scheme CCC CSA EN FCC IEC PSE UL	264 VAC	90 VAC	Positive Center	20 W	CoC Tier 2 Level VI	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm
CUI Inc. SDI18-5-UD2-P6	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	100 mW	Europe	ITE (Commercial)	Desktop (Class II)	IEC 320-C8	5 V	Cord	3 A	40 °C	0 °C	144.7 g	0.319 lb	1.5 m	59 in		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE UL	264 VAC	90 VAC	Positive Center	15 W	CoC Tier 2 Level VI	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	2.5 mm 5.5 mm	9.5 mm
CUI Inc. SDI18-9-UDC-P5R	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	100 mW	North America	ITE (Commercial)	Desktop (Class II)	IEC 320-C8	9 V	Cord	2.2 A	40 °C	0 °C	144.7 g	0.319 lb	1.5 m	59 in	9.5 mm	Barrel Plug R/A	5.5 mm	2.1 mm	CB Scheme CCC CSA EN FCC IEC PSE UL	264 VAC	90 VAC	Positive Center	20 W	CoC Tier 2 Level VI	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm
CUI Inc. SDI18-24-UD-P5R	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	100 mW	International	ITE (Commercial)	Desktop (Class II)	IEC 320-C8	24 V	Cord (Sold Separately)	0.8 A	40 °C	0 °C	144.7 g	0.319 lb	1.5 m	59 in	9.5 mm	Barrel Plug R/A	5.5 mm	2.1 mm	CB Scheme CCC CSA EN FCC IEC PSE UL	264 VAC	90 VAC	Positive Center	19 W	CoC Tier 2 Level VI	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm

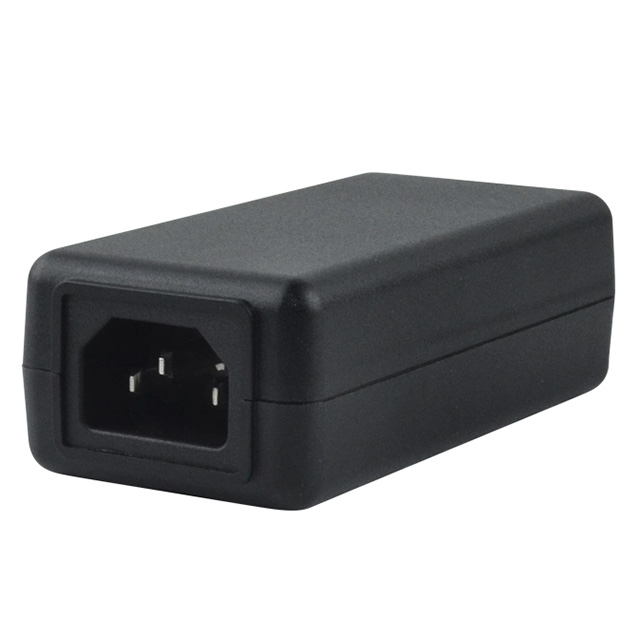

CUI Inc. SDI18-15-U2-P5	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	100 mW	Europe	ITE (Commercial)	Desktop (Class I)	IEC 320-C14	15 V	Cord	1.3 A	40 °C	0 °C	144.7 g	0.319 lb	1.5 m	59 in		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE UL	264 VAC	90 VAC	Positive Center	19 W	CoC Tier 2 Level VI	100 mm	1.3 in	33 mm	1.97 in	3.94 in	50 mm	2.1 mm 5.5 mm	9.5 mm
CUI Inc. SDI18-5-UC-P6	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	100 mW	North America	ITE (Commercial)	Desktop (Class I)	IEC 320-C14	5 V	Cord	3 A	40 °C	0 °C	144.7 g	0.319 lb	1.5 m	59 in		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE UL	264 VAC	90 VAC	Positive Center	15 W	CoC Tier 2 Level VI	100 mm	1.3 in	33 mm	1.97 in	3.94 in	50 mm	2.5 mm 5.5 mm	9.5 mm
CUI Inc. SDI18-15-U2-P6R	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	100 mW	Europe	ITE (Commercial)	Desktop (Class I)	IEC 320-C14	15 V	Cord	1.3 A	40 °C	0 °C	144.7 g	0.319 lb	1.5 m	59 in		Barrel Plug R/A			CB Scheme CCC CSA EN FCC IEC PSE UL	264 VAC	90 VAC	Positive Center	19 W	CoC Tier 2 Level VI	100 mm	1.3 in	33 mm	1.97 in	3.94 in	50 mm	2.5 mm 5.5 mm		9.5 mm
CUI Inc. SDI18-9-U-P5	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	100 mW	International	ITE (Commercial)	Desktop (Class I)	IEC 320-C14	9 V	Cord (Sold Separately)	2.2 A	40 °C	0 °C	144.7 g	0.319 lb	1.5 m	59 in		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE UL	264 VAC	90 VAC	Positive Center	20 W	CoC Tier 2 Level VI	100 mm	1.3 in	33 mm	1.97 in	3.94 in	50 mm	2.1 mm 5.5 mm	9.5 mm
CUI Inc. SDI18-15-UD2-P6	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	100 mW	Europe	ITE (Commercial)	Desktop (Class II)	IEC 320-C8	15 V	Cord	1.3 A	40 °C	0 °C	144.7 g	0.319 lb	1.5 m	59 in		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE UL	264 VAC	90 VAC	Positive Center	19 W	CoC Tier 2 Level VI	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	2.5 mm 5.5 mm	9.5 mm
CUI Inc. SDI18-9-UDC-P6	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	100 mW	North America	ITE (Commercial)	Desktop (Class II)	IEC 320-C8	9 V	Cord	2.2 A	40 °C	0 °C	144.7 g	0.319 lb	1.5 m	59 in		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE UL	264 VAC	90 VAC	Positive Center	20 W	CoC Tier 2 Level VI	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	2.5 mm 5.5 mm	9.5 mm
