316-029 Series
Manufacturer: EDAC Inc.
Beta
⌘K

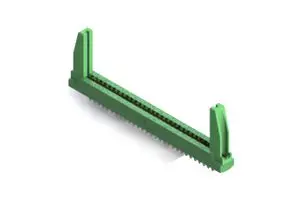

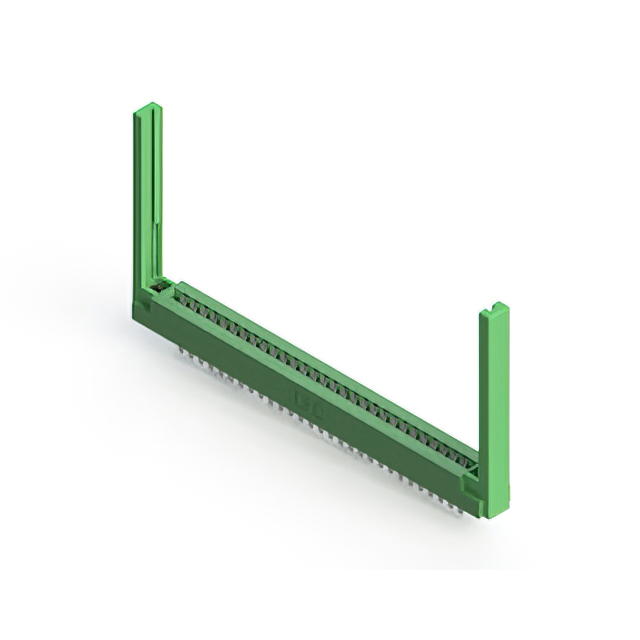

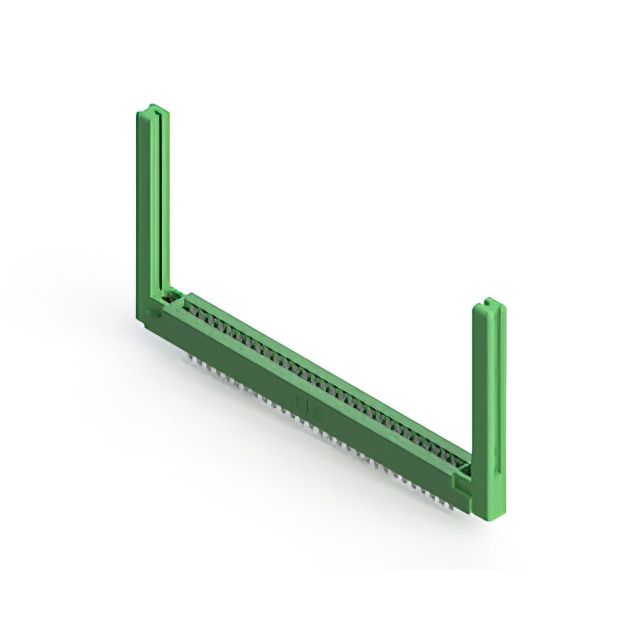

CONN EDGE DUAL FMALE 58POS 0.156
| Part | Material - Insulation | Termination Rows | Contact Type | Pitch | Pitch | Color | Contact Material | Gender | Card Thickness [Max] | Card Thickness [Min] | Card Type | Contact Finish | Flange Feature | Read Out | Number of Positions | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 3.96 mm | 0.156 in | Green | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Tin | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 58 | 2 | -40 C | 105 ░C | 29 | Solder | Panel Mount Through Hole | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 3.96 mm | 0.156 in | Green | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 58 | 2 | -40 C | 105 ░C | 29 | Solder Eyelet(s) | Panel Mount | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 3.96 mm | 0.156 in | Green | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Gold | Flush Mount Top Opening Unthreaded | Dual | 58 | 2 | -40 C | 105 ░C | 29 | Solder Eyelet(s) | Panel Mount | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 3.96 mm | 0.156 in | Green | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Tin | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 58 | 2 | -40 C | 105 ░C | 29 | Solder Eyelet(s) | Panel Mount | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 3.96 mm | 0.156 in | Green | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Gold | Dual | 58 | 2 | -40 C | 105 ░C | 29 | Solder | Through Hole | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 3.96 mm | 0.156 in | Green | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 58 | 2 | -40 C | 105 ░C | 29 | Solder | Through Hole | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 3.96 mm | 0.156 in | Green | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 58 | 2 | -40 C | 105 ░C | 29 | Solder | Through Hole | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 3.96 mm | 0.156 in | Green | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Gold | Flush Mount Top Opening Unthreaded | Dual | 58 | 2 | -40 C | 105 ░C | 29 | Solder | Through Hole | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 3.96 mm | 0.156 in | Green | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Gold | Floating Bobbin Flush Mount | Dual | 58 | 2 | -40 C | 105 ░C | 29 | Solder | Through Hole | 0.25 Ám | 10 Áin | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | 3.96 mm | 0.156 in | Green | Copper Alloy | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Tin | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 58 | 2 | -40 C | 105 ░C | 29 | Solder Eyelet(s) | Panel Mount | Card Guides |
