8348 Series
Manufacturer: Belden Inc.
Beta
⌘K

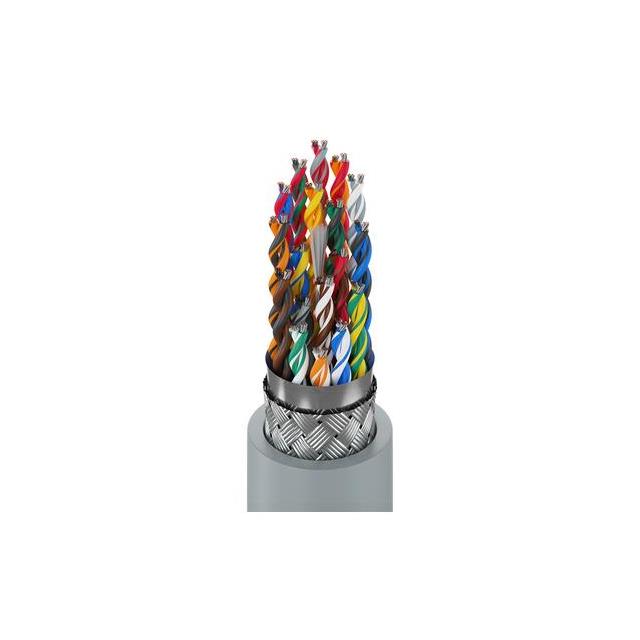

MULTI-PAIR 36COND 24AWG
| Part | Shield Coverage | Shield Material | Conductor Material | Shield Type | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Cable Type | Usage | Wire Gauge | Length | Length | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Copper Tinned | Braid Foil | 300 VDC | 1.143 mm | 0.045 in | 80 °C | -30 ░C | 36 | Chrome | 7 | 32 AWG | UL Style 2464 | 0.48 in | 12.19 mm | Poly-Vinyl Chloride (PVC) | Multi-Pair | Computer | 24 AWG | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) |
