306-034 Series
Manufacturer: EDAC Inc.
Catalog

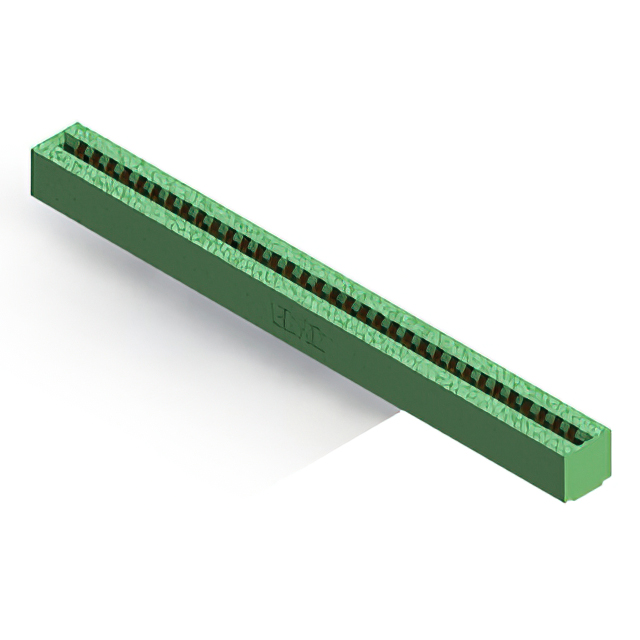

CONN EDGE DUAL FMALE 68POS 0.156
| Part | Termination Rows | Material - Insulation | Color | Number of Positions/Bay/Row | Read Out | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Number of Positions | Number of Rows [custom] | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Termination | Mounting Type | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Green | 34 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 68 positions | 2 | Female | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Dual Edge | Solder Eyelet(s) | Panel Mount | Tin | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Green | 34 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 68 positions | 2 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Solder Eyelet(s) | Panel Mount | Gold | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Green | 34 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 68 positions | 2 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Solder Eyelet(s) | Panel Mount | Gold | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Green | 34 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 68 positions | 2 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Solder Eyelet(s) | Panel Mount | Gold | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Green | 34 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 68 positions | 2 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Solder | Panel Mount Through Hole | Gold | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Green | 34 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 68 positions | 2 | Female | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Dual Edge | Solder Eyelet(s) | Panel Mount | Tin | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Green | 34 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 68 positions | 2 | Female | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Non Specified - Dual Edge | Solder | Panel Mount Through Hole | Tin | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Green | 34 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 68 positions | 2 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Solder | Panel Mount Through Hole | Gold | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Green | 34 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 68 positions | 2 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Solder | Panel Mount Through Hole | Gold | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Green | 34 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 68 positions | 2 | Female | Non Specified - Dual Edge | Solder | Through Hole | Gold | -40 C | 105 ░C | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin |
