MB612 Series
Manufacturer: Deca
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

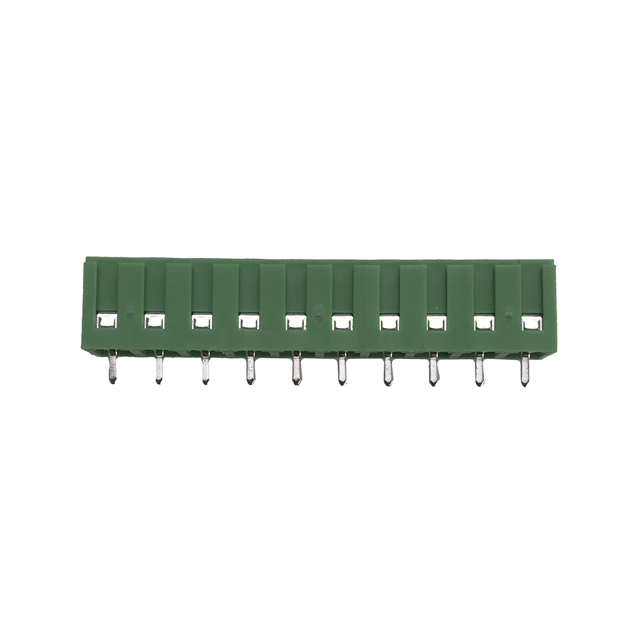

PCB TERMINAL BLOCK, 5.00MM, 10 P
| Part | Contact Material | Plating | Screw Thread | Torque - Screw | Clamp Material | Clamp Plating | Screw Plating | Screw Material | Housing Material | Operating Temperature (Min) | Operating Temperature (Max) | Voltage | Pitch | Color | Number of Levels | Mating Orientation | Positions Per Level | Mounting Type | Current | Wire Termination | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Deca | Brass | Tin Plated | M2.6 | 0.51 Nm | Brass | Nickel Plated | Zinc Plated | Steel | Nylon 6/6 PA66 Polyamide | -40 °C | 105 °C | 300 V | 0.197 in | Green | 1 | Horizontal with Board | 10 | Through Hole | 16 A | Rising Cage Clamp Screw | 26 AWG | 14 AWG |
