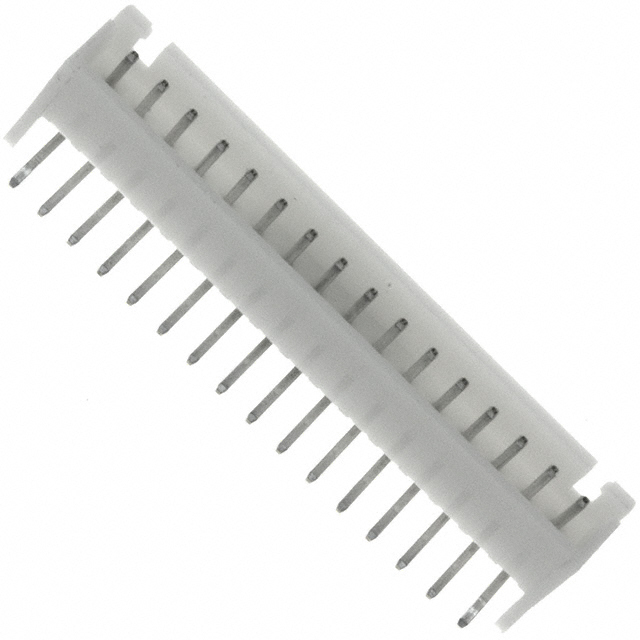

S16B-XH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 16POS 2.5MM
| Part | Contact Shape | Style | Insulation Color | Termination | Contact Length - Post [x] | Contact Length - Post | Shrouding | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Type | Fastening Type | Mounting Type | Number of Positions Loaded | Current Rating (Amps) | Number of Positions | Voltage Rating | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Connector Type | Number of Rows | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Square | Board to Cable/Wire | Natural | Press-Fit Solder | 0.134 " | 3.4 mm | Shrouded - 4 Wall | 6.1 mm | 0.24 in | 2.5 mm | 0.098 in | UL94 V-0 | Male Pin | Detent Lock | Right Angle Through Hole | All | 3 A | 16 | 250 V | Tin | 85 °C | -25 °C | Brass | Header | 1 | Nylon 6/6 Polyamide (PA66) |
