3254 Series

Catalog

CONN TERM RECT 2/0 AWG #1/2

Part	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Termination	Stud/Tab Size	Terminal Style	Terminal Type	Mounting Type	Length - Overall [x]	Length - Overall	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Barrel ID	Diameter - Barrel ID [diameter]	Tab Thickness	Tab Thickness	Contact Material	Contact Finish	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Thickness	Thickness	Color	Diameter - Ring ID [diameter]
TE Connectivity Raychem Cable Protection 325405	Non-Insulated	24.64 mm	0.97 "	0.646 in	16.41 mm	Barrel Crimp	1/2 Stud	Single Stud Hole	Standard	Free Hanging (In-Line)	2.11 "	53.59 mm	13.08 mm	0.515 in	13.03 mm	0.513 in	0.11 in	2.79 mm	Copper	Tin

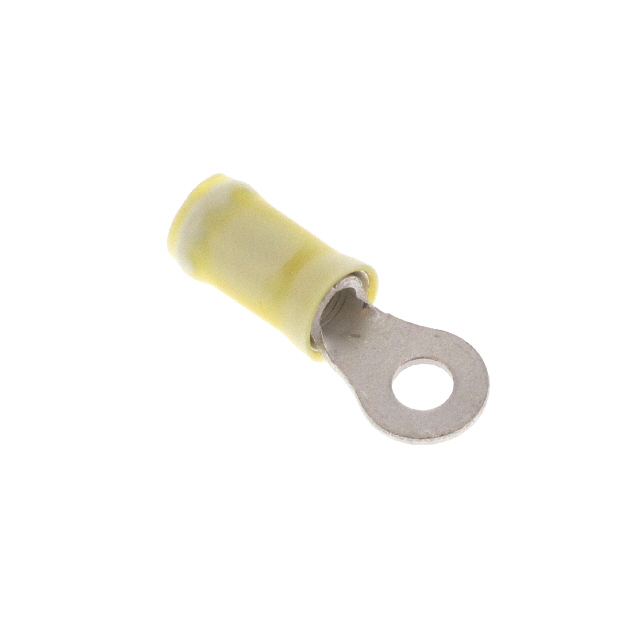

TE Connectivity Raychem Cable Protection 32543	Insulated	9.53 mm	0.375 in			Crimp	8 Stud		Circular	Free Hanging (In-Line)	1.083 in								Copper	Tin	Vinyl	12 AWG	10 AWG	27.5 mm	0.15 "	3.81 mm	0.23 in	5.84 mm	0.99 mm	0.039 in	Yellow

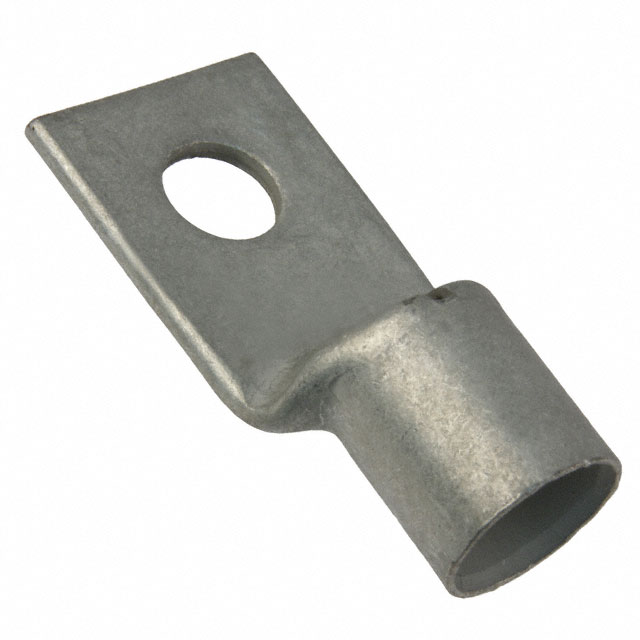

TE Connectivity Raychem Cable Protection 325403	Non-Insulated	24.64 mm	0.97 "	0.646 in	16.41 mm	Barrel Crimp	3/8 Stud	Single Stud Hole	Standard	Free Hanging (In-Line)	2.11 "	53.59 mm		9.91 mm	13.03 mm	0.513 in	0.11 in	2.79 mm	Copper	Tin												0.39 in

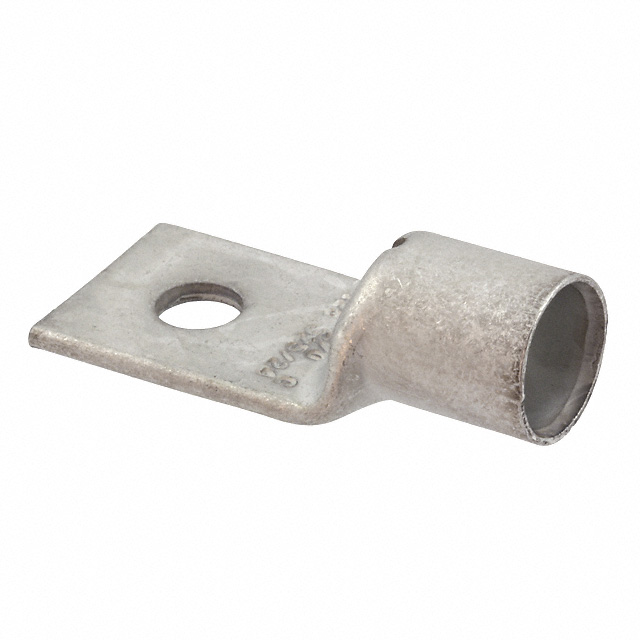

TE Connectivity Raychem Cable Protection 325402	Non-Insulated	24.64 mm	0.97 "	0.646 in	16.41 mm	Barrel Crimp		Single Stud Hole	Rectangular Tongue	Free Hanging (In-Line)	2.11 "	53.59 mm		8.33 mm	13.03 mm	0.513 in	0.11 in	2.79 mm	Copper	Tin												0.328 in
