MP-3020 Series

Catalog

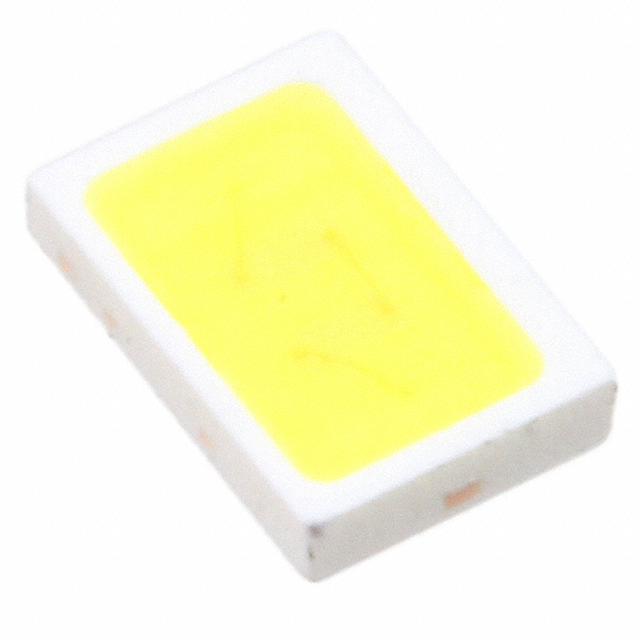

LED MP3020 COOL WHITE 6500K 3020

Part	Thermal Resistance of Package	Mounting Type	CCT (K)	Current - Test	Package / Case	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Current - Max [Max]	CRI (Color Rendering Index)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test	Supplier Device Package
Luminus Devices Inc. MP-3020-2100-65-80	23 °C/W	Surface Mount	6500 K	120 mA	1208 (3020 Metric)	Cool White	0.079 in	0.118 "	2 mm	3 mm	110 °	120 mA	80	0.52 mm	0.02 in	85 lm/W	6.3 V	86 lm	3020
Luminus Devices Inc. MP-3020-3100-50-80	16 °C/W	Surface Mount	5000 K	100 mA	1208 (3020 Metric)	Cool White	0.079 in	0.118 "	2 mm	3 mm	120 °	120 mA	80	0.52 mm	0.02 in	135 lm/W	9.5 V	128 lm	3020
Luminus Devices Inc. MP-3020-3100-50-70	16 °C/W	Surface Mount	5000 K	100 mA	1208 (3020 Metric)	Cool White	0.079 in	0.118 "	2 mm	3 mm	120 °	120 mA	70	0.52 mm	0.02 in	145 lm/W	9.5 V	138 lm	3020
Luminus Devices Inc. MP-3020-3100-35-90	16 °C/W	Surface Mount	3500 K	100 mA	1208 (3020 Metric)	Warm White	0.079 in	0.118 "	2 mm	3 mm	120 °	120 mA	90	0.52 mm	0.02 in	121 lm/W	9.5 V	115 lm	3020
Luminus Devices Inc. MP-3020-3100-40-90	16 °C/W	Surface Mount	4000 K	100 mA	1208 (3020 Metric)	Neutral White	0.079 in	0.118 "	2 mm	3 mm	120 °	120 mA	90	0.52 mm	0.02 in	122 lm/W	9.5 V	116 lm	3020
Luminus Devices Inc. MP-3020-2100-40-90	23 °C/W	Surface Mount	4000 K	120 mA	1208 (3020 Metric)	Neutral White	0.079 in	0.118 "	2 mm	3 mm	110 °	120 mA	90	0.52 mm	0.02 in	94 lm/W	6.3 V	95 lm	3020
Luminus Devices Inc. MP-3020-2100-65-70	23 °C/W	Surface Mount	6500 K	120 mA	1208 (3020 Metric)	Cool White	0.079 in	0.118 "	2 mm	3 mm	110 °	120 mA	70	0.52 mm	0.02 in	110 lm/W	6.1 V	90 lm	3020
Luminus Devices Inc. MP-3020-3100-30-90	16 °C/W	Surface Mount	3000 K	100 mA	1208 (3020 Metric)	Warm White	0.079 in	0.118 "	2 mm	3 mm	120 °	120 mA	90	0.52 mm	0.02 in	119 lm/W	9.5 V	113 lm	3020
Luminus Devices Inc. MP-3020-2100-40-80	23 °C/W	Surface Mount	4000 K	120 mA	1208 (3020 Metric)	Neutral White	0.079 in	0.118 "	2 mm	3 mm	110 °	120 mA	80	0.52 mm	0.02 in	114 lm/W	6.3 V	86 lm	3020
Luminus Devices Inc. MP-3020-2100-57-80	23 °C/W	Surface Mount	5700 K	120 mA	1208 (3020 Metric)	Cool White	0.079 in	0.118 "	2 mm	3 mm	110 °	120 mA	80	0.52 mm	0.02 in	85 lm/W	6.3 V	86 lm	3020
