3230 Series

Catalog

CONN RING CIRC 10-12AWG #10

Part	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness	Thickness	Length - Overall	Length - Overall	Features	Termination	Mounting Type	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Contact Finish	Contact Material	Stud/Tab Size	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [custom]	Width - Outer Edges [custom]	Length - Overall [x]	Length - Overall [x]

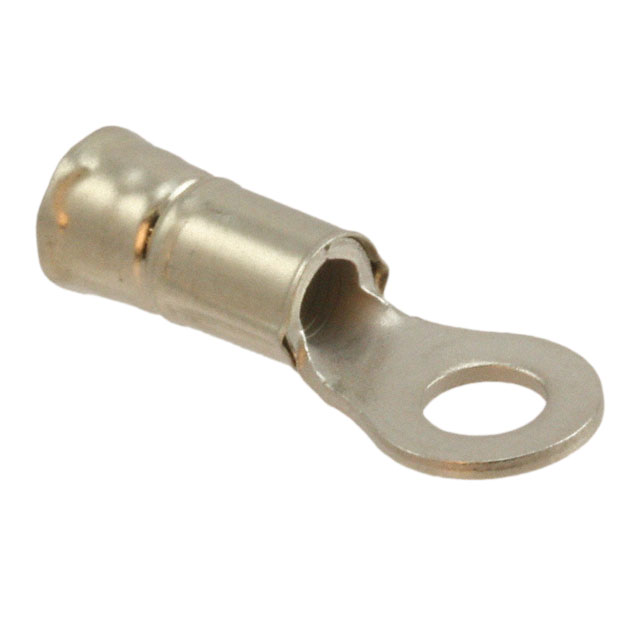

TE Connectivity Raychem Cable Protection 323068	Non-Insulated	0.375 in	9.53 mm	0.99 mm	0.039 in	26.26 mm	1.034 in	Serrated Termination	Crimp	Free Hanging (In-Line)	0.15 "	3.81 mm	0.23 in	5.84 mm	Nickel	Copper	10 Stud	Circular	12 AWG	10 AWG
TE Connectivity Raychem Cable Protection 323066	Non-Insulated	0.375 in	9.53 mm	1.02 mm	0.04 in	26.26 mm	1.034 in	Serrated Termination	Crimp	Free Hanging (In-Line)	0.15 "	3.81 mm	0.23 in	5.84 mm	Nickel	Copper	6 Stud	Circular	12 AWG	10 AWG
TE Connectivity Raychem Cable Protection 323064	Non-Insulated			0.99 mm	0.039 in			Brazed Seam Serrated Termination	Crimp	Free Hanging (In-Line)					Nickel	Copper	0.3125 Stud	Circular	12 AWG	10 AWG	13.49 mm	0.531 "	25.5 mm	1.004 "
