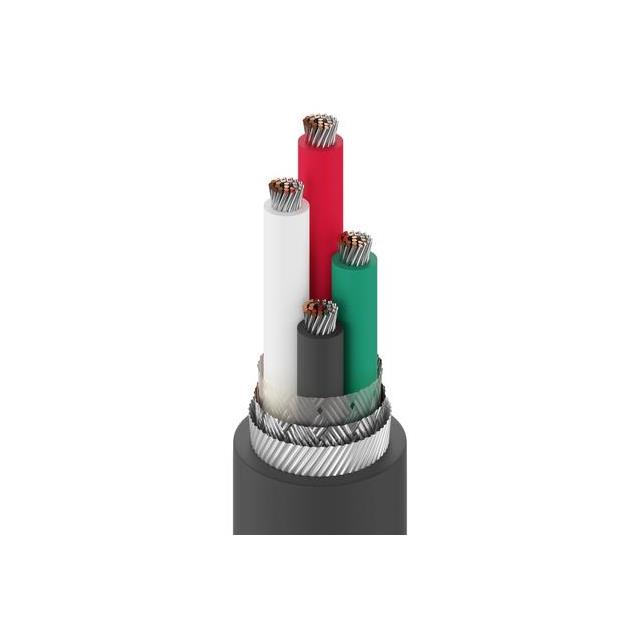

8424 Series

Catalog

4 #20 EPDM BRD EPDM

Part	Shield Coverage	Shield Material	Length	Length	Jacket (Insulation) Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Conductor Material	Wire Gauge	Conductor Insulation	Cable Type	Length [x]	Length [x]
Belden Inc. 8424 0101000	85 %	Copper Tinned Viscose	304.8 m	1000 ft	Ethylene Propylene Terpolymer Rubber (EPDM)	Audio	0.294 in	7.47 mm	26	34 AWG	600 V	Double Braid	0.036 in	0.914 mm	Black	90 °C	-50 °C	4	Copper Tinned	20 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	Microphone
Belden Inc. 8424 010250	85 %	Copper Tinned Viscose	76.2 m	250 ft	Ethylene Propylene Terpolymer Rubber (EPDM)	Audio	0.294 in	7.47 mm	26	34 AWG	600 V	Double Braid	0.036 in	0.914 mm	Black	90 °C	-50 °C	4	Copper Tinned	20 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	Microphone
Belden Inc. 8424 010100	85 %	Copper Tinned Viscose			Ethylene Propylene Terpolymer Rubber (EPDM)	Audio	0.294 in	7.47 mm	26	34 AWG	600 V	Double Braid	0.036 in	0.914 mm	Black	90 °C	-50 °C	4	Copper Tinned	20 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	Microphone	100 ft	30.5 m
