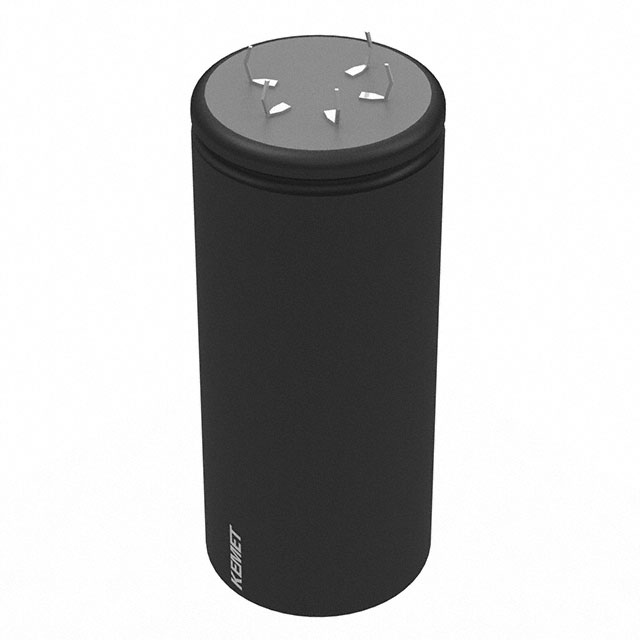

ALC70H Series

Manufacturer: KEMET

Catalog

CAP ALUM 110000UF 20% 40V SNAP

Part	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Applications	Capacitance	Mounting Type	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Polarization	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	ESR (Equivalent Series Resistance)	Tolerance	Package / Case
KEMET ALC70H114FP040	25 mm	0.984 in	18000 Hrs	General Purpose	110000 µF	Through Hole	9 mOhms	4.213 in	107 mm	Polar	17.87 A	19.84 A	45 mm	1.772 "	85 °C	-40 C	40 V	10 mOhm	20 %	Radial Can - Snap-In - 5 Lead
KEMET ALC70H222KP500	25 mm	0.984 in	18000 Hrs	General Purpose	2200 µF	Through Hole	81 mOhms	4.213 in	107 mm	Polar	7.53 A	13.2 A	50 mm	1.969 in	85 °C	-40 C	500 V	108 mOhm	20 %	Radial Can - Snap-In - 5 Lead
KEMET ALC70H132FP550	25 mm	0.984 in	18000 Hrs	General Purpose	1300 µF	Through Hole	273 mOhms	4.213 in	107 mm	Polar	5.12 A	7.94 A	45 mm	1.772 "	85 °C	-40 C	550 V	316 mOhm	20 %	Radial Can - Snap-In - 5 Lead
KEMET ALC70H162FP500	25 mm	0.984 in	18000 Hrs	General Purpose	1600 µF	Through Hole	107 mOhms	4.213 in	107 mm	Polar	6.09 A	11.29 A	45 mm	1.772 "	85 °C	-40 C	500 V	144 mOhm	20 %	Radial Can - Snap-In - 5 Lead
KEMET ALC70H752FP200	25 mm	0.984 in	18000 Hrs	General Purpose	7500 µF	Through Hole	22 mOhms	4.213 in	107 mm	Polar	10.2 A	15.97 A	45 mm	1.772 "	85 °C	-40 C	200 VDC	34 mOhm	20 %	Radial Can - Snap-In - 5 Lead
KEMET ALC70H682KP250	25 mm	0.984 in	18000 Hrs	General Purpose	6800 µF	Through Hole	20 mOhms	4.213 in	107 mm	Polar	10.63 A	16.84 A	50 mm	1.969 in	85 °C	-40 C	250 V	32 mOhm	20 %	Radial Can - Snap-In - 5 Lead
KEMET ALC70H362KP400	25 mm	0.984 in	18000 Hrs	General Purpose	3600 µF	Through Hole	25 mOhms	4.213 in	107 mm	Polar	8.98 A	16.52 A	50 mm	1.969 in	85 °C	-40 C	400 V	43 mOhm	20 %	Radial Can - Snap-In - 5 Lead
KEMET ALC70H303KP100	25 mm	0.984 in	18000 Hrs	General Purpose	30000 µF	Through Hole	12 mOhms	4.213 in	107 mm	Polar	16.07 A	18.16 A	50 mm	1.969 in	85 °C	-40 C	100 V	14 mOhm	20 %	Radial Can - Snap-In - 5 Lead
KEMET ALC70H272FP400	25 mm	0.984 in	18000 Hrs	General Purpose	2700 µF	Through Hole	30 mOhms	4.213 in	107 mm	Polar	7.49 A	15.09 A	45 mm	1.772 "	85 °C	-40 C	400 V	55 mOhm	20 %	Radial Can - Snap-In - 5 Lead
KEMET ALC70H332FP350	25 mm	0.984 in	18000 Hrs	General Purpose	3.3 mF	Through Hole	26 mOhms	4.213 in	107 mm	Polar	8.14 A	15.8 A	45 mm	1.772 "	85 °C	-40 C	350 V	47 mOhm	20 %	Radial Can - Snap-In - 5 Lead
