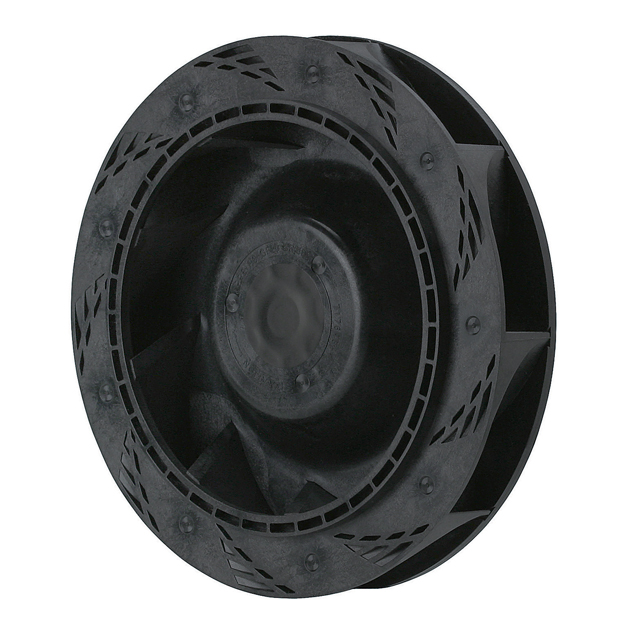

9W1T Type Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K
BLOWERS & CENTRIFUGAL FANS CENTRIFUGAL, 150X35MM, 48VDC, SPLASHPROOF, RIBLESS, TACH/PWM/IP54, NEED 109-1081
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Current Rating (Amps) | Material - Frame | Fan Type | Size / Dimension | Size / Dimension [diameter] | Air Flow | Air Flow | RPM | Voltage - Rated | Static Pressure | Static Pressure | Ingress Protection | Features | Weight [custom] | Weight [custom] | Power (Watts) | Bearing Type | Width | Termination | Approval Agency | Noise | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Plastic | 55.2 VDC | 36 VDC | Varies Based on Temperature | 320 mA | Aluminum | Motorized Impellers | Round | 150 mm | 135 CFM | 3.78 mł/min | 3800 RPM | 48 VDC | 393.1 Pa | 1.578 in H2O | IP54 - Dust Protected Water Resistant | PWM Control Speed Sensor (Tach) | 0.728 lb | 330.22 g | 15.4 W | Ball | 35 mm | 4 Wire Leads | CSA TUV UL | 59 dB(A) | -20 ░C | 70 °C |
