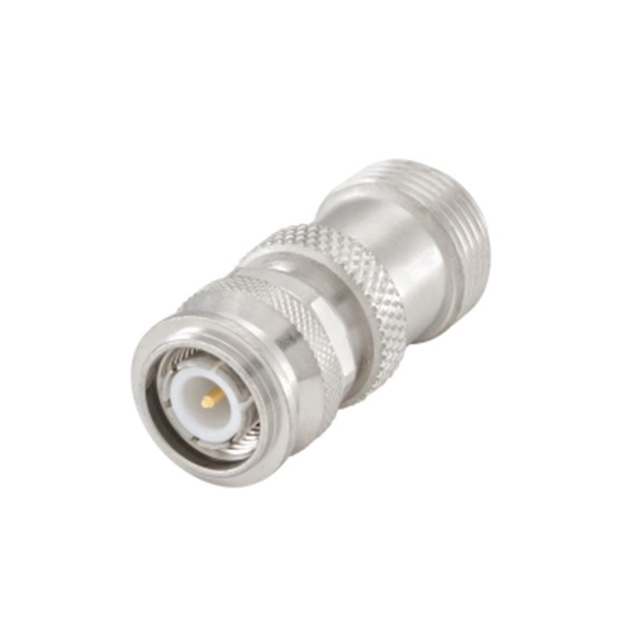

56S153 Series
Manufacturer: Rosenberger
Beta
⌘K
RF ADAPTERS - BETWEEN SERIES ADAPTOR
| Part | Dielectric Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Body Finish | Body Material | Impedance | Mounting Type | Adapter Type | Frequency - Max [Max] | Adapter Series | Convert To (Adapter End) | Conversion Type | Center Contact Plating | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | 500 | 155 C | -55 C | Beryllium Copper | White Bronze | Brass | 50 Ohms | Free Hanging (In-Line) | Plug to Jack | 10 GHz | N to TNC | N Jack Female Socket | Between Series | Gold | Straight |
