BMD-380 Series
Manufacturer: u-blox
Beta
⌘K

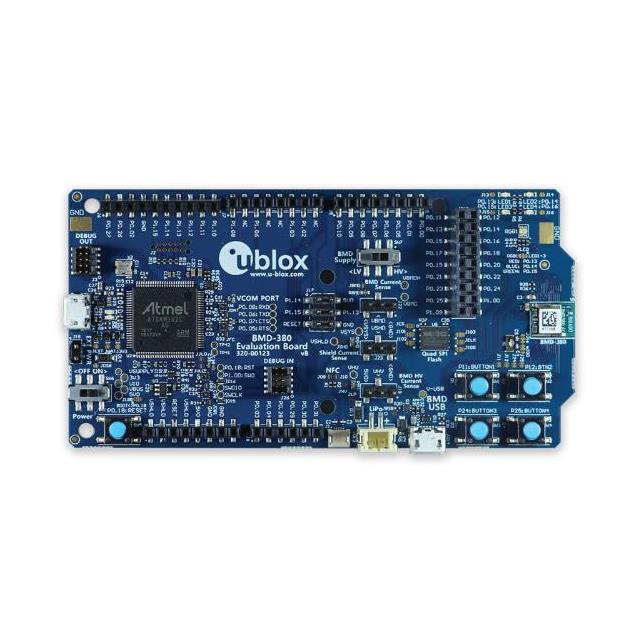

EVAL BOARD BMD-380 NRF52840
| Part | Supplied Contents | For Use With/Related Products | Type | Contents | Utilized IC / Part | Memory Size | Modulation | Operating Temperature [Max] | Operating Temperature [Min] | Antenna Type | RF Family/Standard | Current - Transmitting [Min] | Current - Transmitting [Max] | Sensitivity | Voltage - Supply [Min] | Voltage - Supply [Max] | Protocol | Frequency [Max] | Frequency [Min] | Data Rate | Current - Receiving [Min] | Current - Receiving [Max] | Serial Interfaces | Mounting Type | Package / Case | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 u-blox | Board(s) | BMD-380 nRF52840 | 802.15.4 (Thread Zigbee®) Bluetooth® 5.x (BLE) Transceiver | Board(s) | BMD-380 nRF52840 | |||||||||||||||||||||

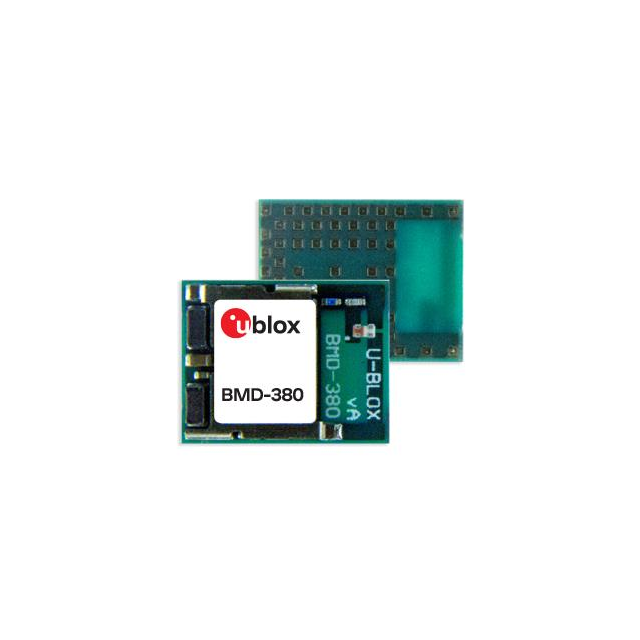

 u-blox | nRF52840 | 1 MB 256 kB | GFSK QPSK | 85 C | -40 ¯C | Chip Integrated | 802.15.4 Bluetooth | 4.8 mA | 32.7 mA | -96 dBm | 1.7 V | 3.6 V | Bluetooth v5.1 Thread Zigbee® | 2.5 GHz | 2.36 GHz | 2 MBd | 4.6 mA | 9.9 mA | ADC GPIO I2C I2S PDM PWM SPI UART USB | Surface Mount | 63-SMD Module | 8 dBm |
