ELD207 Series

Catalog

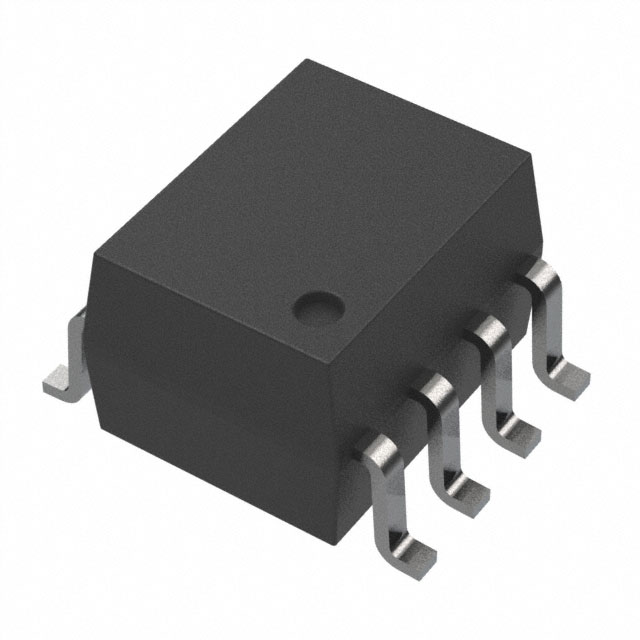

OPTOISO 3.75KV 2CH TRANS 8-SOP

Part	Vce Saturation (Max) [Max]	Output Type	Current Transfer Ratio (Max) [Max]	Supplier Device Package	Package / Case	Package / Case	Package / Case	Input Type	Voltage - Isolation	Turn On / Turn Off Time (Typ)	Number of Channels	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min) [Min]	Mounting Type	Rise / Fall Time (Typ)
Everlight Electronics Co Ltd ELD207(TB)-V	400 mV	Transistor	200 %	8-SOP	0.154 in	8-SOIC	3.9 mm	DC	3750 Vrms	4 µs 5 µs	2	-55 C	110 °C	60 mA	100 %	Surface Mount	1.6 µs 2.2 µs
Everlight Electronics Co Ltd ELD207-V	400 mV	Transistor	200 %	8-SOP	0.154 in	8-SOIC	3.9 mm	DC	3750 Vrms	4 µs 5 µs	2	-55 C	110 °C	60 mA	100 %	Surface Mount	1.6 µs 2.2 µs
Everlight Electronics Co Ltd ELD207(TA)-V	400 mV	Transistor	200 %	8-SOP	0.154 in	8-SOIC	3.9 mm	DC	3750 Vrms	4 µs 5 µs	2	-55 C	110 °C	60 mA	100 %	Surface Mount	1.6 µs 2.2 µs
Everlight Electronics Co Ltd ELD207(TB)	400 mV	Transistor	200 %	8-SOP	0.154 in	8-SOIC	3.9 mm	DC	3750 Vrms	4 µs 5 µs	2	-55 C	110 °C	60 mA	100 %	Surface Mount	1.6 µs 2.2 µs
Everlight Electronics Co Ltd ELD207(TA)	400 mV	Transistor	200 %	8-SOP	0.154 in	8-SOIC	3.9 mm	DC	3750 Vrms	4 µs 5 µs	2	-55 C	110 °C	60 mA	100 %	Surface Mount	1.6 µs 2.2 µs
