9HV1248 Series

Catalog

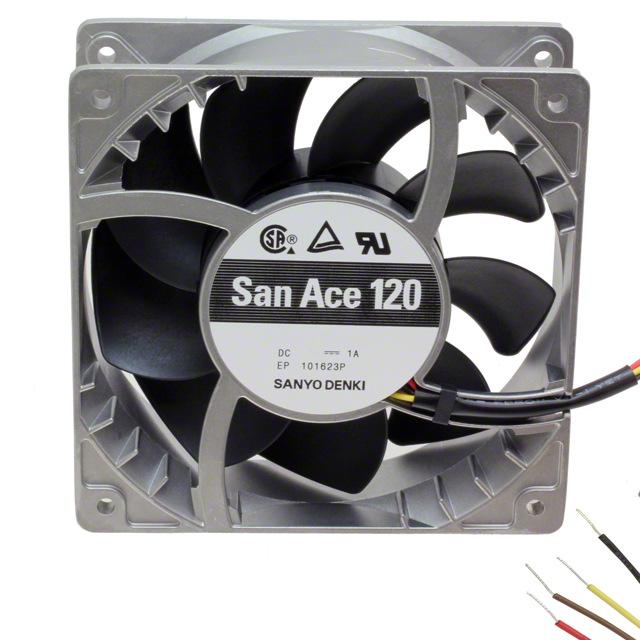

FAN AXIAL 119X38MM 48VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Noise	Features	Fan Type	Power (Watts)	Weight	Weight	Bearing Type	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	RPM	Static Pressure	Static Pressure	Width [y]	Termination	Lifetime @ Temp.	Size / Dimension [z]
Sanyo Denki America Inc. 9HV1248P1H001	36 VDC	60 V	Plastic	1.4 A	Aluminum	40000 Hrs	Square	119 mm	119 mm	CSA TUV UL	72 dB(A)	PWM Control Speed Sensor (Tach)	Tubeaxial	67 W	1 lbs	453.6 g	Ball	48 VDC	-20 ░C	70 °C	7.11 m³/min	254 CFM	10000 RPM	1051.1 Pa	4.22 in H2O	38 mm	4 Wire Leads
Sanyo Denki America Inc. 9HV1248H1002	36 VDC	60 V	Plastic	1.4 A	Aluminum			120 mm		CSA TUV UL	72 dB(A)		Tubeaxial	67 W	1.1 lbs	499 g	Ball	48 VDC	-20 ░C	70 °C	7.11 m³/min	254 CFM	10000 RPM	1051.1 Pa	4.22 in H2O	38 mm	2 Wire Leads	Varies Based on Temperature	120 mm
Sanyo Denki America Inc. 9HV1248H1001	36 VDC	60 V	Plastic	1.4 A	Aluminum			120 mm		CSA TUV UL	72 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	67 W	1.1 lbs	499 g	Ball	48 VDC	-20 ░C	70 °C	7.11 m³/min	254 CFM	10000 RPM	1051.1 Pa	4.22 in H2O	38 mm	3 Wire Leads	Varies Based on Temperature	120 mm
