D4A Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION DPDT 5A 125V
| Part | Release Force | Electrical Life | Ingress Protection | Overtravel [custom] | Overtravel [custom] | Operating Position | Operating Position | Circuit | Termination Style | Switch Function | Voltage Rating - AC | Current Rating (Amps) | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actuator Type | Differential Travel | Differential Travel | Operating Force | Pretravel | Pretravel | Overtravel | Mechanical Life | Features | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

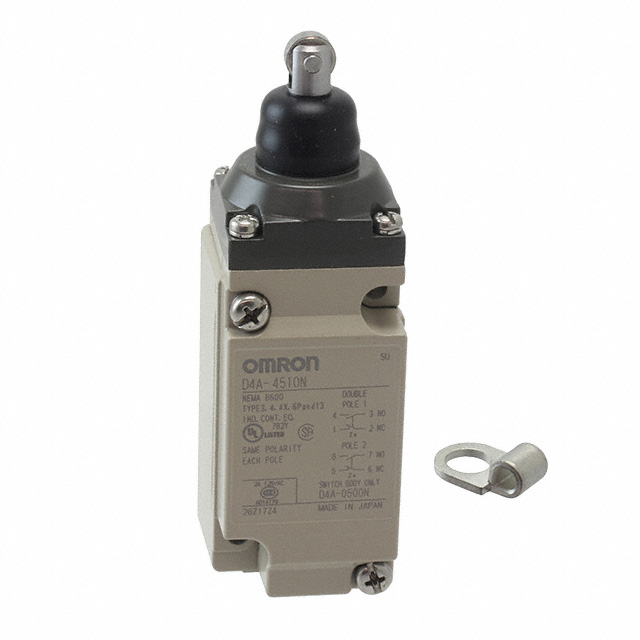

 Omron Automation and Safety | 500 gf | 750000 Cycles | IP67 - Dust Tight Waterproof | 0.201 " | 5.1 mm | 56 mm | 2.205 in | DPDT (DB/DM) | Screw Terminal | On-Mom | 125 V | 3 A 5 A | 30 V | -20 ░C | 100 °C | Chassis Mount | Roller Plunger | 1 mm | 0.04 in | 1800 gf | 0.063 in | 1.6 mm | |||||
 Omron Automation and Safety | |||||||||||||||||||||||||||

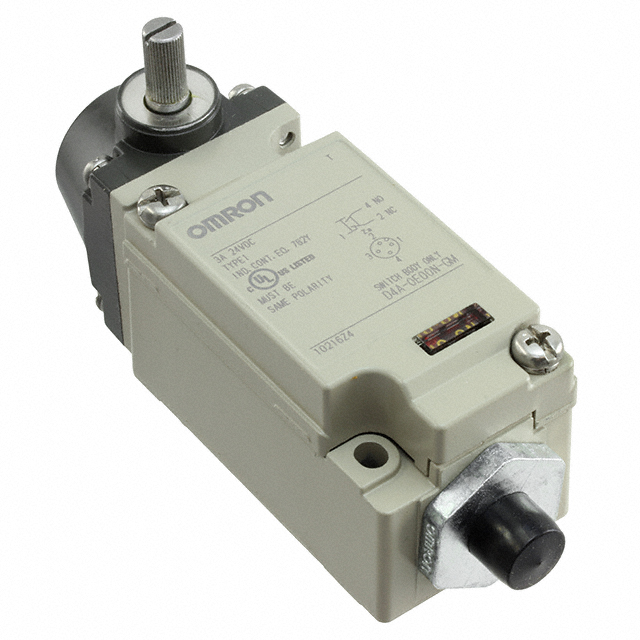

 Omron Automation and Safety | 1000000 Cycles | IP67 - Dust Tight Waterproof | SPDT (DB/DM) | Screw Terminal | On-On | 125 V | 6 A 10 A | 30 V | -10 °C | 80 °C | Chassis Mount | Side Rotary - No Lever | 40 gfm | 65 ° | 20 ° | 50000000 Cycles | Status Indicator | ||||||||||
Omron Automation and Safety | |||||||||||||||||||||||||||

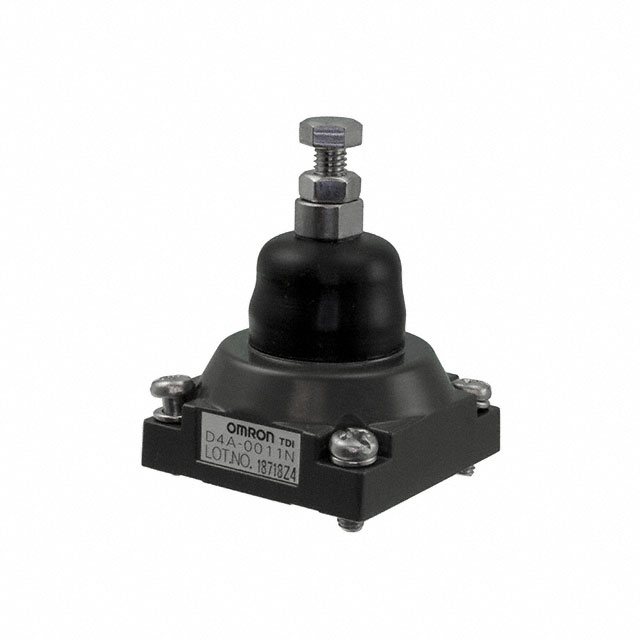

 Omron Automation and Safety | D4A Series | Plunger | |||||||||||||||||||||||||

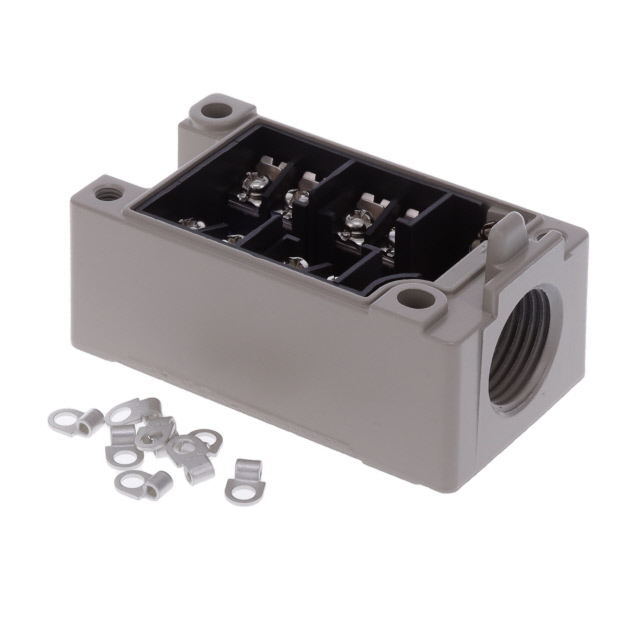

 Omron Automation and Safety | D4A Series | Receptacle Box | |||||||||||||||||||||||||

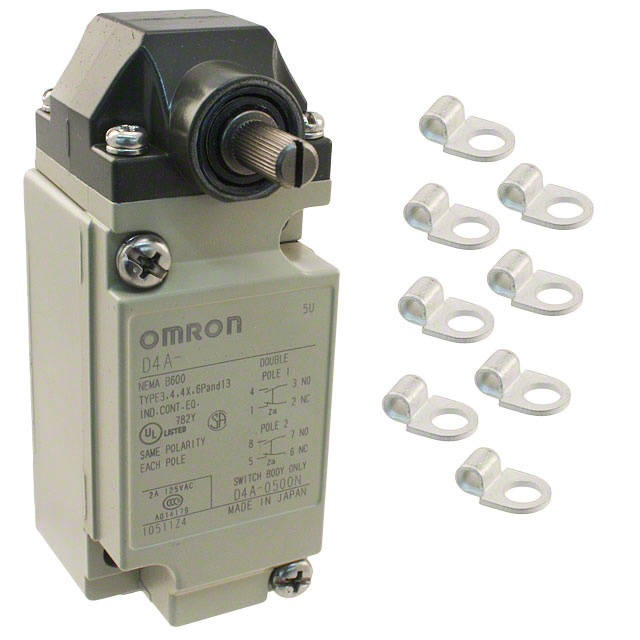

Omron Automation and Safety | 5.103 gfm | 1000000 Cycles | IP67 - Dust Tight Waterproof | 75 ° | SPDT (DB/DM) | Screw Terminal | On-Mom | 125 V | 6 A 10 A | 30 V | -10 °C | 80 °C | Chassis Mount | Side Rotary - No Lever | 4 ° | 40 gfm | 7 ° | 50000000 Cycles | Status Indicator | ||||||||
 Omron Automation and Safety | 5.103 gfm | 750000 Cycles | IP67 - Dust Tight Waterproof | 65 ° | DPDT (DB/DM) | Screw Terminal | On-Mom | 125 V | 3 A 5 A | 30 V | -40 C | 100 °C | Chassis Mount | Side Rotary - No Lever | 6 ° | 40 gfm | 12 ° | 30000000 Cycles | Sequence Action | ||||||||

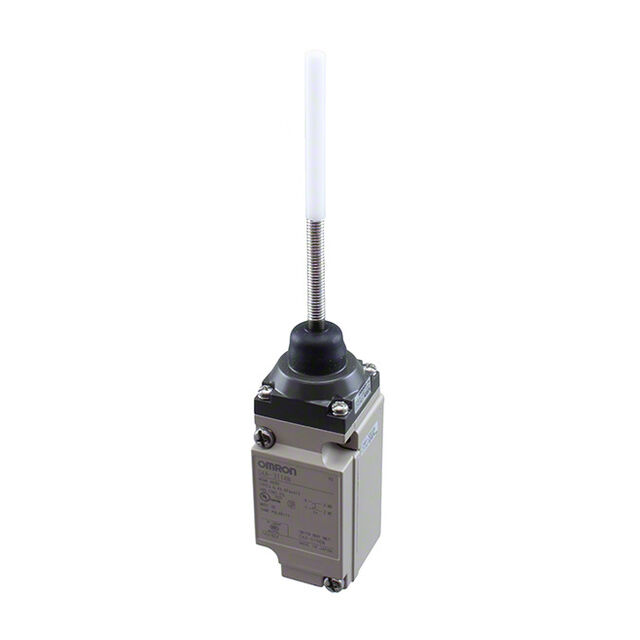

 Omron Automation and Safety | 1000000 Cycles | IP67 - Dust Tight Waterproof | SPDT (DB/DM) | Screw Terminal | On-Mom | 125 V | 6 A 10 A | 30 V | -20 ░C | 100 °C | Chassis Mount | Rod Spring | |||||||||||||||

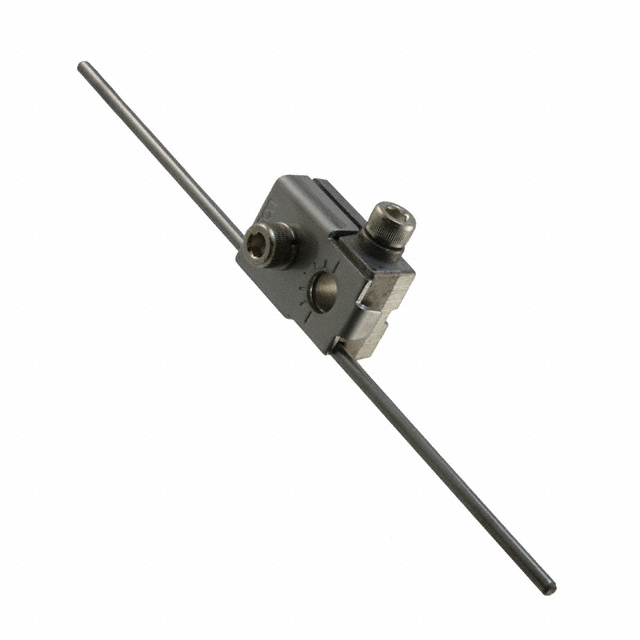

 Omron Automation and Safety | D4A Series | Lever |
