ESD5102 Series

ESD Protection Diode

Catalog

ESD Protection Diode

Part	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp	Power Line Protection	Mounting Type	Type	Bidirectional Channels	Applications	Voltage - Reverse Standoff (Typ)	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]

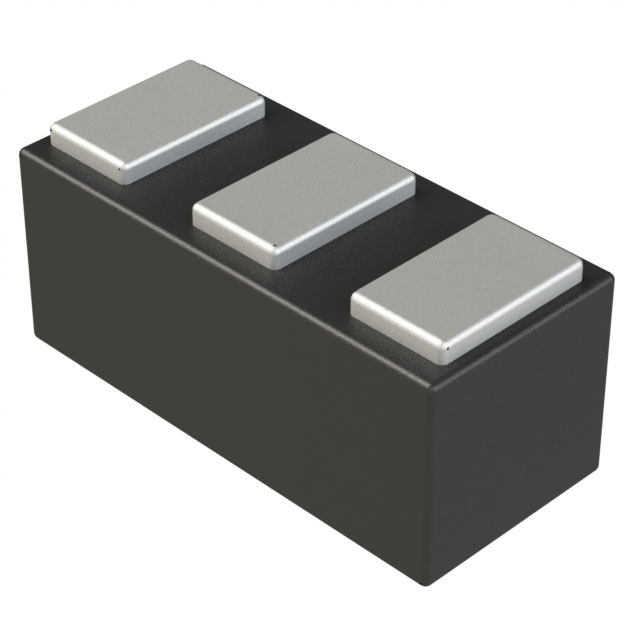

ON Semiconductor ESD5102FCT5G	5.5 pF	6.5 V		Surface Mount	Zener	2	General Purpose	3.3 V	0.73	3-DSN	0.25	3-XFDFN	125 ¯C	-55 °C	3.68 V

Catalog

ESD Protection Diode

Key Features

• Low Clamping Voltage

• Low Leakage

• Fast Response Time

Description

ESD5102 is designed to protect voltage sensitive components from ESD.Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in smartphone, smart-watch, or many other portable/wearable applications where board space comes at a premium.
