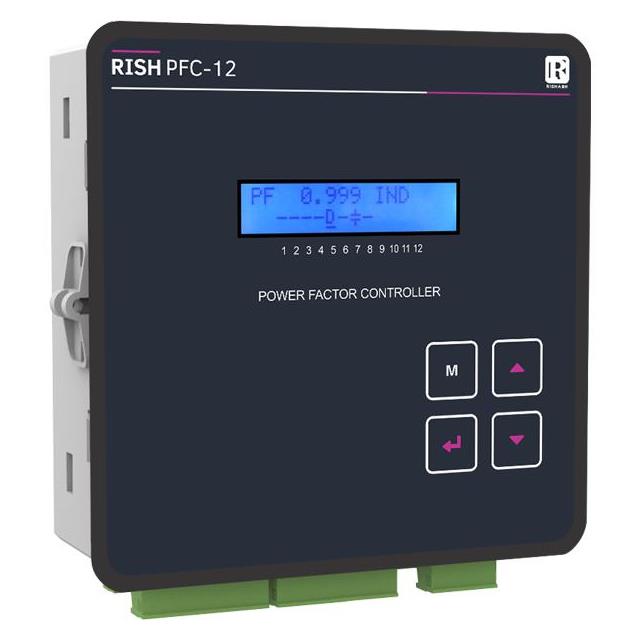

RISH PFC12 Series

Catalog

POWER FACTOR CTRL'R 8 RLY STAGES

Part	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Measuring Range (Voltage) Maximum	Measuring Range (Current) Minimum	Measuring Range (Voltage) Minimum	Measuring Range (Frequency) Minimum	Measuring Range (Frequency) Maximum	Measuring Range (Current) Maximum	Output Type	Relay (Count)	Type	Display Type	Measuring Type	Ingress Protection Description	Ingress Protection IP Rating	Termination Style
Rishabh Instruments RISH PFC12-8-R-RTC	60 °C	-10 °C	DIN Rail	110 VAC	550 VAC	550 VAC	0.003 A	30 VAC	40 Hz	70 Hz	6 A	Relay Serial	8	Energy Monitor	Blue Backlight LCD - Black Characters	Current (3-Phase) Voltage Wattage	Dust Protected Water Resistant	IP55	Screw Terminal
Rishabh Instruments RISH PFC12-12-Z-Z	60 °C	-10 °C	DIN Rail	110 VAC	550 VAC	550 VAC	0.003 A	30 VAC	40 Hz	70 Hz	6 A	Relay	12	Energy Monitor	Blue Backlight LCD - Black Characters	Current (3-Phase) Voltage Wattage	Dust Protected Water Resistant	IP55	Screw Terminal
Rishabh Instruments RISH PFC12-12-R-Z	60 °C	-10 °C	DIN Rail	110 VAC	550 VAC	550 VAC	0.003 A	30 VAC	40 Hz	70 Hz	6 A	Relay	12	Energy Monitor	Blue Backlight LCD - Black Characters	Current (3-Phase) Voltage Wattage	Dust Protected Water Resistant	IP55	Screw Terminal
Rishabh Instruments RISH PFC12-12-R-RTC	60 °C	-10 °C	DIN Rail	110 VAC	550 VAC	550 VAC	0.003 A	30 VAC	40 Hz	70 Hz	6 A	Relay Serial	12	Energy Monitor	Blue Backlight LCD - Black Characters	Current (3-Phase) Voltage Wattage	Dust Protected Water Resistant	IP55	Screw Terminal
Rishabh Instruments RISH PFC12-6-R-Z	60 °C	-10 °C	DIN Rail	110 VAC	550 VAC	550 VAC	0.003 A	30 VAC	40 Hz	70 Hz	6 A	Relay	6	Energy Monitor	Blue Backlight LCD - Black Characters	Current (3-Phase) Voltage Wattage	Dust Protected Water Resistant	IP55	Screw Terminal
Rishabh Instruments RISH PFC12-6-R-RTC	60 °C	-10 °C	DIN Rail	110 VAC	550 VAC	550 VAC	0.003 A	30 VAC	40 Hz	70 Hz	6 A	Relay Serial	6	Energy Monitor	Blue Backlight LCD - Black Characters	Current (3-Phase) Voltage Wattage	Dust Protected Water Resistant	IP55	Screw Terminal
