0.1XS5 Series

Catalog

EXTRA SMALL SERIES +100V, 100MW

Part	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Control Features	Voltage - Input (Min) [Min]	Mounting Type	Applications	Type	Features	Approval Agency	Package / Case

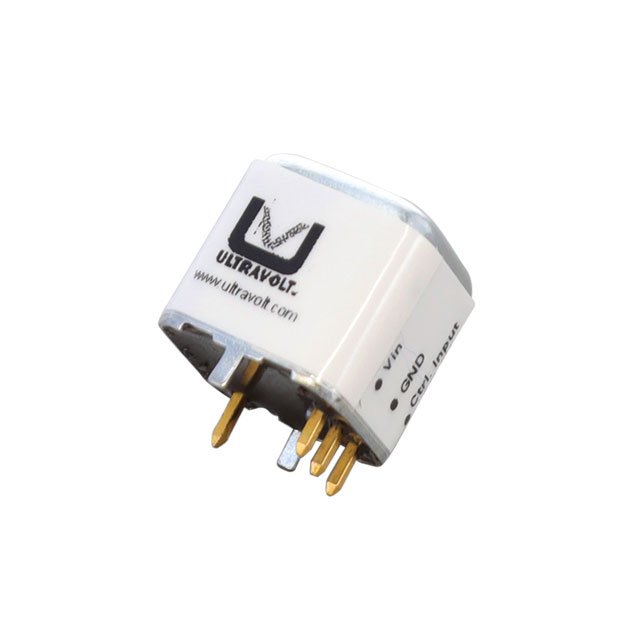

ULTRAVOLT / Advanced Energy 0.1XS5-P0.1	5.5 V	1 mA	0 V	100 V	0.1 W	65 °C	-10 °C	1	11 mm	0.43 in	11 mm	11 mm	0.43 in	0.43 "	Active High Enable	4.5 V	Through Hole	ITE (Commercial)	High Voltage - Non-Isolated Module	Adjustable Output Remote On/Off	CE cURus	4-DIP Module

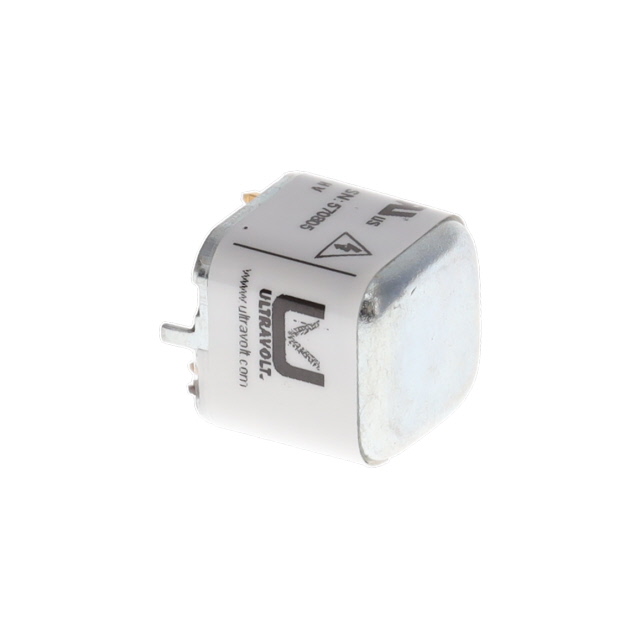

ULTRAVOLT / Advanced Energy 0.1XS5-N0.1	5.5 V	1 mA	0 V	100 V	0.1 W	65 °C	-10 °C	1	11 mm	0.43 in	11 mm	11 mm	0.43 in	0.43 "	Active Low Enable	4.5 V	Through Hole	ITE (Commercial)	High Voltage - Non-Isolated Module	Adjustable Output Remote On/Off	CE cURus	4-DIP Module
