A-HDS 44 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN D-SUB HD PLUG 44P R/A SLDR
| Part | Contact Material | Color | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Type | Connector Style | Shell Size, Connector Layout | Connector Type | Current Rating (Amps) | Backset Spacing | Backset Spacing | Material Flammability Rating | Mounting Type | Number of Rows [custom] | Contact Finish Thickness | Number of Positions | Termination | Contact Finish | Flange Feature | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Copper Alloy | Black | Polybutylene Terephthalate (PBT) Glass Filled | 250 V | -55 C | 105 ░C | Board Lock Grounding Indents | Signal | D-Sub High Density | 3 | Plug Male Pins | 3 A | 8.89 mm | 0.35 in | UL94 V-0 | Panel Mount Right Angle Through Hole | 3 | Flash | 44 | Solder | Gold | 4-40 Mating Side Female Screwlock | |

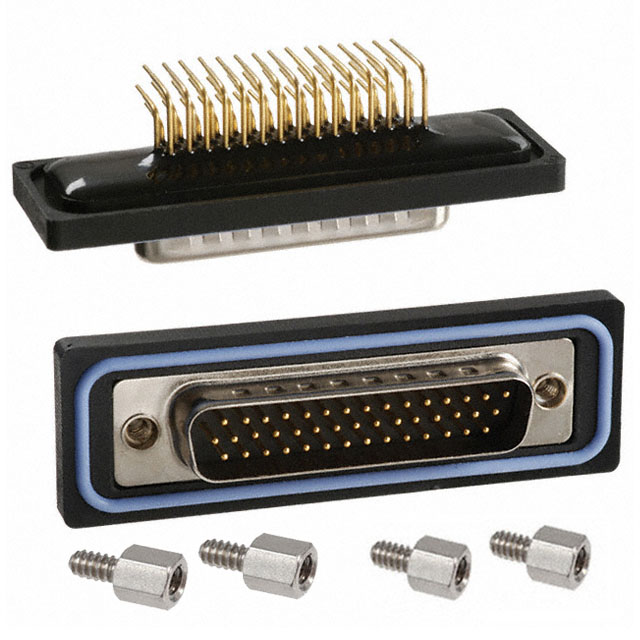

 Assmann WSW Components | Copper Alloy | Black | Glass Filled Nylon Polyamide (PA) | Grounding Indents | Signal | D-Sub High Density | 3 | Plug Male Pins | 4.8 mm | 0.189 in | Panel Mount Right Angle Through Hole | 3 | 44 | Solder | Gold | Female Screwlock Mating Side | IP67 - Dust Tight Waterproof | ||||||

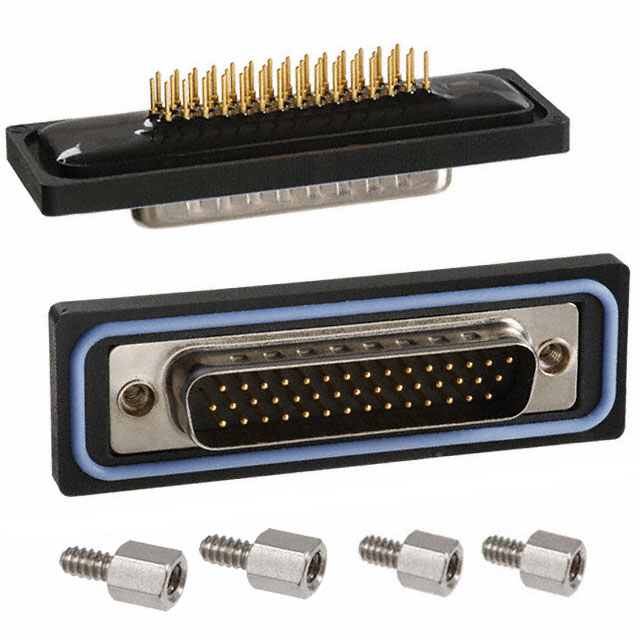

 Assmann WSW Components | Copper Alloy | Black | Glass Filled Nylon Polyamide (PA) | Grounding Indents | Signal | D-Sub High Density | 3 | Plug Male Pins | Panel Mount Through Hole | 3 | 44 | Solder | Gold | Female Screwlock Mating Side | IP67 - Dust Tight Waterproof |
