29-014 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

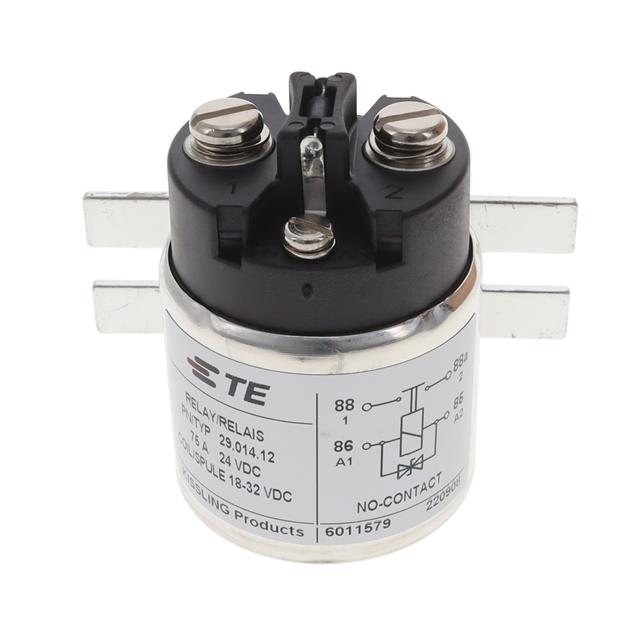

RELAY GEN PURPOSE SPST 75A
| Part | Contact Form | Contact Rating (Current) | Release Time | Load - Max Switching | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Coil Voltage | Mounting Type | Features | Coil Resistance | Must Release Voltage | Contact Material | Coil Type | Relay Type | Termination Style | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | SPST-NO (DM) (1 Form X) | 75 A | 15 ms | 10 W | 18 VDC | 85 °C | -40 °C | 35 ms | 28 VDC | Chassis Mount | Diode | 76 Ohms | 4 VDC | Silver Tin Oxide (AgSnO) | Non Latching | General Purpose | Screw Terminal | 368.4 mA |
