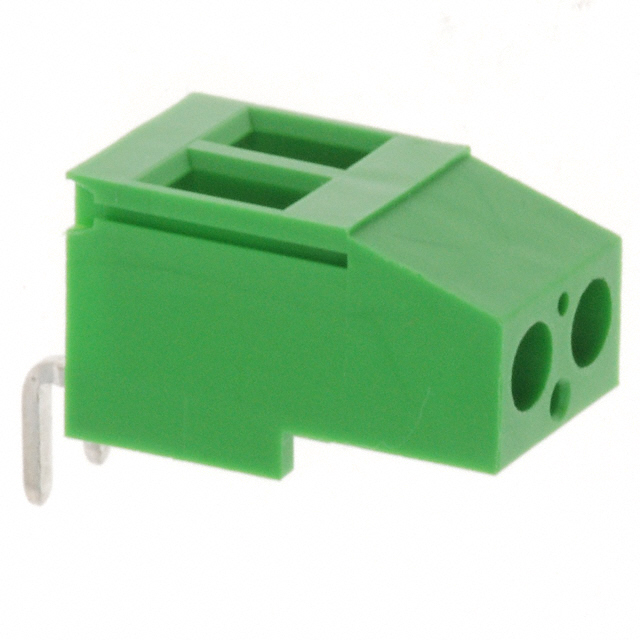

ED705 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 2POS TOP ENTRY 5MM PCB
| Part | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating | Screw Thread | Housing Material | Contact Material - Plating | Mating Orientation | Number of Levels | Color | Wire Termination | Voltage | Positions Per Level | Current | Pitch | Pitch | Wire Gauge [Min] | Wire Gauge [Max] | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 4.4 Lb-In | 0.5 Nm | -30 ░C | 105 ░C | Copper | M3 | Polyamide (PA) Nylon | Brass | Vertical with Board | 1 | Green | Screw - Rising Cage Clamp | 300 VDC | 2 | 15 A | 0.197 in | 5 mm | 14 AWG | 22 AWG | Interlocking (Side) | Through Hole |

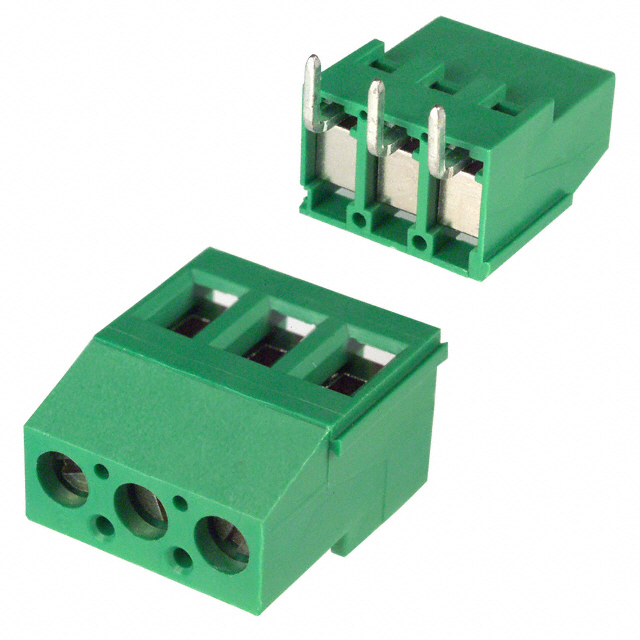

 On Shore Technology Inc. | 4.4 Lb-In | 0.5 Nm | -30 ░C | 105 ░C | Copper | M3 | Polyamide (PA) Nylon | Brass | Vertical with Board | 1 | Green | Screw - Rising Cage Clamp | 300 VDC | 3 | 15 A | 0.197 in | 5 mm | 14 AWG | 22 AWG | Interlocking (Side) | Through Hole |
