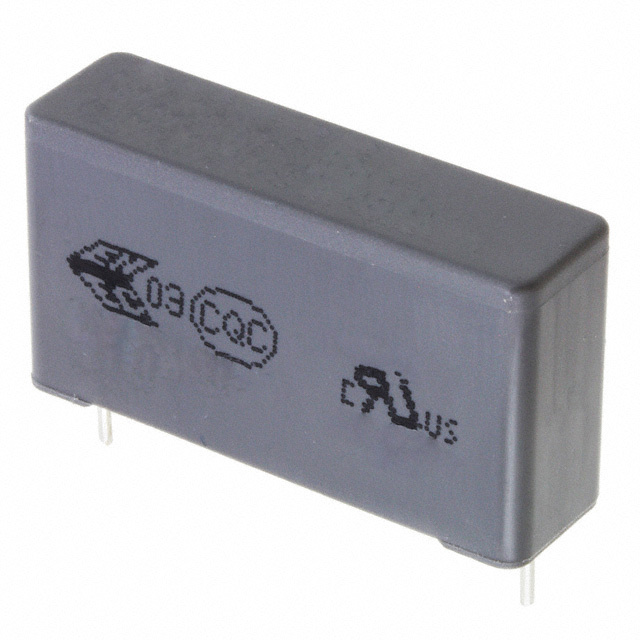

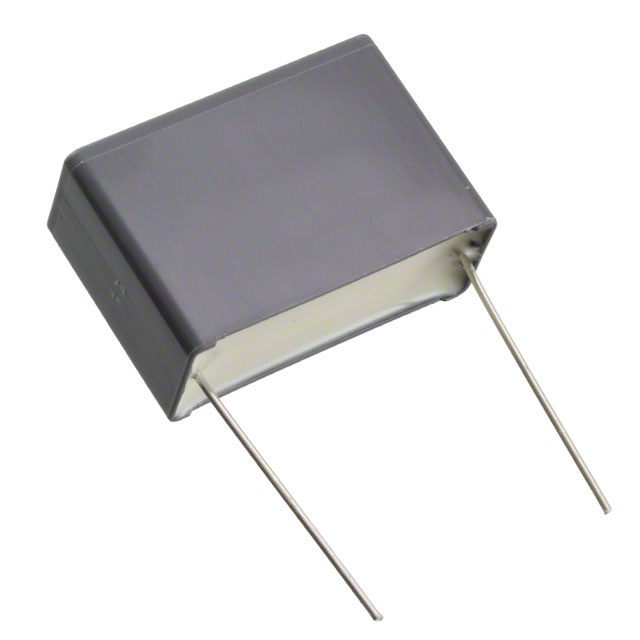

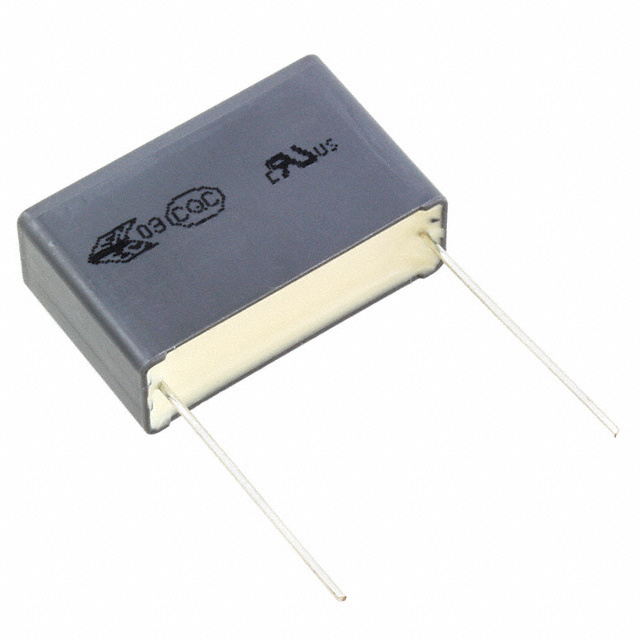

R46KR Series

Manufacturer: KEMET

Catalog

CAP FILM SUPPRESSION X2 0.47UF 560VDC/275VAC PP 20%( 32 X 9 X 17MM) RADIAL PLASTIC RECTANGULAR CAN 27.5MM 110°C BULK

Part	Mounting Type	Package / Case	Lead Spacing	Lead Spacing	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Voltage Rating - AC	Termination	Dielectric Material	Ratings	Capacitance	Height - Seated (Max) [Max]	Size / Dimension [y]	Height - Seated (Max)
KEMET R46KR34700001M	Through Hole	Radial	27.5 mm	1.083 in	EMI RFI Suppression	0.673 in	17.1 mm	-40 C	110 °C	20 %	0.354 in	32 mm	1.26 in	9 mm	560 V	275 V	PC Pins	Polypropylene (PP) Metallized	X2	0.47 µF
KEMET R46KR34704001M	Through Hole	Radial	27.5 mm	1.083 in	EMI RFI Suppression	0.673 in	17.1 mm	-40 C	110 °C	20 %	0.354 in	32 mm	1.26 in	9 mm	560 V	275 V	PC Pins	Polypropylene (PP) Metallized	X2	0.47 µF
KEMET R46KR422050M1M	Through Hole	Radial	27.5 mm	1.083 in	EMI RFI Suppression	28.1 mm		-40 C	110 °C	20 %	0.551 in	32 mm	1.26 in	14 mm	560 V	275 V	PC Pins	Polypropylene (PP) Metallized	X2	2.2 µF	1.106 in
KEMET R46KR415000P0M	Through Hole	Radial	27.5 mm	1.083 in	EMI RFI Suppression			-40 C	110 °C	20 %	0.433 in	32 mm	1.26 in		560 V	275 V	PC Pins	Polypropylene (PP) Metallized	X2	1500 nF		11 mm
KEMET R46KR447000P1M	Through Hole	Radial	27.5 mm	1.083 in	EMI RFI Suppression	28.1 mm		-40 C	110 °C	20 %	0.551 in	32 mm	1.26 in	14 mm	560 V	275 V	PC Pins	Polypropylene (PP) Metallized	X2	4.7 µF	1.106 in
KEMET R46KR3470CK01M	Through Hole	Radial	27.5 mm	1.083 in	EMI RFI Suppression	0.673 in	17.1 mm	-40 C	110 °C	20 %	0.354 in	32 mm	1.26 in	9 mm	560 V	275 V	PC Pins	Polypropylene (PP) Metallized	X2	0.47 µF
KEMET R46KR433050M2K	Through Hole	Radial	27.5 mm	1.083 in	EMI RFI Suppression			-40 C	110 °C	10 %	0.709 in	32 mm	1.26 in	18 mm	560 V	275 V	PC Pins	Polypropylene (PP) Metallized	X2	3.3 µF
KEMET R46KR368050M1K	Through Hole	Radial	27.5 mm	1.083 in	EMI RFI Suppression	0.673 in	17.1 mm	-40 C	110 °C	10 %	0.354 in	32 mm	1.26 in	9 mm	560 V	275 V	PC Pins	Polypropylene (PP) Metallized	X2	0.68 µF
KEMET R46KR422000M2M	Through Hole	Radial	27.5 mm	1.083 in	EMI RFI Suppression			-40 C	110 °C	20 %	0.512 "	32 mm	1.26 in	13 mm	560 V	275 V	PC Pins	Polypropylene (PP) Metallized	X2	2.2 µF	0.988 "		25.1 mm

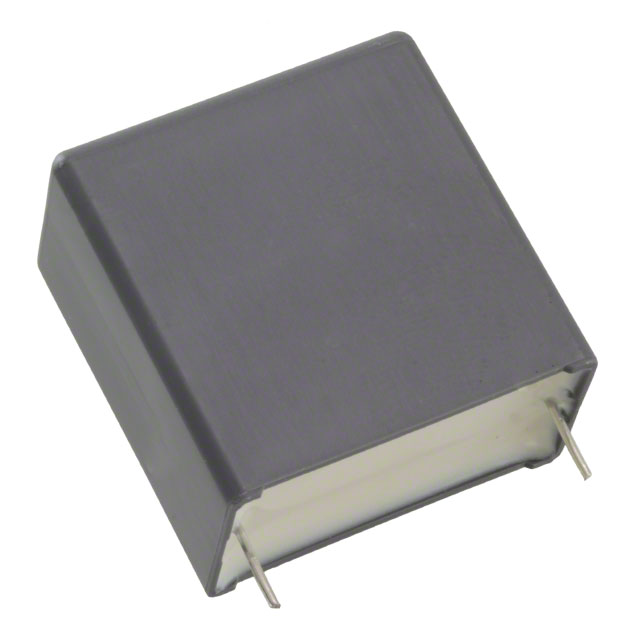

KEMET R46KR433000M2K	Through Hole	Radial	27.5 mm	1.083 in	EMI RFI Suppression			-40 C	110 °C	10 %	0.709 in	32 mm	1.26 in	18 mm	560 V	275 V	PC Pins	Polypropylene (PP) Metallized	X2	3.3 µF
