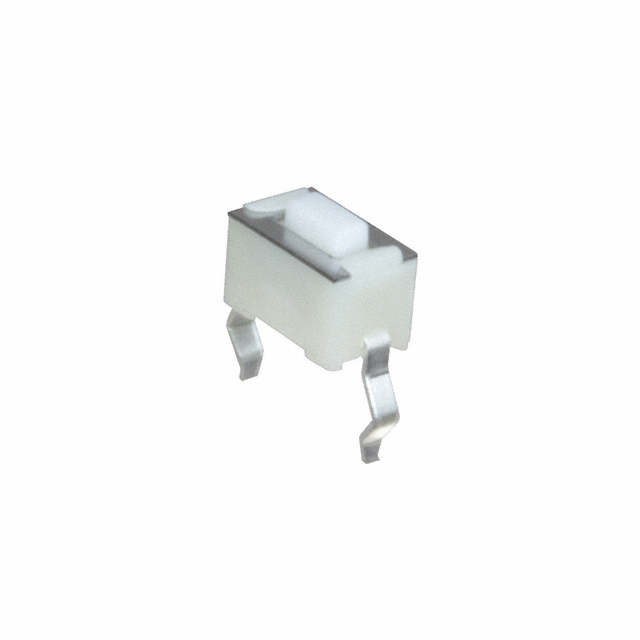

TL1107 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Operating Force	Outline [x]	Outline [y]	Circuit	Switch Function	Features	Contact Rating @ Voltage	Illumination	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Actuator Material	Switch Travel	Mechanical Life
E-Switch TL1107BF180WQ	PC Pin	180 gf	6 mm	3.5 mm	SPST-NO	Off-Mom	Tactile Feedback	0.05 A 12 VDC	Non-Illuminated	Top Actuated	5 mm	Rectangular Button	-20 ░C	70 °C	Through Hole
E-Switch TL1107AF260WQ	PC Pin	260 gf	6 mm	3.5 mm	SPST-NO	Off-Mom	Tactile Feedback	0.05 A 12 VDC	Non-Illuminated	Top Actuated	4.3 mm	Rectangular Button	-20 ░C	70 °C	Through Hole	Polyamide (PA46) Nylon 4/6	0.25 mm	30000 Steps
E-Switch TL1107BF180EQ	PC Pin	180 gf	6 mm	3.5 mm	SPST-NO	Off-Mom	Tactile Feedback	0.05 A 12 VDC	Non-Illuminated	Top Actuated	5 mm	Rectangular Button	-20 ░C	70 °C		Polyamide (PA46) Nylon 4/6	0.25 mm	50000 Cycles

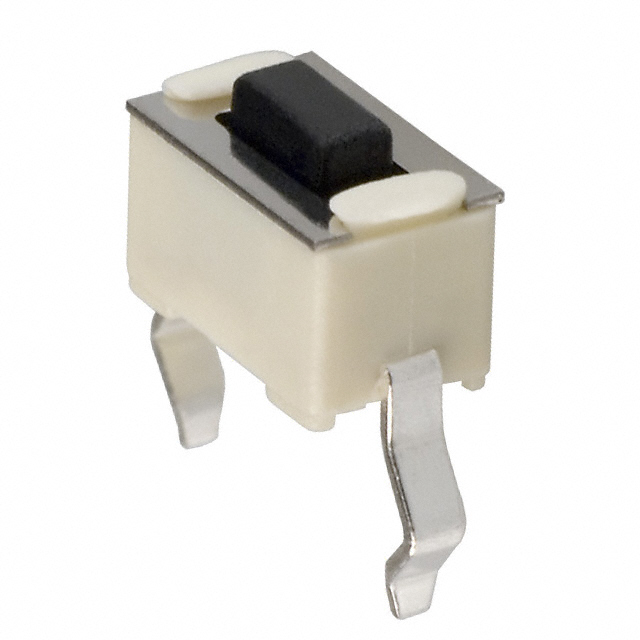

E-Switch TL1107AF130WQ	PC Pin	130 gf	6 mm	3.5 mm	SPST-NO	Off-Mom	Tactile Feedback	0.05 A 12 VDC	Non-Illuminated	Top Actuated	4.3 mm	Rectangular Button	-20 ░C	70 °C	Through Hole	Polyamide (PA46) Nylon 4/6	0.25 mm	40000 Cycles
E-Switch TL1107BF180BQ	PC Pin	180 gf	6 mm	3.5 mm	SPST-NO	Off-Mom	Tactile Feedback	0.05 A 12 VDC	Non-Illuminated	Top Actuated	5 mm	Rectangular Button	-20 ░C	70 °C	Through Hole	Polyamide (PA46) Nylon 4/6	0.25 mm	50000 Cycles
E-Switch TL1107BF260EQ	PC Pin	260 gf	6 mm	3.5 mm	SPST-NO	Off-Mom	Tactile Feedback	0.05 A 12 VDC	Non-Illuminated	Top Actuated	5 mm	Rectangular Button	-20 ░C	70 °C		Polyamide (PA46) Nylon 4/6	0.25 mm	30000 Steps
E-Switch TL1107AF130EQ	PC Pin	130 gf	6 mm	3.5 mm	SPST-NO	Off-Mom	Tactile Feedback	0.05 A 12 VDC	Non-Illuminated	Top Actuated	4.3 mm	Rectangular Button	-20 ░C	70 °C		Polyamide (PA46) Nylon 4/6	0.25 mm	50000 Cycles
E-Switch TL1107AF180WQ	PC Pin	180 gf	6 mm	3.5 mm	SPST-NO	Off-Mom	Tactile Feedback	0.05 A 12 VDC	Non-Illuminated	Top Actuated	4.3 mm	Rectangular Button	-20 ░C	70 °C	Through Hole	Polyamide (PA46) Nylon 4/6	0.25 mm	50000 Cycles
