SDI30 Series

Manufacturer: CUI Inc.

Catalog

AC/DC DESKTOP ADAPTER 15V 30W

Part	Approval Agency	No Load Power Consumption	Standard Number	Input Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Current - Output (Max) [Max]	Input Type	Applications	Form	Cord Length	Cord Length	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Polarization	Power (Watts)	Output Connector [diameter]	Output Connector [x]	Output Connector	Operating Temperature [Max]	Region Utilized	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [z]

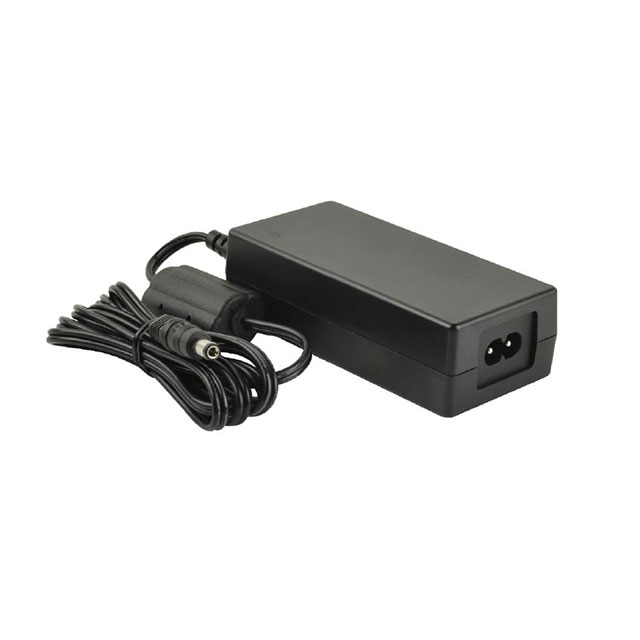

CUI Inc. SDI30-15-UD-P6	CB Scheme CSA EN FCC IEC SIQ TUV UL	75 mW	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	IEC 320-C8	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	2 A	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class II)	60.2 in	1.53 m	15 V	264 VAC	90 VAC	Positive Center	30 Watts	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	International

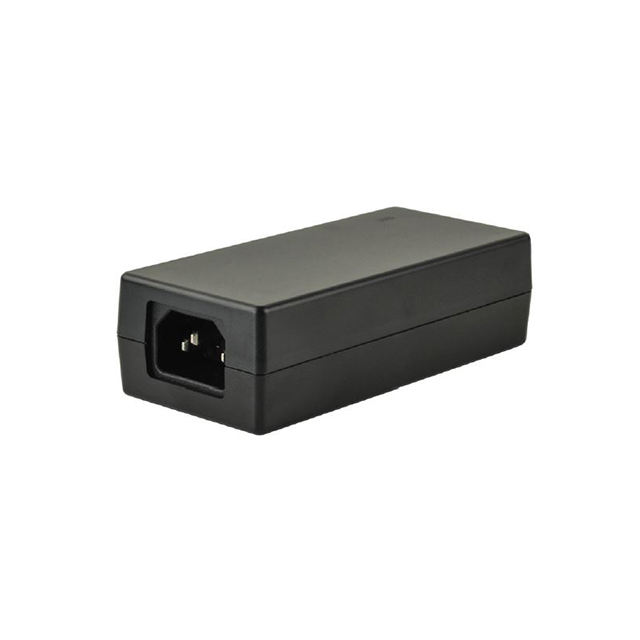

CUI Inc. SDI30-24-U-P6	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	75 mW	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	1.25 A	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class I)	60.2 in	1.53 m	24 V	264 VAC	90 VAC	Positive Center	30 Watts	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	International
CUI Inc. SDI30-12-UD-P6	CB Scheme CSA EN FCC IEC SIQ TUV UL	75 mW	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	IEC 320-C8	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	2.5 A	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class II)	60.2 in	1.53 m	12 V	264 VAC	90 VAC	Positive Center	30 Watts	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	International
CUI Inc. SDI30-24-UD-P5	CB Scheme CSA EN FCC IEC SIQ TUV UL	75 mW	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	IEC 320-C8	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	1.25 A	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class II)	60.2 in	1.53 m	24 V	264 VAC	90 VAC	Positive Center	30 Watts	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	International
CUI Inc. SDI30-19-UC-P6	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	75 mW	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	1.6 A	Cord	ITE (Commercial)	Desktop (Class I)	60.2 in	1.53 m	19 V	264 VAC	90 VAC	Positive Center	30 Watts	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	North America
CUI Inc. SDI30-24-UC-P5	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	75 mW	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	1.25 A	Cord	ITE (Commercial)	Desktop (Class I)	60.2 in	1.53 m	24 V	264 VAC	90 VAC	Positive Center	30 Watts	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	North America
CUI Inc. SDI30-24-U-P5R	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	75 mW	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	1.25 A	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class I)	60.2 in	1.53 m	24 V	264 VAC	90 VAC	Positive Center	30 Watts			Barrel Plug R/A	40 °C	International	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SDI30-12-U-P5	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	75 mW	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	2.5 A	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class I)	60.2 in	1.53 m	12 V	264 VAC	90 VAC	Positive Center	30 Watts	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	International
CUI Inc. SDI30-15-UD-P6R	CB Scheme CSA EN FCC IEC SIQ TUV UL	75 mW	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	IEC 320-C8	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	2 A	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class II)	60.2 in	1.53 m	15 V	264 VAC	90 VAC	Positive Center	30 Watts	2.5 mm 5.5 mm		Barrel Plug R/A	40 °C	International				9.5 mm
CUI Inc. SDI30-12-U2-P5	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	75 mW	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	IEC 320-C14	4.37 in	32.3 mm	52 mm	2.05 in	111 mm	1.27 "	Level VI	2.5 A	Cord	ITE (Commercial)	Desktop (Class I)	60.2 in	1.53 m	12 V	264 VAC	90 VAC	Positive Center	30 Watts	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	40 °C	Europe
