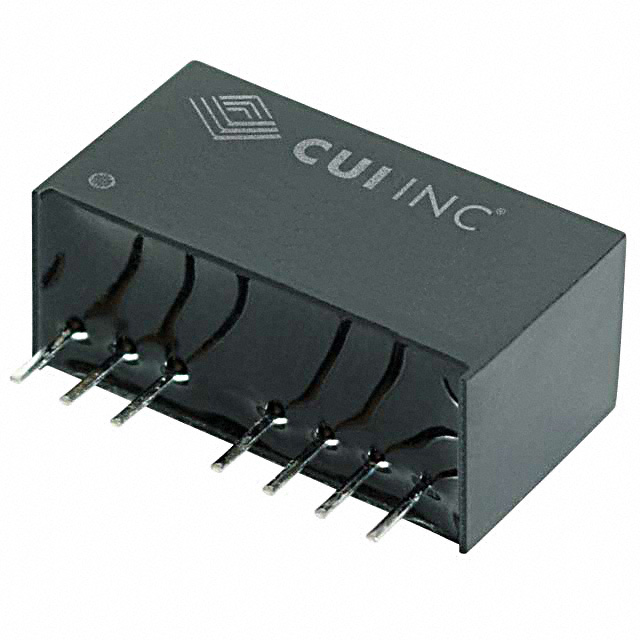

PQMC1 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-12V 1W

Part	Voltage - Input (Max) [Max]	Voltage - Output 1	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 2	Applications	Control Features	Features	Standard Number	Voltage - Isolation	Mounting Type	Approval Agency	Type	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Min]
CUI Inc. PQMC1-D5-D12-S	9 V	12 V	2	41 mA	-12 V	ITE (Commercial)	Active Low Enable	OCP SCP	55024 55032	1.5 kV	Through Hole	EN	Isolated Module	75 %	4.5 V	-40 C	105 ░C	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm
CUI Inc. PQMC1-D12-S15-S	18 V	15 V	1	67 mA		ITE (Commercial)	Active Low Enable	OCP SCP	55024 55032	1.5 kV	Through Hole	EN	Isolated Module	81 %	9 V	-40 C	105 ░C	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm
CUI Inc. PQMC1-D12-D15-S	18 V	15 V	2	33 mA	-15 V	ITE (Commercial)	Active Low Enable	OCP SCP	55024 55032	1.5 kV	Through Hole	EN	Isolated Module	80 %	9 V	-40 C	105 ░C	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	33 mA
CUI Inc. PQMC1-D12-S5-S	18 V	5 V	1	200 mA		ITE (Commercial)	Active Low Enable	OCP SCP	55024 55032	1.5 kV	Through Hole	EN	Isolated Module	76 %	9 V	-40 C	105 ░C	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm
CUI Inc. PQMC1-D12-S12-S	18 V	12 V	1	83 mA		ITE (Commercial)	Active Low Enable	OCP SCP	55024 55032	1.5 kV	Through Hole	EN	Isolated Module	80 %	9 V	-40 C	105 ░C	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm
CUI Inc. PQMC1-D24-D12-S	36 V	12 V	2	41 mA	-12 V	ITE (Commercial)	Active Low Enable	OCP SCP	55024 55032	1.5 kV	Through Hole	EN	Isolated Module	80 %	18 V	-40 C	105 ░C	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm
CUI Inc. PQMC1-D24-D15-S	36 V	15 V	2	33 mA	-15 V	ITE (Commercial)	Active Low Enable	OCP SCP	55024 55032	1.5 kV	Through Hole	EN	Isolated Module	80 %	18 V	-40 C	105 ░C	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	33 mA
CUI Inc. PQMC1-D48-S15-S	75 V	15 V	1	67 mA		ITE (Commercial)	Active Low Enable	OCP SCP	55024 55032	1.5 kV	Through Hole	EN	Isolated Module	81 %	36 V	-40 C	105 ░C	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm
CUI Inc. PQMC1-D12-D12-S	18 V	12 V	2	41 mA	-12 V	ITE (Commercial)	Active Low Enable	OCP SCP	55024 55032	1.5 kV	Through Hole	EN	Isolated Module	80 %	9 V	-40 C	105 ░C	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm
CUI Inc. PQMC1-D24-S5-S	36 V	5 V	1	200 mA		ITE (Commercial)	Active Low Enable	OCP SCP	55024 55032	1.5 kV	Through Hole	EN	Isolated Module	76 %	18 V	-40 C	105 ░C	8-SIP Module 7 Leads	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm
