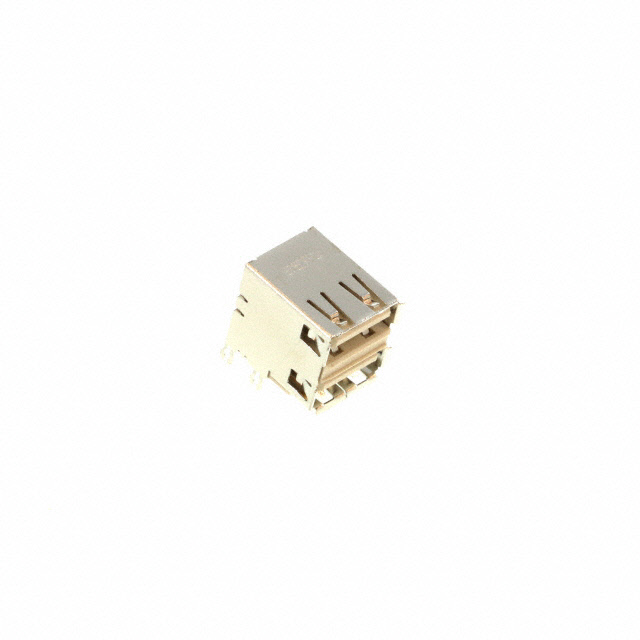

72309 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

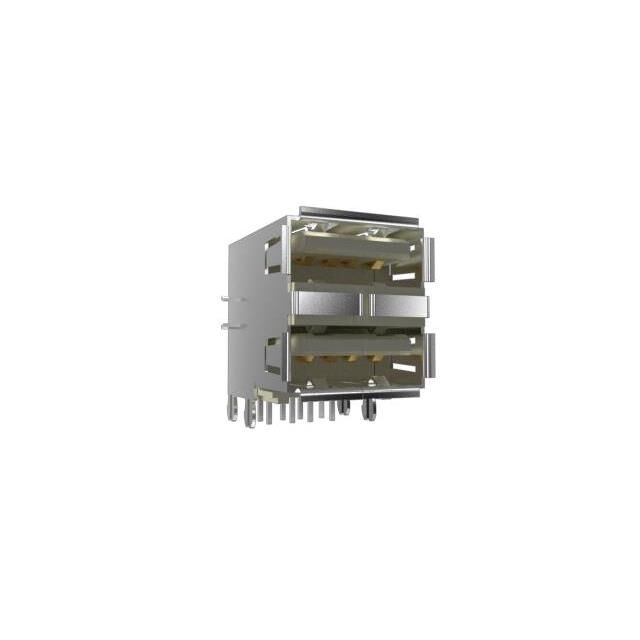

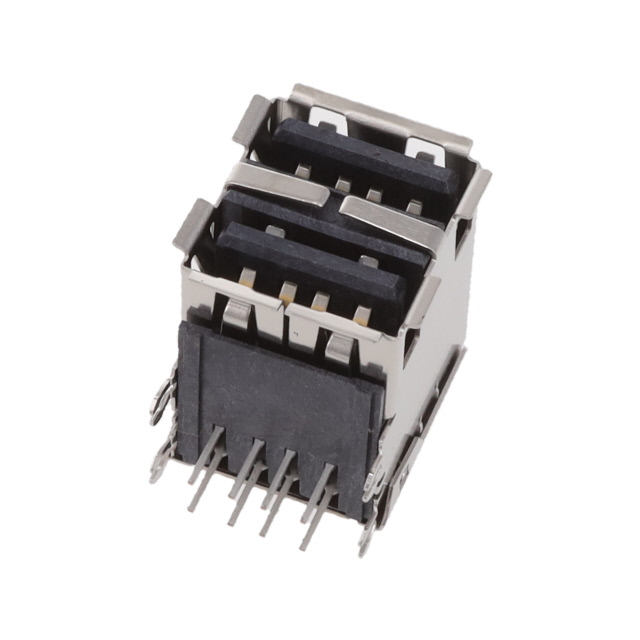

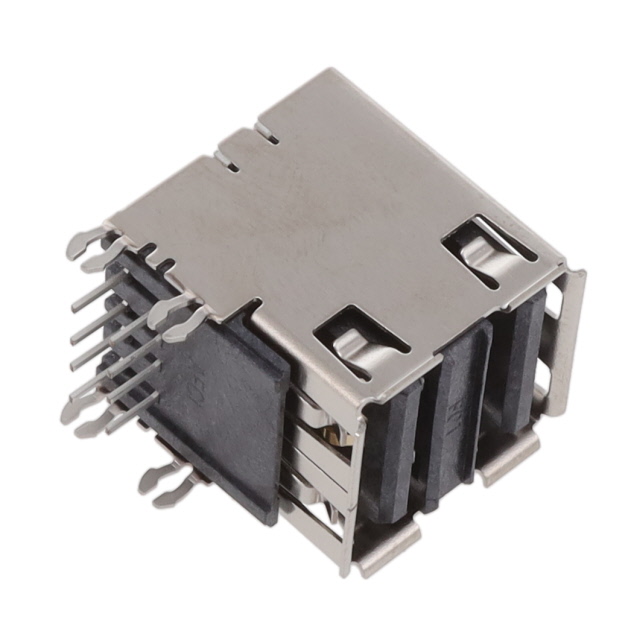

CONN RCPT USB2.0 TYPEA STACK R/A
| Part | Shell/Shielding Material | Mounting Feature | Mounting Type | Connector Type | Contact Finish | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Gender | Current Rating (Amps) | Insulation Color | Material Flammability Rating | Number of Contacts | Mating Cycles | Number of Ports | Specifications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Copper Alloy | Horizontal | Through Hole Right Angle | Stacked USB-A (USB TYPE-A) | Gold | Shielded | 85 °C | -55 °C | Solder | Receptacle | 1.5 A | Black | UL94 V-0 | 8 | 1500 | 2 | USB 2.0 |
Amphenol ICC (FCI) | Copper Alloy | Horizontal | Through Hole Right Angle | Stacked USB-A (USB TYPE-A) | Gold | Shielded | 85 °C | -55 °C | Solder | Receptacle | 1 A 1.5 A 2.5 A 3 A | Black | UL94 V-0 | 8 | 1500 | 1 | |
Amphenol ICC (FCI) | Copper Alloy | Horizontal | Through Hole Right Angle | Stacked USB-A (USB TYPE-A) | Gold GXT™ | Unshielded | 85 °C | -55 °C | Solder | Receptacle | 1.5 A | Black | UL94 V-0 | 8 | 1500 | 2 | USB 2.0 |
Amphenol ICC (FCI) | Copper Alloy | Horizontal | Through Hole Right Angle | Stacked USB-A (USB TYPE-A) | Gold GXT™ | Unshielded | 85 °C | -55 °C | Solder | Receptacle | 1.5 A | Black | UL94 V-0 | 8 | 1500 | 2 | USB 2.0 |
 Amphenol ICC (FCI) | Copper Alloy | Horizontal | Through Hole Right Angle | Stacked USB-A (USB TYPE-A) | Gold | Shielded | 85 °C | -55 °C | Solder | Receptacle | 1 A 1.5 A 2.5 A 3 A | Black | UL94 V-0 | 8 | 1500 | 1 | |
Amphenol ICC (FCI) | Copper Alloy | Horizontal | Through Hole Right Angle | Stacked USB-A (USB TYPE-A) | Gold GXT™ | Shielded | 85 °C | -55 °C | Solder | Receptacle | 1.5 A | White | UL94 V-0 | 8 | 1500 | 2 | USB 2.0 |
Amphenol ICC (FCI) | Copper Alloy | Horizontal | Through Hole Right Angle | Stacked USB-A (USB TYPE-A) | Gold GXT™ | Shielded | 85 °C | -55 °C | Solder | Receptacle | 1 A 1.5 A 2.5 A 3 A | White | UL94 V-0 | 8 | 1500 | 1 | |
 Amphenol ICC (FCI) | Copper Alloy | Horizontal | Through Hole Right Angle | Stacked USB-A (USB TYPE-A) | Gold GXT™ | Unshielded | 85 °C | -55 °C | Solder | Receptacle | 1.5 A | Black | UL94 V-0 | 8 | 1500 | 2 | USB 2.0 |
Amphenol ICC (FCI) | Copper Alloy | Horizontal | Through Hole Right Angle | Stacked USB-A (USB TYPE-A) | Gold GXT™ | Unshielded | 85 °C | -55 °C | Solder | Receptacle | 1.5 A | Black | UL94 V-0 | 8 | 1500 | 2 | USB 2.0 |
 Amphenol ICC (FCI) | Copper Alloy | Horizontal | Through Hole Right Angle | Stacked USB-A (USB TYPE-A) | Gold GXT™ | Unshielded | 85 °C | -55 °C | Solder | Receptacle | 1.5 A | White | UL94 V-0 | 8 | 1500 | 2 | USB 2.0 |
