UB25KKG Series

Catalog

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Voltage Rating - AC	Features	Current Rating (Amps)	Mounting Type	Type	Switch Function	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Termination Style	Actuator Type	Voltage Rating - DC	Illumination Type, Color	Color - Actuator/Cap
NKK Switches UB25KKG015F	1000000 Cycles	200000 Cycles	2.1 VDC	50 °C	-25 °C	No Marking	28 V	Sealed - Fully Stackable	0.4 VA	Panel Mount Snap-In	Illuminated Standard	On-Mom	16.2 mm	16.2 mm	DPDT	Solder Lug	Plunger for Cap	28 V	Green LED
NKK Switches UB25KKG016F	1000000 Cycles	200000 Cycles	3.2 VDC	50 °C	-25 °C	No Marking	28 V	Sealed - Fully Stackable	0.4 VA	Panel Mount Snap-In	Illuminated Standard	On-Mom	16.2 mm	16.2 mm	DPDT	Solder Lug	Plunger for Cap	28 V	Green LED

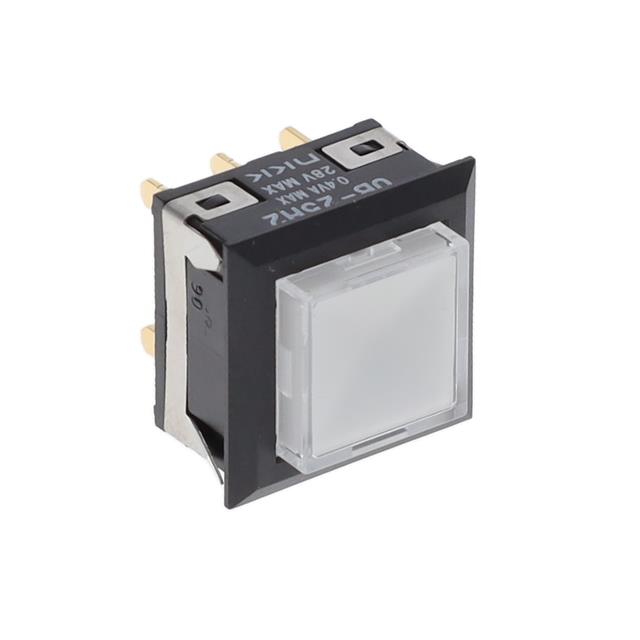

NKK Switches UB25KKG016B-JB	1000000 Cycles	200000 Cycles	2.9 VDC	50 °C	-25 °C	No Marking	28 V	Sealed - Fully Stackable	0.4 VA	Panel Mount Snap-In	Illuminated Standard	On-Mom	16.2 mm	16.2 mm	DPDT	Solder Lug	Button Square	28 V	LED White	Clear
NKK Switches UB25KKG015C	1000000 Cycles	200000 Cycles	1.85 VDC	50 °C	-25 °C	No Marking	28 V	Sealed - Fully Stackable	0.4 VA	Panel Mount Snap-In	Illuminated Standard	On-Mom	16.2 mm	16.2 mm	DPDT	Solder Lug	Plunger for Cap	28 V	LED Red
NKK Switches UB25KKG016G	1000000 Cycles	200000 Cycles	2.9 VDC	50 °C	-25 °C	No Marking	28 V	Sealed - Fully Stackable	0.4 VA	Panel Mount Snap-In	Illuminated Standard	On-Mom	16.2 mm	16.2 mm	DPDT	Solder Lug	Plunger for Cap	28 V	Blue LED

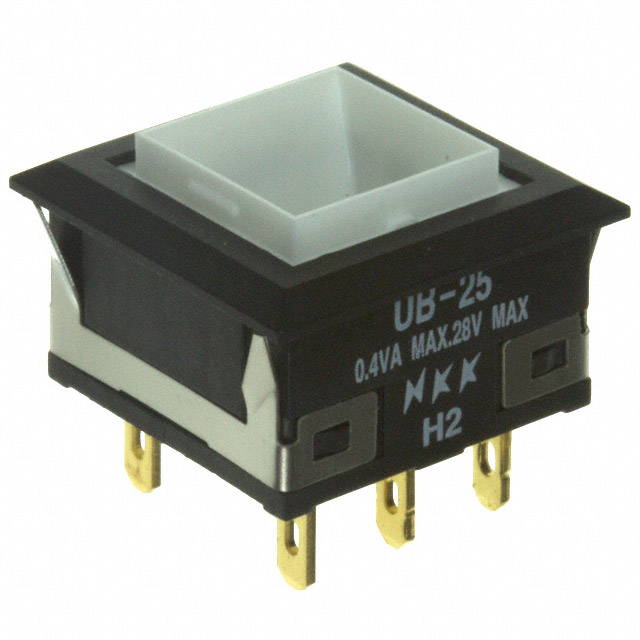

NKK Switches UB25KKG016B	1000000 Cycles	200000 Cycles	2.9 VDC	50 °C	-25 °C	No Marking	28 V	Sealed - Fully Stackable	0.4 VA	Panel Mount Snap-In	Illuminated Standard	On-Mom	16.2 mm	16.2 mm	DPDT	Solder Lug	Plunger for Cap	28 V	LED White
NKK Switches UB25KKG01N-A	1000000 Cycles	200000 Cycles		70 °C	-20 ░C	No Marking	28 V	Sealed - Hermetically	0.4 VA	Panel Mount Snap-In	Standard	On-Mom	16.2 mm	16.2 mm	DPDT	Solder Lug	Button Square	28 V		Black

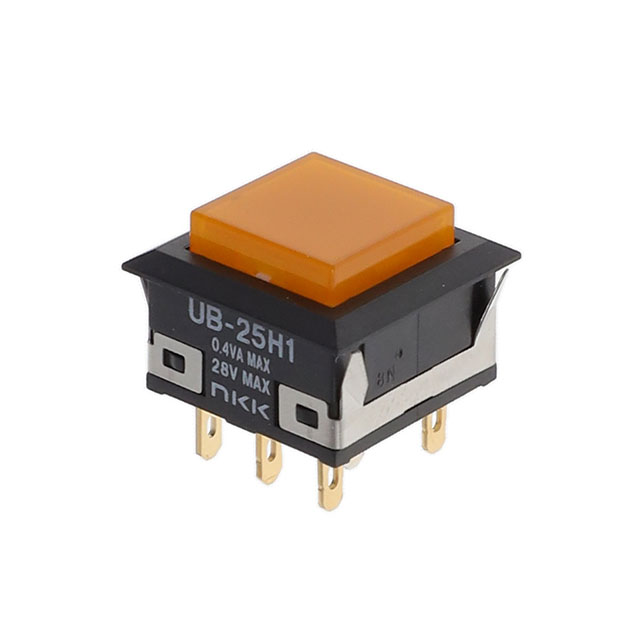

NKK Switches UB25KKG015D-DD	1000000 Cycles	200000 Cycles	2 VDC	50 °C	-25 °C	No Marking	28 V	Sealed - Fully Stackable	0.4 VA	Panel Mount Snap-In	Illuminated Standard	On-Mom	16.2 mm	16.2 mm	DPDT	Solder Lug	Button Square	28 V	Amber LED	Amber
NKK Switches UB25KKG01N-C	1000000 Cycles	200000 Cycles		70 °C	-20 ░C	No Marking	28 V	Sealed - Hermetically	0.4 VA	Panel Mount Snap-In	Standard	On-Mom	16.2 mm	16.2 mm	DPDT	Solder Lug	Button Square	28 V		Red
NKK Switches UB25KKG015F-JB	1000000 Cycles	200000 Cycles	2.1 VDC	50 °C	-25 °C	No Marking	28 V	Sealed - Fully Stackable	0.4 VA	Panel Mount Snap-In	Illuminated Standard	On-Mom	16.2 mm	16.2 mm	DPDT	Solder Lug	Button Square	28 V	Green LED	Clear
