1217009 Series

Catalog

CONN QC RCPT 16-20AWG 0.187

Part	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Mounting Type	Insulation	Tab Length	Tab Length	Termination	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Tab Width [x]	Tab Width [x]	Tab Thickness	Tab Thickness	Terminal Type	Gender	Contact Finish

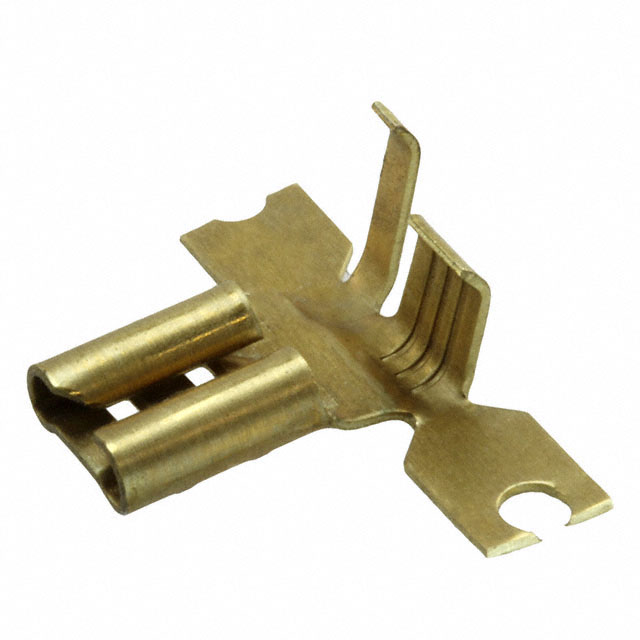

TE Connectivity AMP Connectors 1217009-1	0.13 "	0.09 in	2.29 mm	3.3 mm	Free Hanging (In-Line) Right Angle	Non-Insulated	0.25 in	6.35 mm	Crimp	20 AWG	16 AWG	Brass	0.187 in	4.75 mm	0.02 in	0.51 mm	Angled - 90° Flag	Female
TE Connectivity AMP Connectors 1217009-2	0.13 "	0.09 in	2.29 mm	3.3 mm	Free Hanging (In-Line) Right Angle	Non-Insulated	0.25 in	6.35 mm	Crimp	20 AWG	16 AWG	Brass	0.187 in	4.75 mm	0.02 in	0.51 mm	Angled - 90° Flag	Female	Tin
