151R Series

Manufacturer: Serpac

Catalog

ENCLOSURES, BOXES, & CASES 5.63 X 3.25 X 1.51 RECES FOR LABEL, BLK

Part	Weight	Weight	Height	Height	Material Flammability Rating	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Thickness	Thickness	Features	Area (L x W)	Area (L x W)	Ratings	Material	Container Type	Design	Area (L x W) [custom]	Area (L x W) [custom]

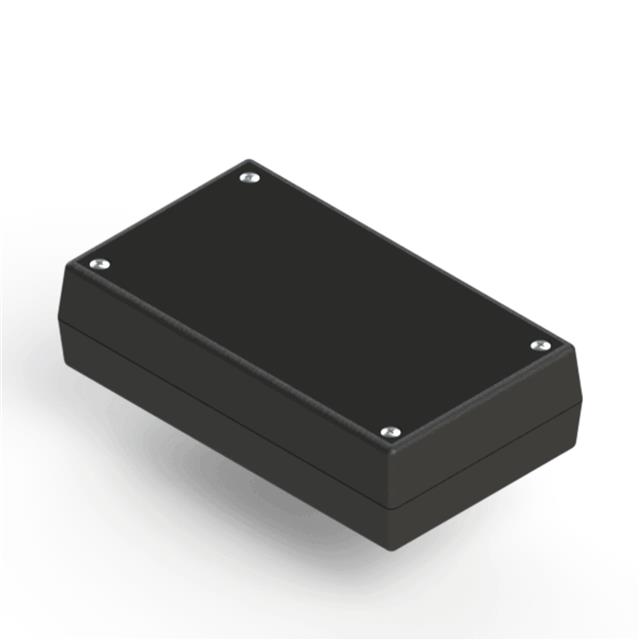

Serpac 151RI,BK	0.24 lb	108.86 g	1.5 in	38.1 mm	UL94 HB	Black	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	Front Access PCB Supports	18.3 in²	118 cm²	IP40 NEMA 1	ABS Plastic	Box	Hand Held Split Sides

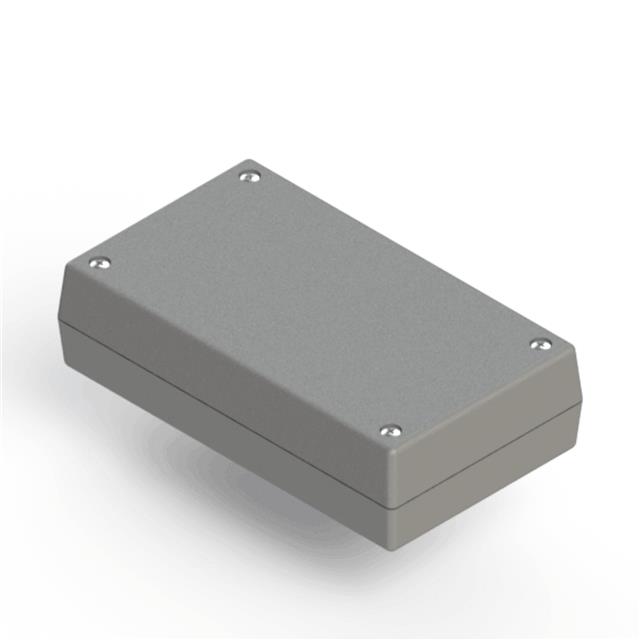

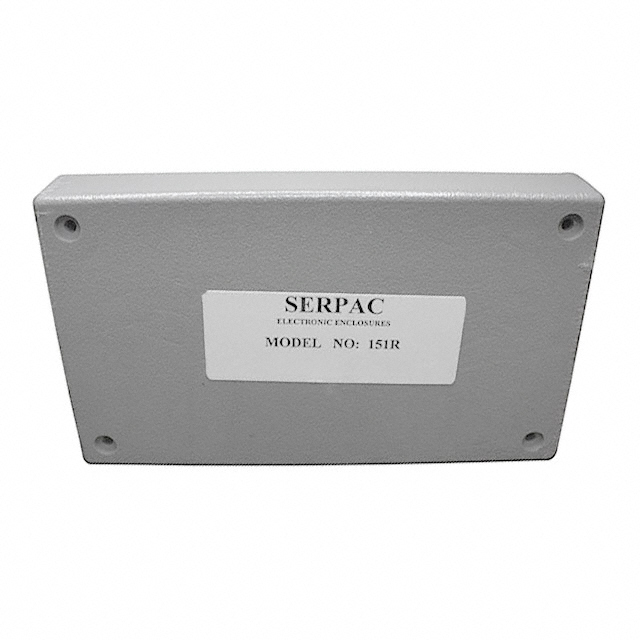

Serpac 151R,GY	0.24 lb	108.86 g	1.5 in	38.1 mm	UL94 HB	Gray	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	Front Access PCB Supports	18.3 in²	118 cm²	IP40 NEMA 1	ABS Plastic	Box	Hand Held Split Sides	118 cm˛	18.3 in˛

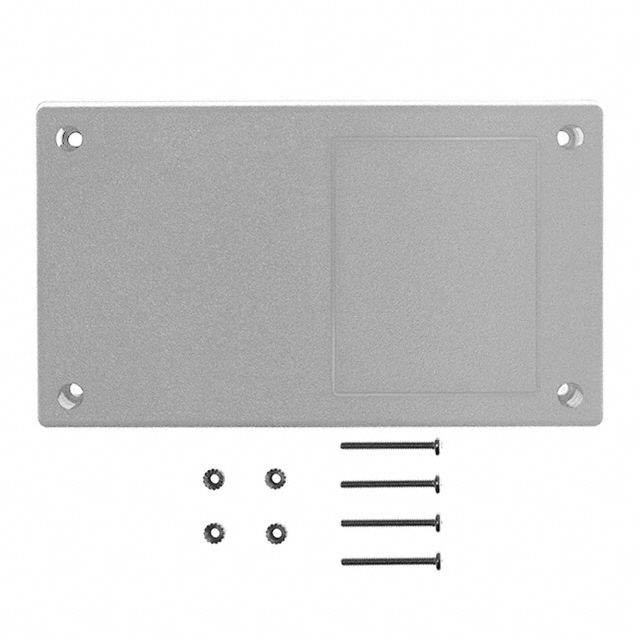

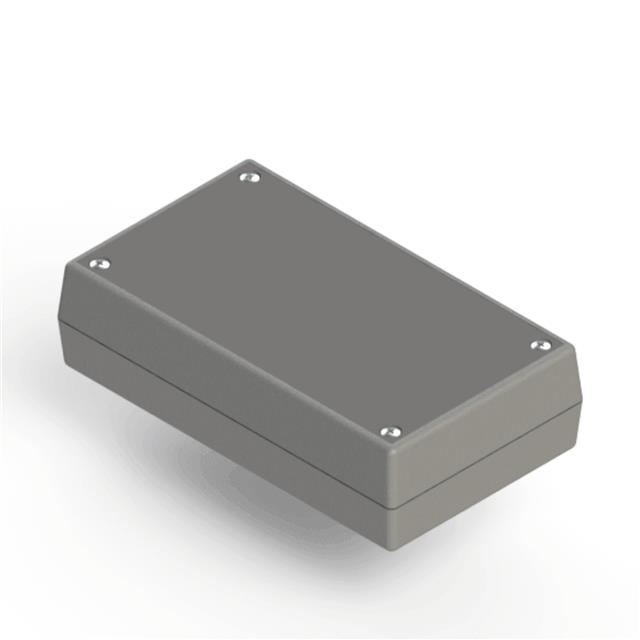

Serpac 151RI,GY	0.24 lb	108.86 g	1.5 in	38.1 mm	UL94 HB	Gray	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	Front Access PCB Supports	18.3 in²	118 cm²	IP40 NEMA 1	ABS Plastic	Box	Hand Held Split Sides

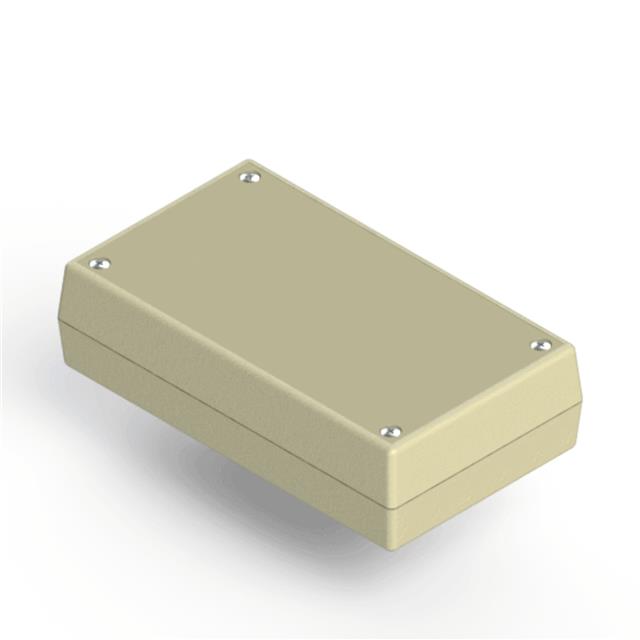

Serpac 151RI,AL	0.24 lb	108.86 g	1.5 in	38.1 mm	UL94 HB	Almond	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	Front Access PCB Supports	18.3 in²	118 cm²	IP40 NEMA 1	ABS Plastic	Box	Hand Held Split Sides

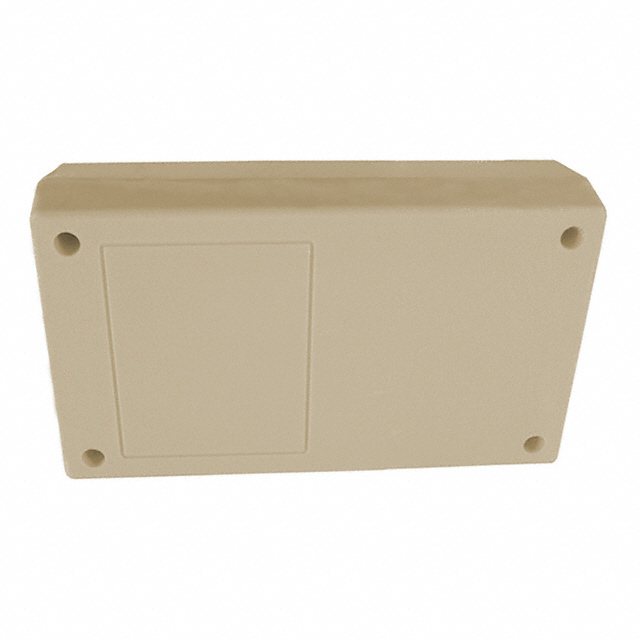

Serpac 151R,AL	0.24 lb	108.86 g	1.5 in	38.1 mm	UL94 HB	Almond	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	Front Access PCB Supports	18.3 in²	118 cm²	IP40 NEMA 1	ABS Plastic	Box	Hand Held Split Sides

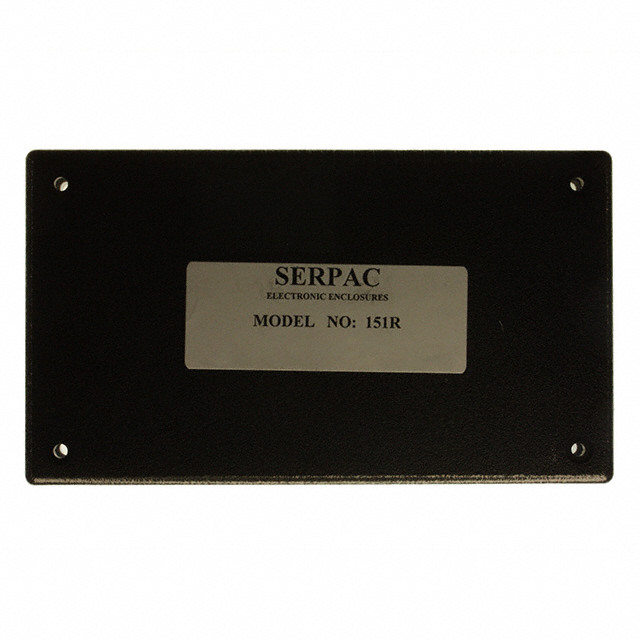

Serpac 151R,BK	0.24 lb	108.86 g	1.5 in	38.1 mm	UL94 HB	Black	5.62 "	142.75 mm	82.55 mm	3.25 "	2.54 mm	0.1 in	Front Access PCB Supports	18.3 in²	118 cm²	IP40 NEMA 1	ABS Plastic	Box	Hand Held Split Sides	118 cm˛	18.3 in˛
