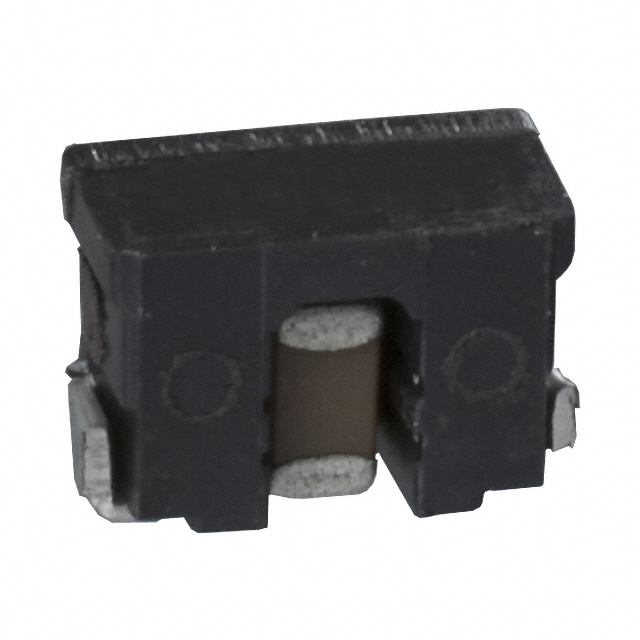

ELK-EV Series

Catalog

FILTER LC(T) 1050PF ESD SMD

Part	Package / Case	Package / Case	Package / Case	Voltage - Rated	Mounting Type	Applications	Number of Channels	Center / Cutoff Frequency	Filter Order	Height [z]	Height [z]	Attenuation Value	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Current	Values	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type
Panasonic Industrial Automation Sales ELK-EV112FC	3 Lead	1207	3218 Metric	12 VDC	Surface Mount	Data Lines for Mobile Devices	1	8 MHz	3	0.087 in	2.2 mm	15 dB	85 °C	-20 C	LC (T-Type)	2 A	1050 pF	3.2 mm	0.071 in	1.8 mm	0.126 in	Low Pass
Panasonic Industrial Automation Sales ELK-EV300FF	3 Lead	1207	3218 Metric	27 VDC	Surface Mount	Data Lines for Mobile Devices	1	200 MHz	3	0.087 in	2.2 mm	15 dB	85 °C	-20 C	LC (T-Type)	2 A	30 pF	3.2 mm	0.071 in	1.8 mm	0.126 in	Low Pass
Panasonic Industrial Automation Sales ELK-EV161FF	3 Lead	1207	3218 Metric	27 VDC	Surface Mount	Data Lines for Mobile Devices	1	50 MHz	3	0.087 in	2.2 mm	15 dB	85 °C	-20 C	LC (T-Type)	2 A	160 pF	3.2 mm	0.071 in	1.8 mm	0.126 in	Low Pass
