TPS65120 Series
Manufacturer: Texas Instruments
Beta
⌘K
4-CH SINGLE INDUCTOR MULTIPLE OUTPUTS (SIMO) BIAS IC W/ FIXED 3.3V VLOGIC
| Part | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Package / Case | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Output [Max] | Voltage - Output [Min] | Number of Outputs | Board Type | Supplied Contents | Power - Output | Outputs and Type | Outputs and Type | Current - Output | Voltage - Output | Utilized IC / Part | Contents | Regulator Topology | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 5.5 V | 2.5 V | 16-VFQFN Exposed Pad | 16-VQFN 3x3 | 85 °C | -40 C | Converter TFT LCD | 5.6 V 20 V | -18 V 3 V | 4 | |||||||||||

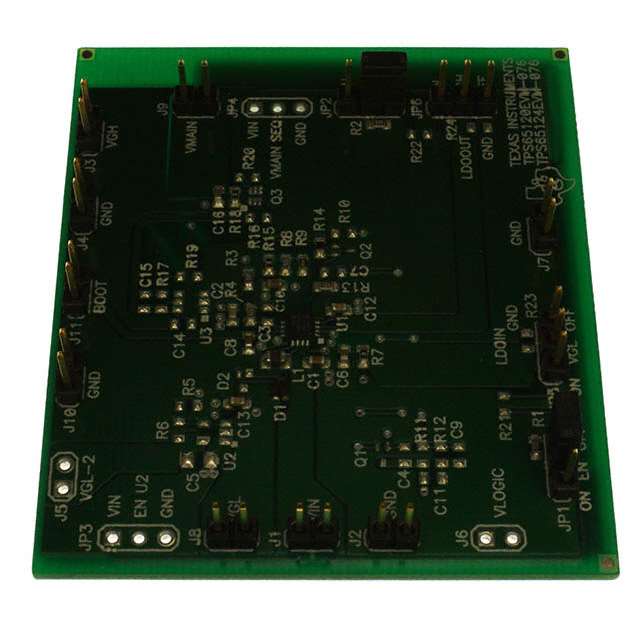

 Texas Instruments | 5.5 V | 2.5 V | Fully Populated | Board(s) | 287 mW | 4 Non-Isolated Outputs Non-Isolated | 4 | 4 mA 20 mA 25 mA | -12 V 3.3 V 5 V 12 V | TPS65120 | Board(s) | Boost | Special Purpose DC/DC LCD Supply | |||||||||
Texas Instruments | Surface Mount | 5.5 V | 2.5 V | 16-VFQFN Exposed Pad | 16-VQFN 3x3 | 85 °C | -40 C | Converter TFT LCD | 5.6 V 20 V | -18 V 3 V | 4 | |||||||||||
 Texas Instruments | Surface Mount | 5.5 V | 2.5 V | 16-VFQFN Exposed Pad | 16-QFN (3x3) | 85 °C | -40 C | Converter TFT LCD | 5.6 V 20 V | -18 V 3 V | 4 |
