EDZ1550 Series

Catalog

TERM BLOCK PLUG 14POS STR 3.81MM

Part	Housing Material	Wire Strip Length	Wire Gauge or Range - mm˛	Contact Material	Torque - Screw	Torque - Screw	Type	Mounting Type	Voltage - UL	Pitch	Pitch	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Positions Per Level	Wire Gauge or Range - mm²	Color	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]

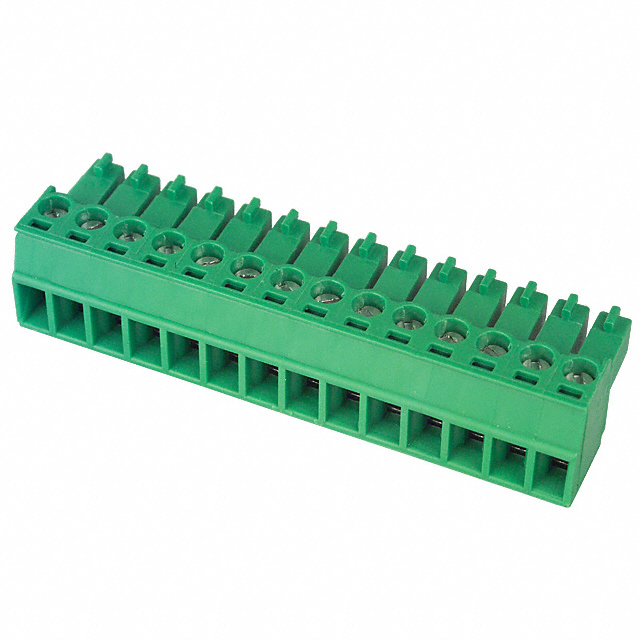

On Shore Technology Inc. EDZ1550/14	Polyamide (PA) Nylon	7 mm	1.5 mm˛	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	Plug Female Sockets	Free Hanging (In-Line)	300 V	3.81 mm	0.15 in	Screw	-30 ░C	105 ░C	14	14	1.5 mm²	Green	1	28 AWG	16 AWG

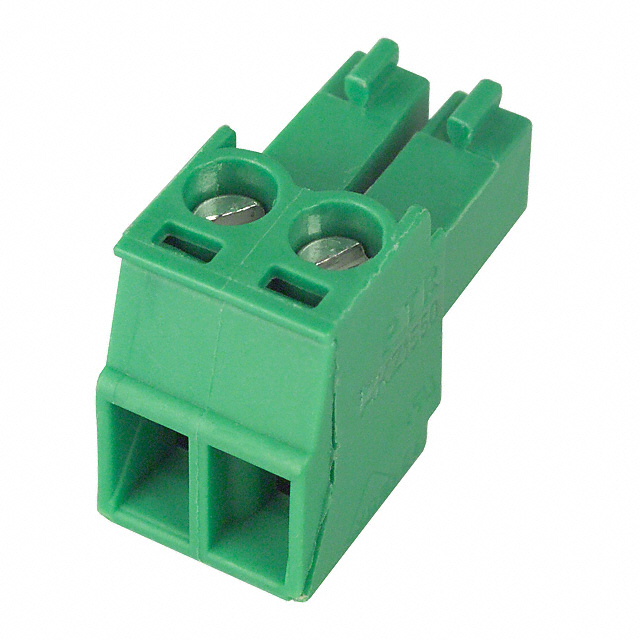

On Shore Technology Inc. EDZ1550/2	Polyamide (PA) Nylon	7 mm	1.5 mm˛	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	Plug Female Sockets	Free Hanging (In-Line)	300 V	3.81 mm	0.15 in	Screw	-30 ░C	105 ░C	2	2	1.5 mm²	Green	1	28 AWG	16 AWG

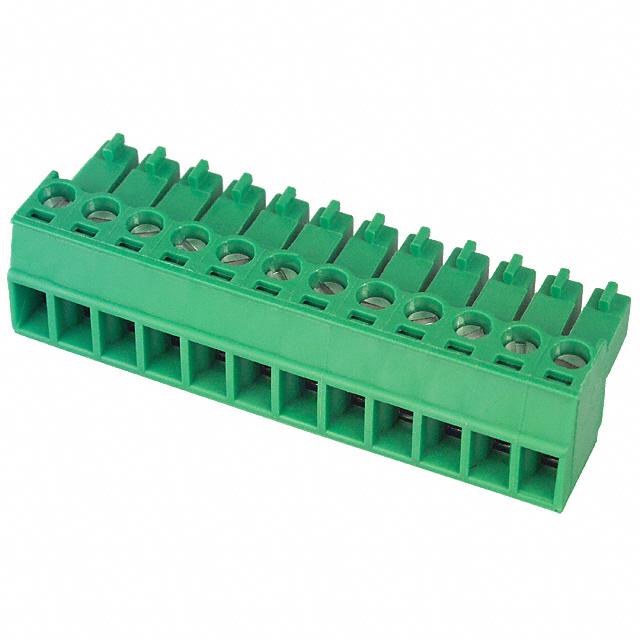

On Shore Technology Inc. EDZ1550/12	Polyamide (PA) Nylon	7 mm	1.5 mm˛	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	Plug Female Sockets	Free Hanging (In-Line)	300 V	3.81 mm	0.15 in	Screw	-30 ░C	105 ░C	12	12	1.5 mm²	Green	1	28 AWG	16 AWG

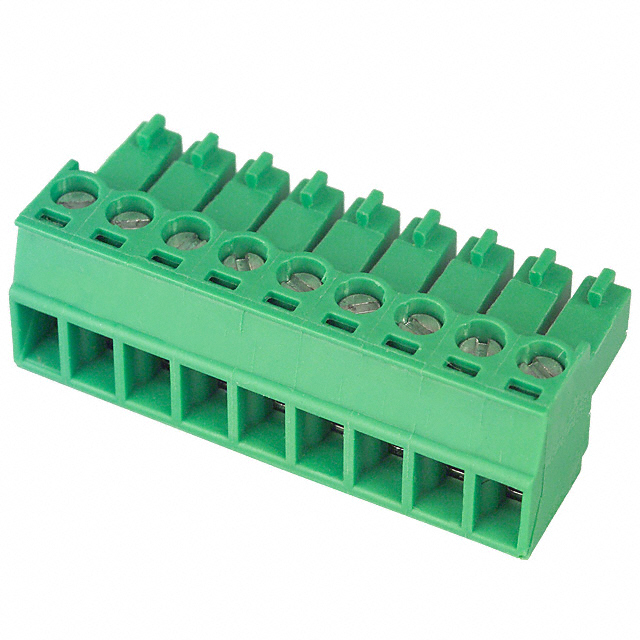

On Shore Technology Inc. EDZ1550/9	Polyamide (PA) Nylon	7 mm		Copper Tin Alloy	3.5 Lb-In	0.4 Nm	Plug Female Sockets	Free Hanging (In-Line)	300 V	3.81 mm	0.15 in	Screw	-30 ░C	105 ░C	9	9	1.5 mm²	Green	1	28 AWG	16 AWG

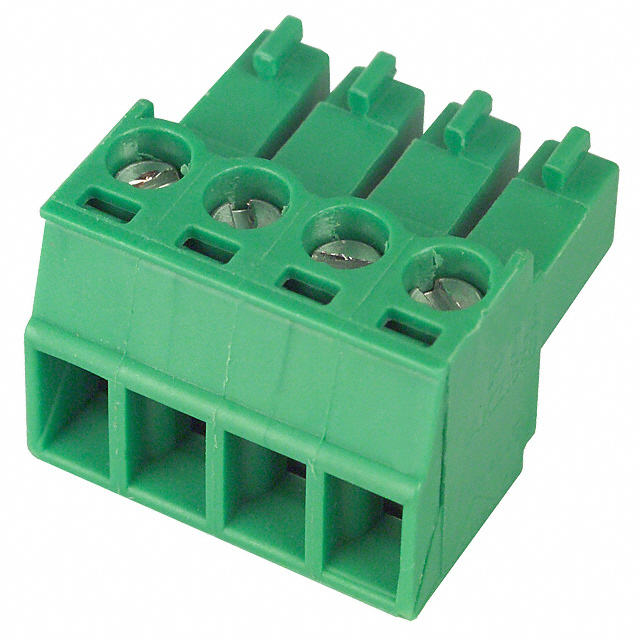

On Shore Technology Inc. EDZ1550/4	Polyamide (PA) Nylon	7 mm	1.5 mm˛	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	Plug Female Sockets	Free Hanging (In-Line)	300 V	3.81 mm	0.15 in	Screw	-30 ░C	105 ░C	4	4	1.5 mm²	Green	1	28 AWG	16 AWG

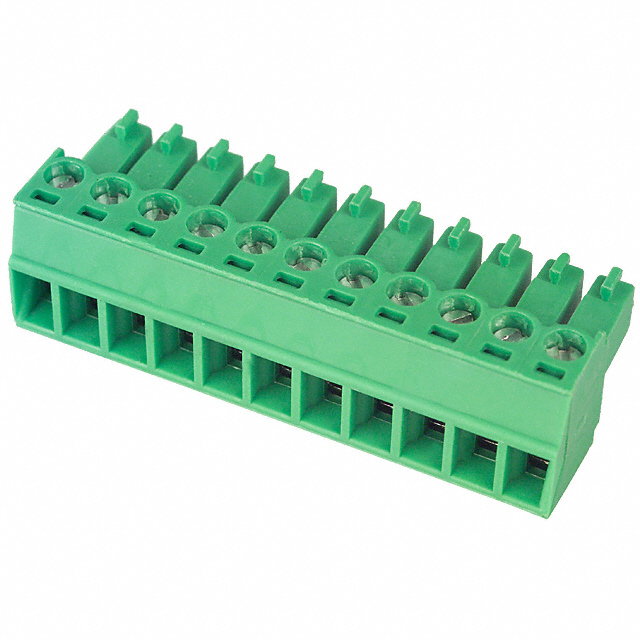

On Shore Technology Inc. EDZ1550/11	Polyamide (PA) Nylon	7 mm	1.5 mm˛	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	Plug Female Sockets	Free Hanging (In-Line)	300 V	3.81 mm	0.15 in	Screw	-30 ░C	105 ░C	11	11	1.5 mm²	Green	1	28 AWG	16 AWG
On Shore Technology Inc. EDZ1550/10	Polyamide (PA) Nylon	7 mm	1.5 mm˛	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	Plug Female Sockets	Free Hanging (In-Line)	300 V	3.81 mm	0.15 in	Screw	-30 ░C	105 ░C	10	10	1.5 mm²	Green	1	28 AWG	16 AWG

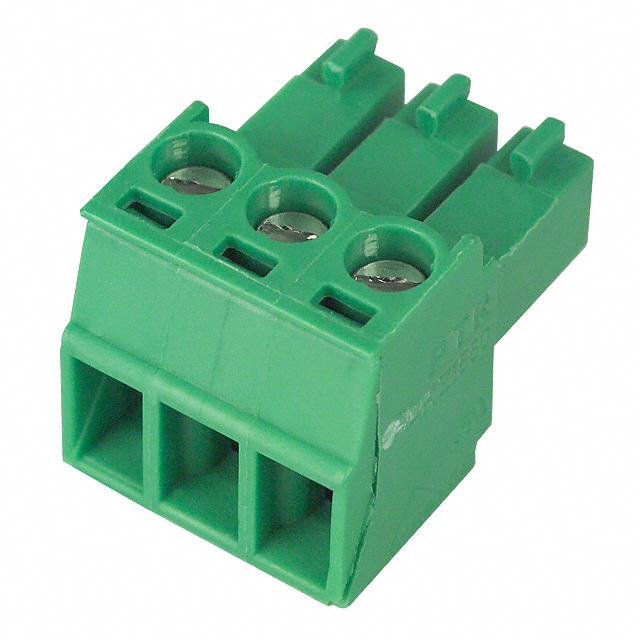

On Shore Technology Inc. EDZ1550/3	Polyamide (PA) Nylon	7 mm		Copper Tin Alloy	3.5 Lb-In	0.4 Nm	Plug Female Sockets	Free Hanging (In-Line)	300 V	3.81 mm	0.15 in	Screw	-30 ░C	105 ░C		3	1.5 mm²	Green	1	28 AWG	16 AWG

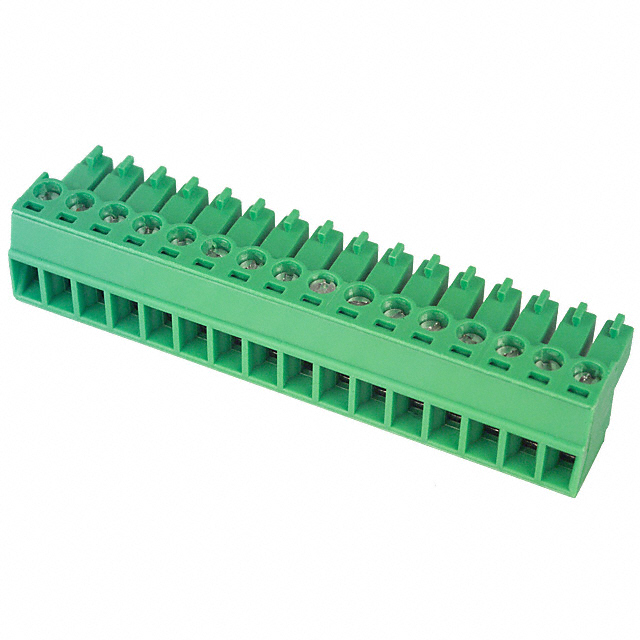

On Shore Technology Inc. EDZ1550/16	Polyamide (PA) Nylon	7 mm	1.5 mm˛	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	Plug Female Sockets	Free Hanging (In-Line)	300 V	3.81 mm	0.15 in	Screw	-30 ░C	105 ░C	16	16	1.5 mm²	Green	1	28 AWG	16 AWG

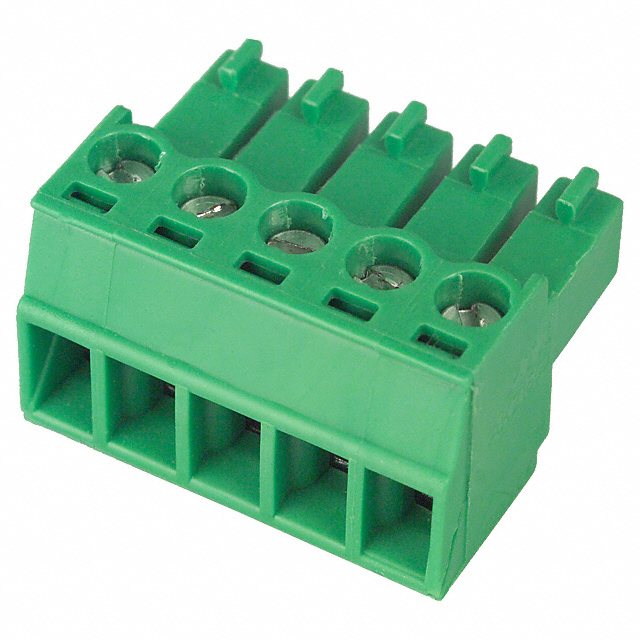

On Shore Technology Inc. EDZ1550/5	Polyamide (PA) Nylon	7 mm	1.5 mm˛	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	Plug Female Sockets	Free Hanging (In-Line)	300 V	3.81 mm	0.15 in	Screw	-30 ░C	105 ░C	5	5	1.5 mm²	Green	1	28 AWG	16 AWG
