R12550 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

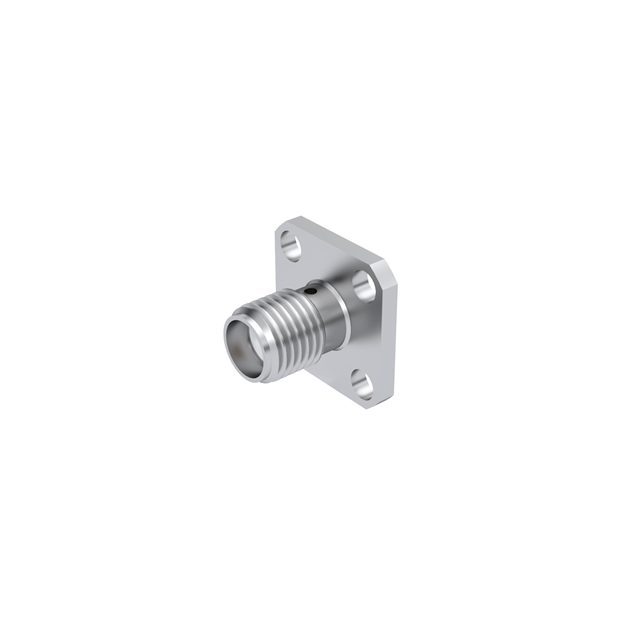

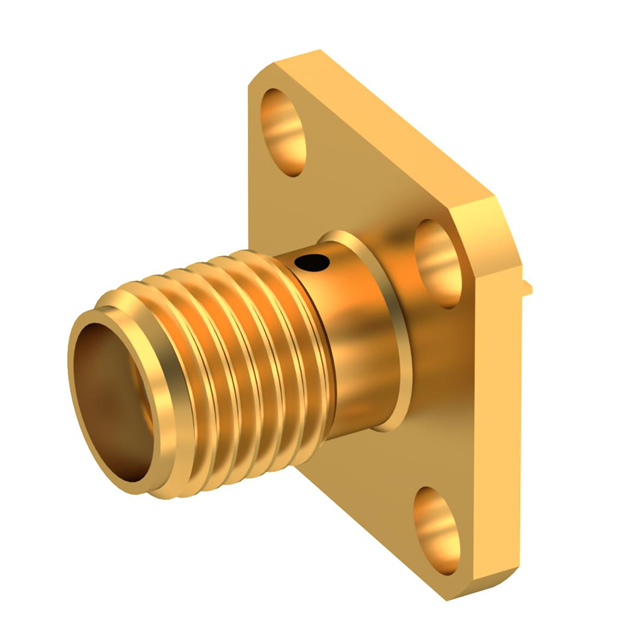

SMA / SQUARE FLANGE JACK RECEPTA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Mating Cycles | Body Material | Voltage Rating | Connector Style | Mounting Feature | Fastening Type | Mounting Type | Impedance | Contact Termination | Connector Type | Number of Ports | Housing Color | Center Contact Material | Frequency - Max [Max] | Features | Shield Termination | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | 500 V | SMA | Flange | Threaded | Panel Mount Through Hole | 50 Ohms | Solder Tab | Female Socket Jack | 1 | Silver | Beryllium Copper | 18 GHz | Extended Insulation | Solder | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | 500 V | SMA | Flange | Threaded | Panel Mount Through Hole | 50 Ohms | Solder Tab | Female Socket Jack | 1 | Gold | Beryllium Copper | 18 GHz | Extended Insulation | Solder | Gold |
Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | 500 V | SMA | Flange | Threaded | Panel Mount Through Hole | 50 Ohms | Solder Tab | Female Socket Jack | 1 | Silver | Beryllium Copper | 18 GHz | Extended Insulation | Solder | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | 500 V | SMA | Flange | Threaded | Panel Mount Through Hole | 50 Ohms | Solder Tab | Female Socket Jack | 1 | Gold | Beryllium Copper | 18 GHz | Extended Insulation | Solder | Gold |
