630W11 Series
Manufacturer: EDAC Inc.
Beta
⌘K

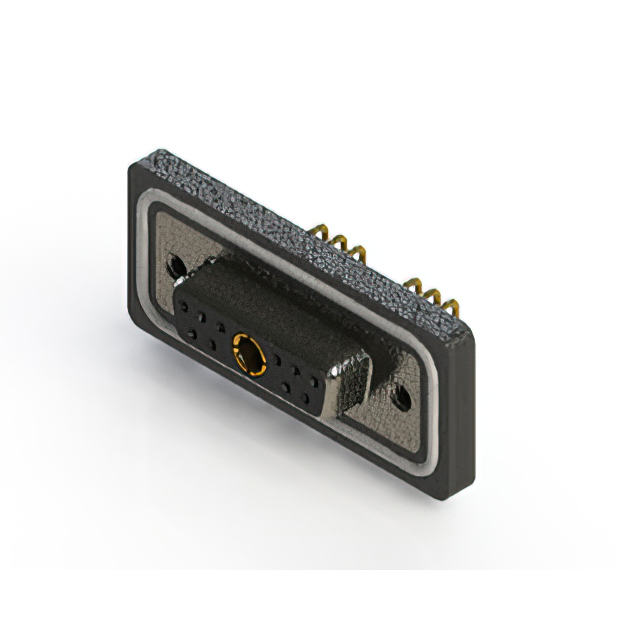

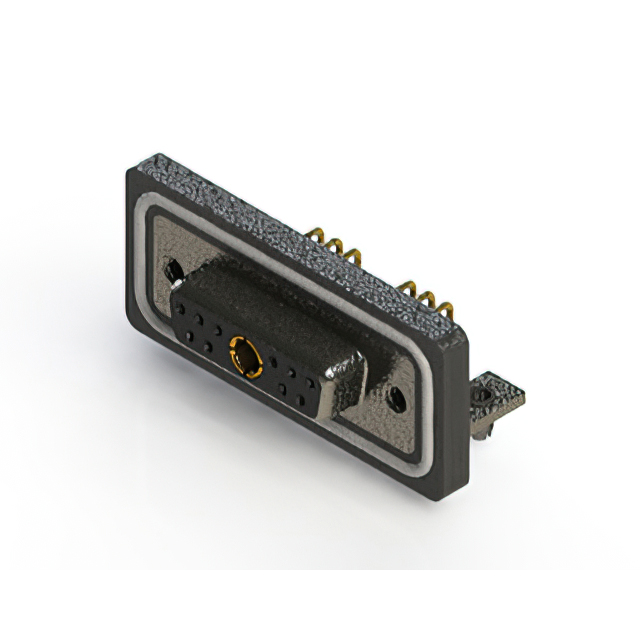

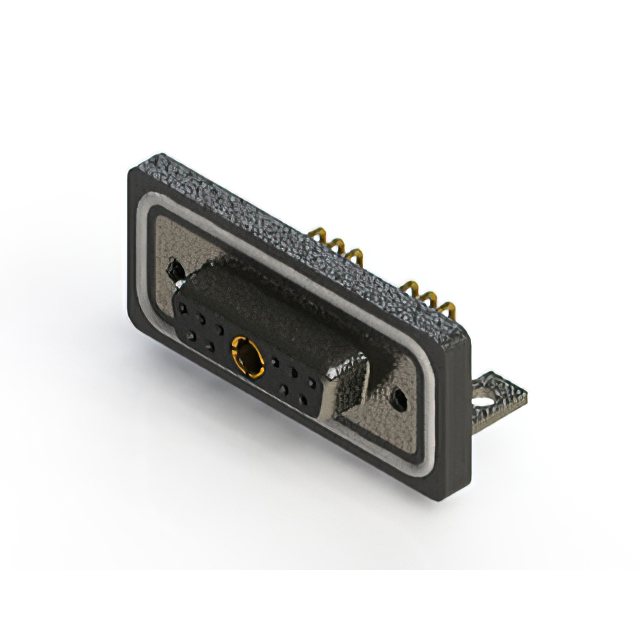

CONN D-SUB RCPT 11POS R/A SLDR
| Part | Color | Voltage Rating | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Ingress Protection | Shell Material, Finish | Termination | Connector Type | Features | Number of Rows [custom] | Material Flammability Rating | Number of Positions [custom] | Number of Positions [custom] | Contact Finish | Mounting Type | Current Rating (Amps) | Flange Feature | Flange Feature | Contact Type | Shell Size, Connector Layout | Connector Style | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | 125 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Flash | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Solder | Receptacle Female Sockets | Board Lock Mounting Brackets Shielded | 2 | UL94 V-0 | 10 | 1 | Gold | Panel Mount Right Angle Through Hole | 5 A 30 A | Housing/Shell | 4-40 | Signal and Power | 2 (DA A) - 11C1 11W1 | Combo D-Sub | |||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Flash | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Solder | Receptacle Female Sockets | Mounting Brackets Shielded | 2 | UL94 V-0 | 10 | 1 | Gold | Right Angle Through Hole | Housing/Shell (M3) | Signal and Power | 2 (DA A) - 11C1 11W1 | Combo D-Sub | 20A 5A | ||||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Solder | Receptacle Female Sockets | Board Lock Mounting Brackets Shielded | 2 | UL94 V-0 | 10 | 1 | Gold | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | Signal and Power | 2 (DA A) - 11C1 11W1 | Combo D-Sub | 10A 5A | 5 µin | 0.127 µm | ||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Flash | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Solder | Receptacle Female Sockets | Shielded | 2 | UL94 V-0 | 10 | 1 | Gold | Panel Mount Right Angle Through Hole | 5 A 30 A | Housing/Shell (M3) | Signal and Power | 2 (DA A) - 11C1 11W1 | Combo D-Sub | ||||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Solder | Receptacle Female Sockets | Shielded | 2 | UL94 V-0 | 10 | 1 | Gold | Panel Mount Right Angle Through Hole | 5 A 40 A | Housing/Shell | 4-40 | Signal and Power | 2 (DA A) - 11C1 11W1 | Combo D-Sub | 5 µin | 0.127 µm | ||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Flash | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Solder | Receptacle Female Sockets | Mounting Brackets Shielded | 2 | UL94 V-0 | 10 | 1 | Gold | Panel Mount Right Angle Through Hole | 5 A 40 A | Housing/Shell | 4-40 | Signal and Power | 2 (DA A) - 11C1 11W1 | Combo D-Sub | |||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Solder | Receptacle Female Sockets | Board Lock Mounting Brackets Shielded | 2 | UL94 V-0 | 10 | 1 | Gold | Panel Mount Right Angle Through Hole | 5 A 40 A | Housing/Shell | 4-40 | Signal and Power | 2 (DA A) - 11C1 11W1 | Combo D-Sub | 5 µin | 0.127 µm | ||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Solder | Receptacle Female Sockets | Mounting Brackets Shielded | 2 | UL94 V-0 | 10 | 1 | Gold | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | Signal and Power | 2 (DA A) - 11C1 11W1 | Combo D-Sub | 20A 5A | 5 µin | 0.127 µm | ||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Solder | Receptacle Female Sockets | Shielded | 2 | UL94 V-0 | 10 | 1 | Gold | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | Signal and Power | 2 (DA A) - 11C1 11W1 | Combo D-Sub | 10A 5A | 5 µin | 0.127 µm | ||
 EDAC Inc. | Black | 125 VDC | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Solder | Receptacle Female Sockets | Shielded | 2 | UL94 V-0 | 10 | 1 | Gold | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | Signal and Power | 2 (DA A) - 11C1 11W1 | Combo D-Sub | 10A 5A | 15 µin | 0.38 µm |
