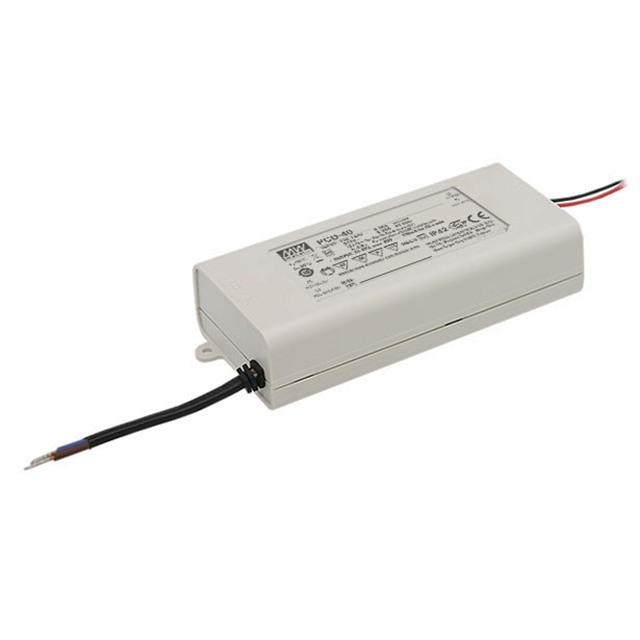

PCD-40 Series

Catalog

LED DRVR CC AC/DC 13-23V 1.75A

Part	Mounting Type	Voltage - Input (Min) [Min]	Features	Type	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Termination Style	Ratings	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Topology	Voltage - Input (Max) [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Power (Watts)
MEAN WELL USA Inc. PCD-40-1750B	Chassis Mount	180 VAC	OTP SCP	Constant Current	85 %	5.04 "	2.36 "	1.24 "	31.5 mm	60 mm	128 mm	CB CE ENEC	Wire Leads	IP42	TRIAC	-30 ░C	50 °C	3750 VDC	1.75 A	AC DC Converter	295 VAC	13 V	23 V	1	40 W
MEAN WELL USA Inc. PCD-40-1050B	Chassis Mount	180 VAC	OTP SCP	Constant Current	86 %	5.04 "	2.36 "	1.24 "	31.5 mm	60 mm	128 mm	CB CE ENEC	Wire Leads	IP42	TRIAC	-30 ░C	50 °C	3750 VDC	1.05 A	AC DC Converter	295 VAC	22 V	38 V	1	40 W
MEAN WELL USA Inc. PCD-40-700B	Chassis Mount	180 VAC	OTP SCP	Constant Current	86 %	5.04 "	2.36 "	1.24 "	31.5 mm	60 mm	128 mm	CB CE ENEC	Wire Leads	IP42	TRIAC	-30 ░C	50 °C	3750 VDC	700 mA	AC DC Converter	295 VAC	34 V	57 V	1	40 W
