9250A Series

Catalog

FIXED IND 1.5UH 815MA 120MOHM TH

Part	Mounting Type	Current Rating (Amps)	Inductance Frequency - Test	Material - Core	Tolerance	Q @ Freq	Current - Saturation (Isat)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [diameter]	Frequency - Self Resonant	Type	DC Resistance (DCR) [Max]	Package / Case	Shielding	Inductance	DC Resistance (DCR)

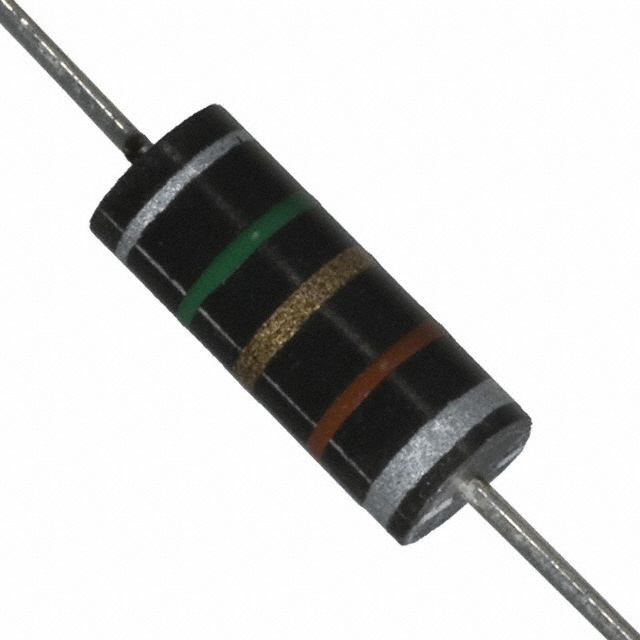

Bourns Inc. 9250A-152-RC	Through Hole	815 mA	7.9 MHz	Ferrite	10 %	7.9 MHz 44	815 mA	-55 C	125 °C	0.41 " 10.41 mm	0.162 in 4.11 mm	115 MHz	Molded	120 mOhm	Axial	Shielded	1.5 µH
Bourns Inc. 9250A-124-RC	Through Hole	150 mA	790 kHz	Ferrite	10 %		95 mA	-55 C	125 °C	0.41 " 10.41 mm	0.162 in 4.11 mm		Molded	3.6 Ohm	Axial	Shielded
Bourns Inc. 9250A-334-RC	Through Hole	110 mA	790 kHz	Ferrite	10 %		65 mA	-55 C	125 °C	0.41 " 10.41 mm	0.162 in 4.11 mm	6.5 MHz	Molded	6.4 Ohm	Axial	Shielded	330 µH
Bourns Inc. 9250A-223-RC	Through Hole	0.29 A	2.5 MHz	Ferrite	10 %	2.5 MHz 45	220 mA	-55 C	125 °C	0.41 " 10.41 mm	0.162 in 4.11 mm	41 MHz	Molded	960 mOhm	Axial	Shielded	22 µH
Bourns Inc. 9250A-101-RC	Through Hole	1.79 A	25 MHz	Ferrite	10 %	25 MHz 50	1.79 A	-55 C	125 °C	0.41 " 10.41 mm	0.162 in 4.11 mm	250 MHz	Molded	25 mOhm	Axial	Shielded	100 nH

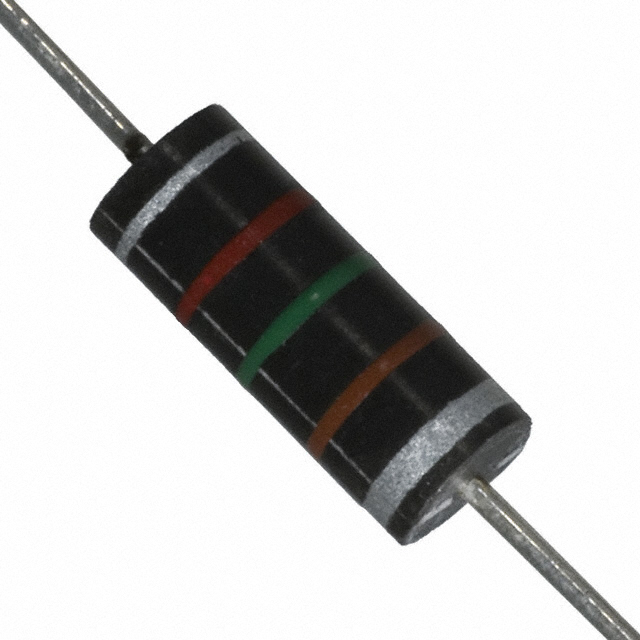

Bourns Inc. 9250A-155-RC	Through Hole	0.055 A	250 kHz	Ferrite	10 %	45 250 kHz	33 mA	-55 C	125 °C	0.41 " 10.41 mm	0.162 in 4.11 mm	1.2 MHz	Molded		Axial	Shielded	1.5 mH

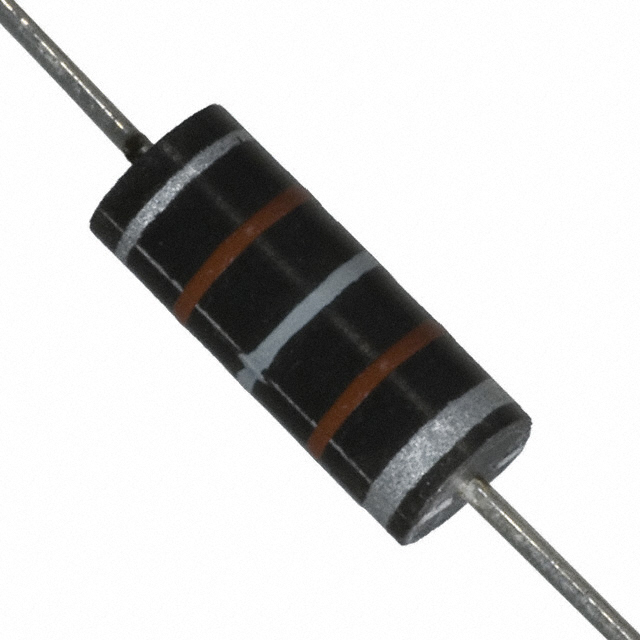

Bourns Inc. 9250A-184-RC	Through Hole	135 mA	790 kHz	Ferrite	10 %		85 mA	-55 C	125 °C	0.41 " 10.41 mm	0.162 in 4.11 mm	8 MHz	Molded	4.4 Ohm	Axial	Shielded	180 µH
Bourns Inc. 9250A-683-RC	Through Hole	0.17 A	2.5 MHz	Ferrite	10 %	2.5 MHz 50	150 mA	-55 C	125 °C	0.41 " 10.41 mm	0.162 in 4.11 mm	21 MHz	Molded	2.7 Ohm	Axial	Shielded	68 µH

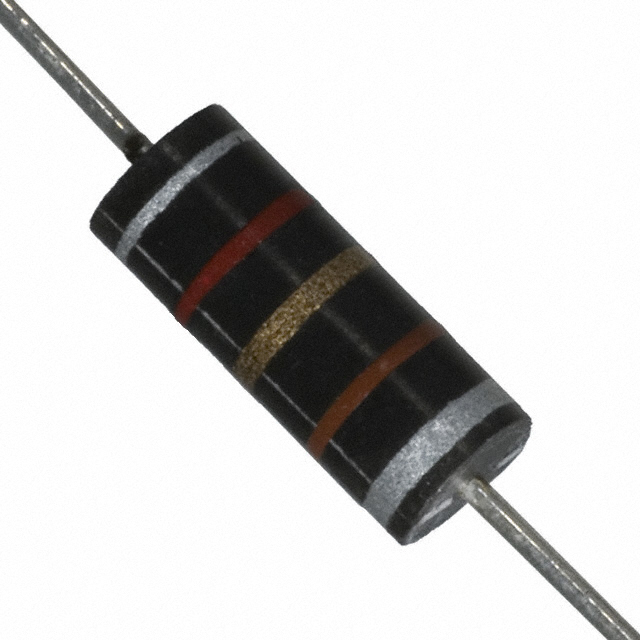

Bourns Inc. 9250A-122-RC	Through Hole	895 mA	7.9 MHz	Ferrite	10 %	7.9 MHz 44	895 mA	-55 C	125 °C	0.41 " 10.41 mm	0.162 in 4.11 mm	130 MHz	Molded		Axial	Shielded	1.2 µH	100 mOhm
Bourns Inc. 9250A-182-RC	Through Hole	775 mA	7.9 MHz	Ferrite	10 %	7.9 MHz 44	775 mA	-55 C	125 °C	0.41 " 10.41 mm	0.162 in 4.11 mm	105 MHz	Molded	140 mOhm	Axial	Shielded	1.8 µH
