Schaffner FN2410 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 520V/300VAC 32A CHAS

Part	Approval Agency	Configuration	Current	Voltage - Rated AC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Filter Type	Frequency - Operating	Applications	Frequency - Operating
TE Connectivity AMP Connectors FN2410H-32-33	CSA ENEC UR	Single Stage	32 A	300 V 520 V	Chassis Mount	100 °C	-25 °C	Terminal Block	Single Phase	DC ~ 400Hz	General Purpose
TE Connectivity AMP Connectors FN2410H-8-44	CSA ENEC UR	Single Stage	8 A	300 V 520 V	Chassis Mount	100 °C	-25 °C	Terminal Block	Single Phase	DC ~ 400Hz	General Purpose

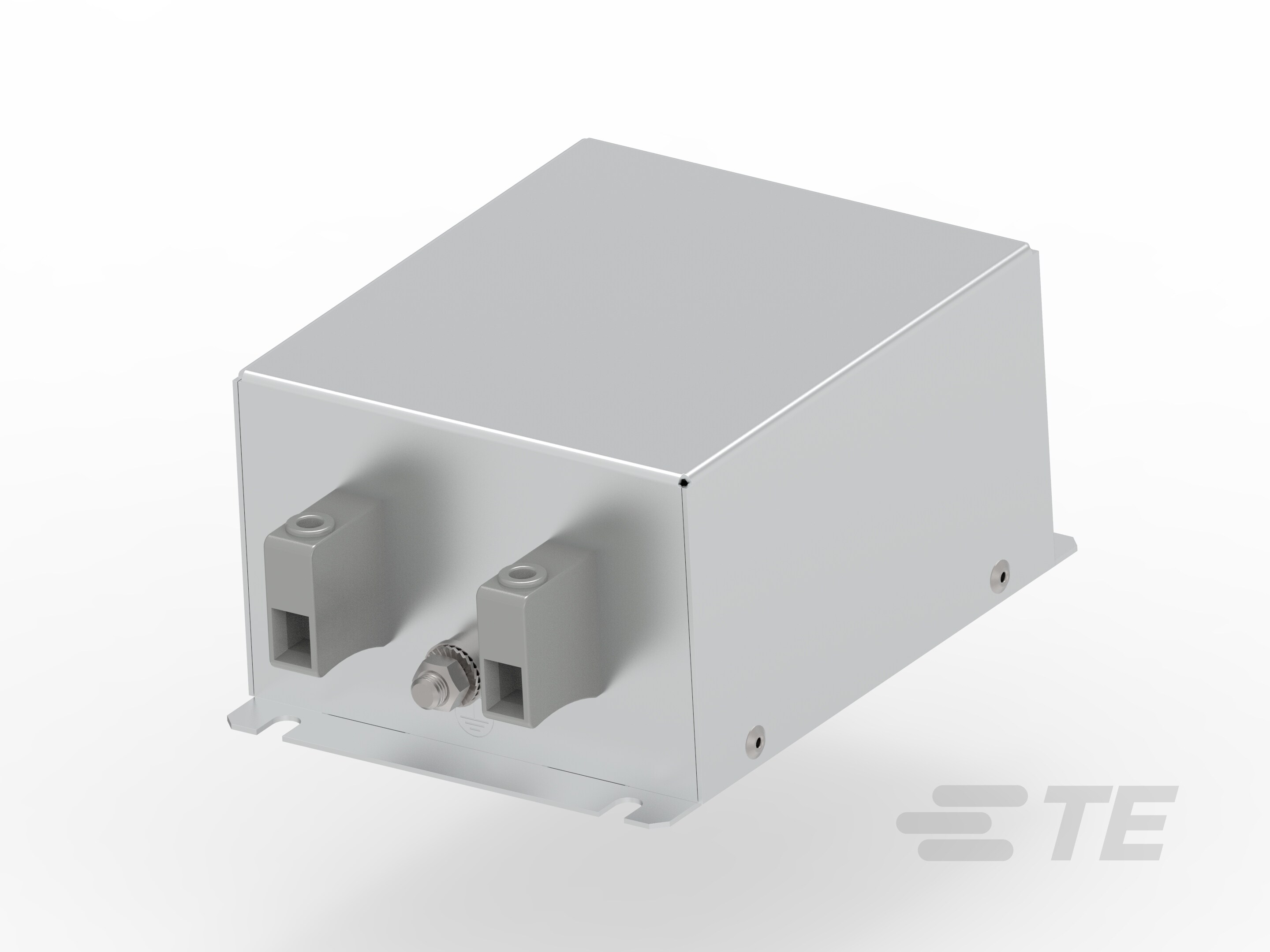

TE Connectivity AMP Connectors FN2410H-16-44	CSA ENEC UR	Single Stage	16 A	300 V 520 V	Chassis Mount	100 °C	-25 °C	Terminal Block	Single Phase	DC ~ 400Hz	General Purpose
TE Connectivity AMP Connectors FN2410-60-34	CSA ENEC UR	Single Stage	60 A	250 V	Chassis Mount	100 °C	-25 °C	Terminal Block	Single Phase		General Purpose	250 Hz

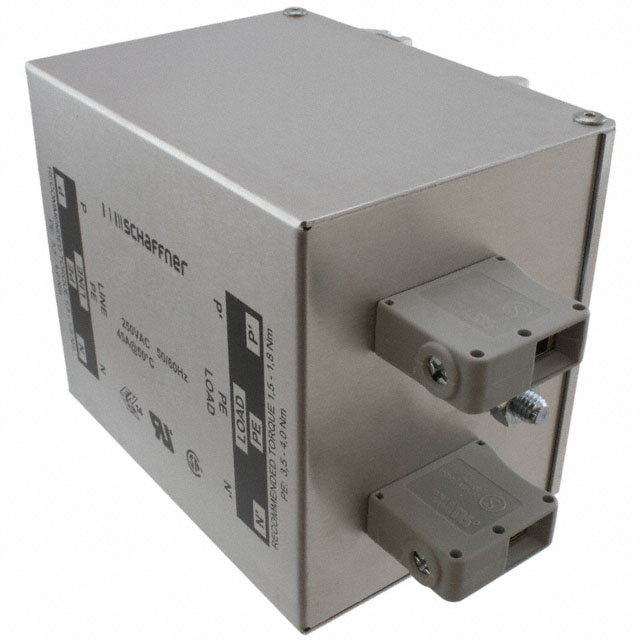

TE Connectivity AMP Connectors FN2412H-16-44	CSA ENEC UR	Single Stage	16 A	300 V 520 V	DIN Rail	100 °C	-25 °C	Terminal Block	Single Phase	DC ~ 400Hz	Regenerative Motor Drive
TE Connectivity AMP Connectors FN2412H-32-33	CSA ENEC UR	Single Stage	32 A	300 V 520 V	DIN Rail	100 °C	-25 °C	Terminal Block	Single Phase	DC ~ 400Hz	Regenerative Motor Drive

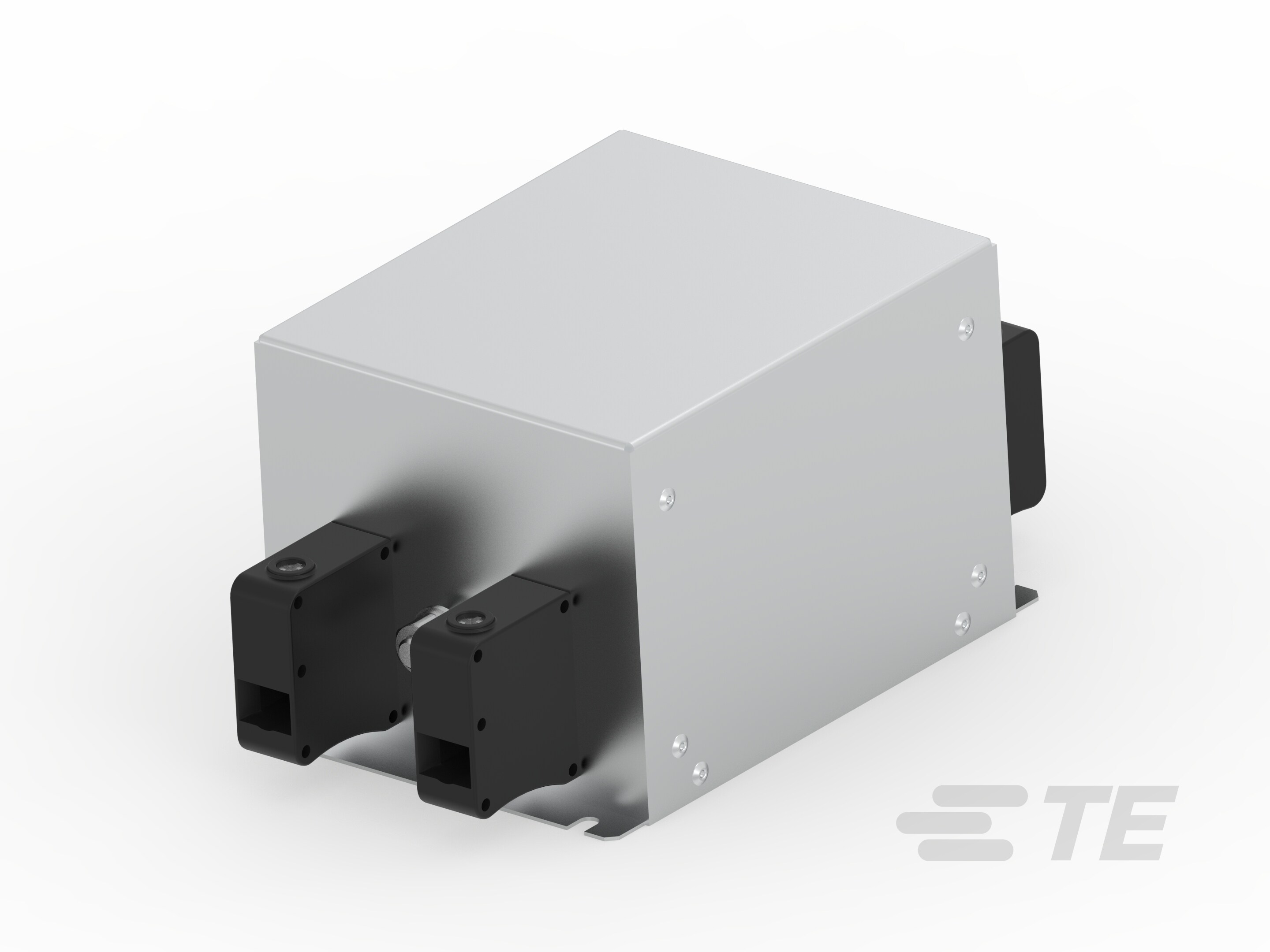

TE Connectivity AMP Connectors FN2410-80-34	CSA ENEC UR	Single Stage	80 A	250 V	Chassis Mount	100 °C	-25 °C	Terminal Block	Single Phase		General Purpose	250 Hz
TE Connectivity AMP Connectors FN2410H-25-33	CSA ENEC UR	Single Stage	25 A	300 V 520 V	Chassis Mount	100 °C	-25 °C	Terminal Block	Single Phase	DC ~ 400Hz	General Purpose
TE Connectivity AMP Connectors FN2410H-100-34	CSA ENEC UR	Single Stage	100 A	300 V 520 V	Chassis Mount	100 °C	-25 °C	Terminal Block	Single Phase		General Purpose	250 Hz
TE Connectivity AMP Connectors FN2410-8-44	CSA ENEC UR	Single Stage	8 A	250 V	Chassis Mount	100 °C	-25 °C	Terminal Block	Single Phase	DC ~ 400Hz	General Purpose
