306-030 Series
Manufacturer: EDAC Inc.
Beta
⌘K

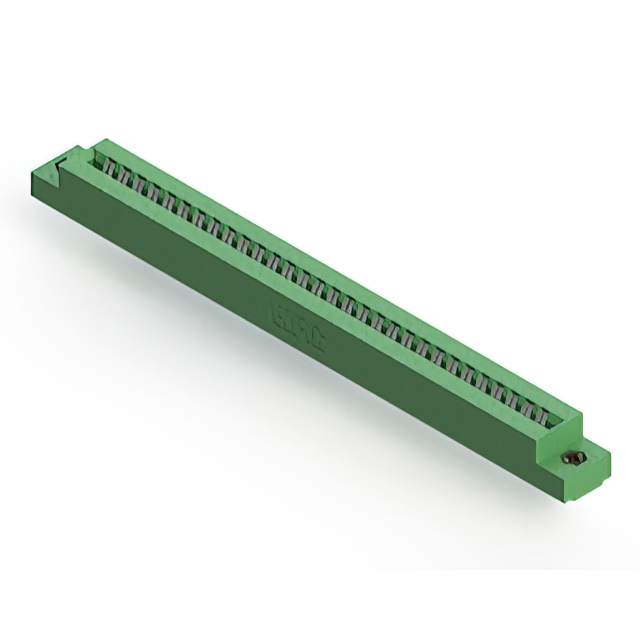

CONN EDGE DUAL FMALE 60POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Finish | Flange Feature | Features | Gender | Number of Positions | Number of Positions/Bay/Row | Number of Rows [custom] | Contact Type | Read Out | Card Type | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Pitch | Pitch | Color | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | Female | 60 | 30 | 2 | Cantilever | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Solder | 3.96 mm | 0.156 in | Green | Panel Mount Through Hole | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Female | 60 | 30 | 2 | Cantilever | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Solder | 3.96 mm | 0.156 in | Green | Panel Mount Through Hole | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Flush Mount Top Opening Unthreaded | Female | 60 | 30 | 2 | Cantilever | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Solder Eyelet(s) | 3.96 mm | 0.156 in | Green | Panel Mount | 0.156 " | 3.96 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Female | 60 | 30 | 2 | Cantilever | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Solder | 3.96 mm | 0.156 in | Green | Through Hole | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Female | 60 | 30 | 2 | Cantilever | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Solder | 3.96 mm | 0.156 in | Green | Through Hole | ||||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Flush Mount Top Opening Unthreaded | Female | 60 | 30 | 2 | Cantilever | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Solder | 3.96 mm | 0.156 in | Green | Panel Mount Through Hole | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Flush Mount Top Opening Unthreaded | Female | 60 | 30 | 2 | Cantilever | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Solder Eyelet(s) | 3.96 mm | 0.156 in | Green | Panel Mount | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Flush Mount M3 Threaded Insert Top Opening | Female | 60 | 30 | 2 | Cantilever | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Solder | 3.96 mm | 0.156 in | Green | Panel Mount Through Hole | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | 4-40 Flush Mount Threaded Insert Top Opening | Female | 60 | 30 | 2 | Cantilever | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Solder | 3.96 mm | 0.156 in | Green | Panel Mount Through Hole | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Flush Mount M3 Threaded Insert Top Opening | Female | 60 | 30 | 2 | Cantilever | Dual | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Solder | 3.96 mm | 0.156 in | Green | Panel Mount Through Hole |
