1546215 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLK 6P SIDE ENT 2.54MM PCB

Part	Mounting Type	Screw Thread	Wire Termination	Mating Orientation	Torque - Screw	Torque - Screw	Screw Material - Plating	Contact Material - Plating [custom]	Current	Color	Positions Per Level	Clamp Material - Plating	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Levels	Wire Gauge [Max]	Wire Gauge [Min]
TE Connectivity Raychem Cable Protection 1546215-6	Through Hole	M1.6	Screw - Rising Cage Clamp	Horizontal with Board	0.2 Nm	1.7 Lb-In	Stainless Steel	Brass - Tin Plated	10 A	Gray	6	Brass - Nickel Plated	150 V	-40 °C	105 ░C	2.54 mm	0.1 in	1	30 AWG	16 AWG

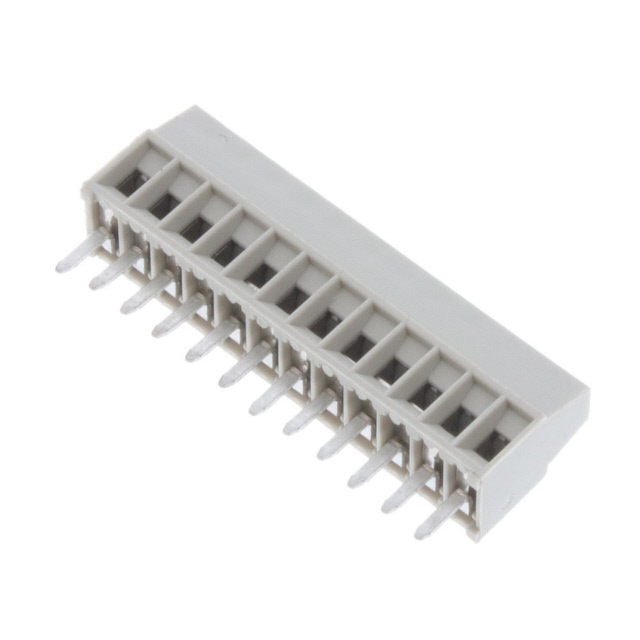

TE Connectivity Raychem Cable Protection 1-1546215-2	Through Hole	M1.6	Screw - Rising Cage Clamp	Horizontal with Board	0.2 Nm	1.7 Lb-In	Stainless Steel	Brass - Tin Plated	10 A	Gray	12	Brass - Nickel Plated	150 V	-40 °C	105 ░C	2.54 mm	0.1 in	1	30 AWG	16 AWG

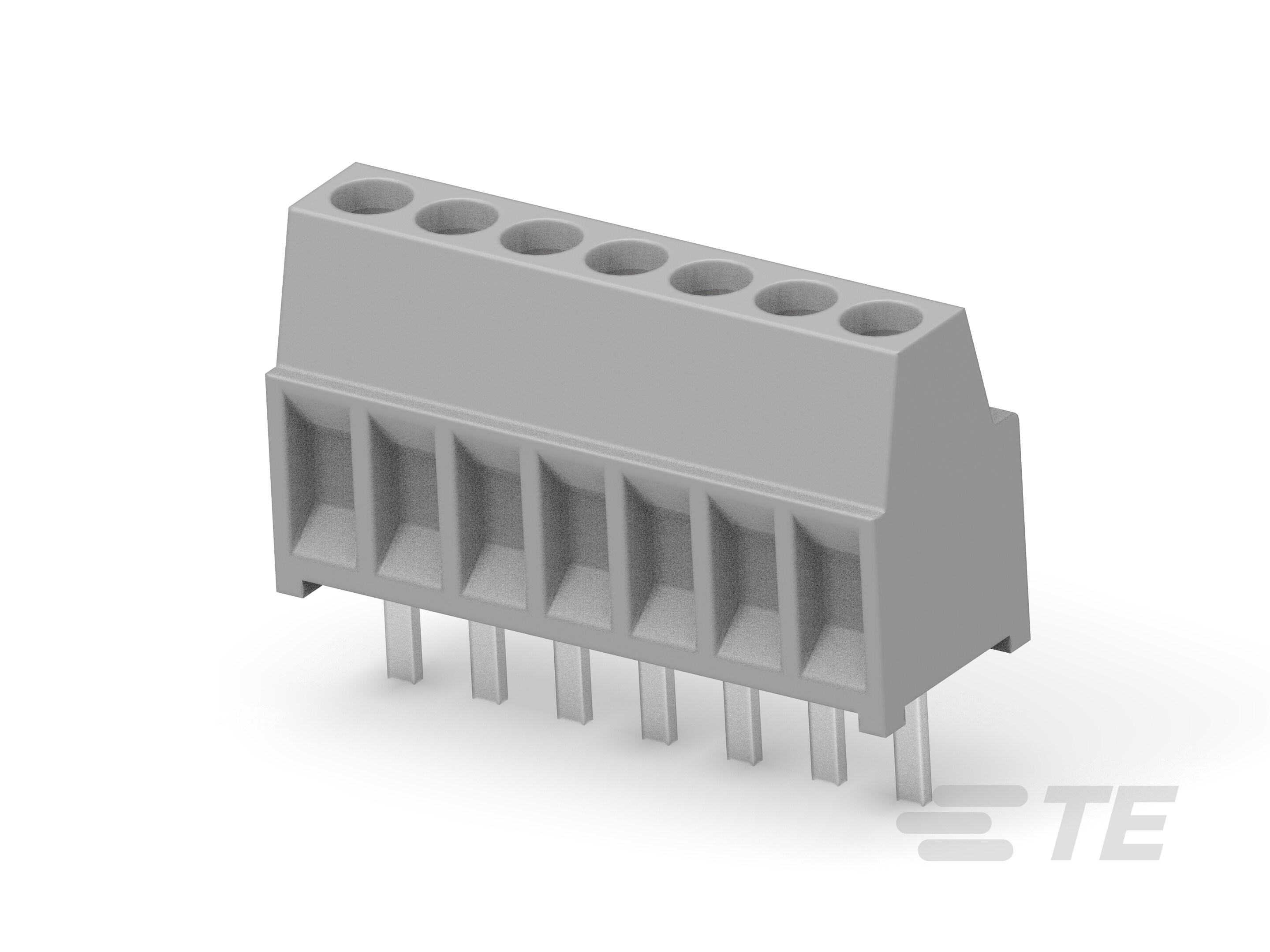

TE Connectivity Raychem Cable Protection 1546215-7	Through Hole	M1.6	Screw - Rising Cage Clamp	Horizontal with Board	0.2 Nm	1.7 Lb-In	Stainless Steel	Brass - Tin Plated	10 A	Gray	7	Brass - Nickel Plated	150 V	-40 °C	105 ░C	2.54 mm	0.1 in	1	30 AWG	16 AWG

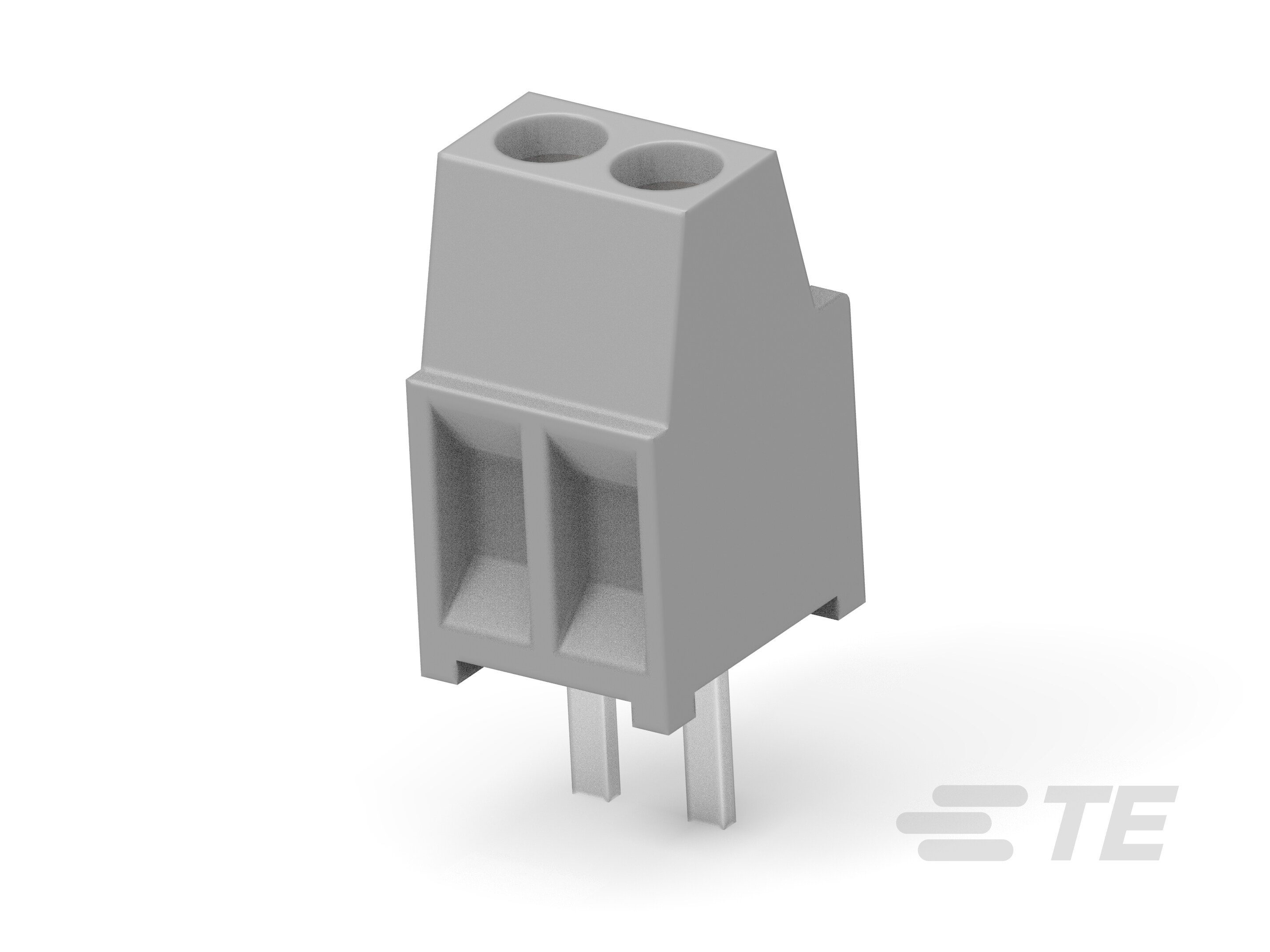

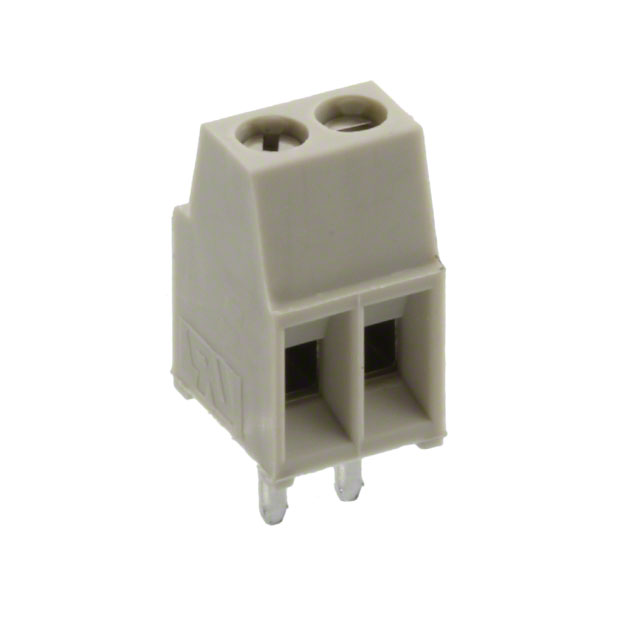

TE Connectivity Raychem Cable Protection 1546215-2	Through Hole	M1.6	Screw - Rising Cage Clamp	Horizontal with Board	0.2 Nm	1.7 Lb-In	Stainless Steel	Brass - Tin Plated	10 A	Gray	2	Brass - Nickel Plated	150 V	-40 °C	105 ░C	2.54 mm	0.1 in	1	30 AWG	16 AWG
TE Connectivity Raychem Cable Protection 1-1546215-0	Through Hole	M1.6	Screw - Rising Cage Clamp	Horizontal with Board	0.2 Nm	1.7 Lb-In	Stainless Steel	Brass - Tin Plated	10 A	Gray	10	Brass - Nickel Plated	150 V	-40 °C	105 ░C	2.54 mm	0.1 in	1	30 AWG	16 AWG
