880642 Series

Catalog

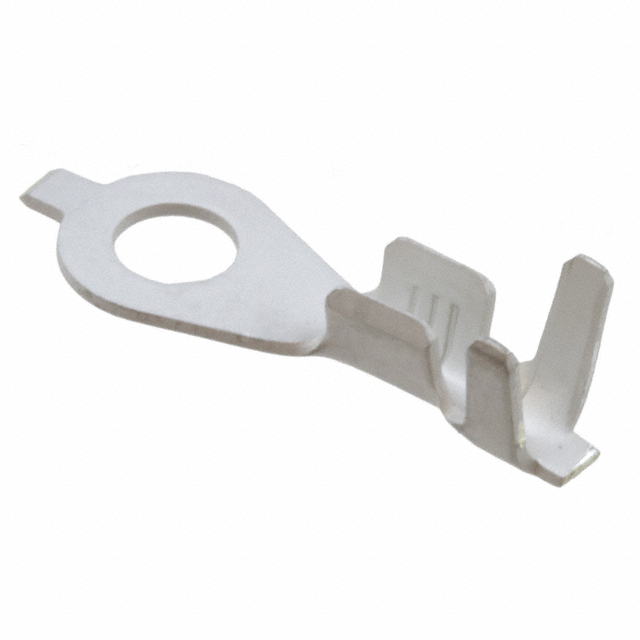

RING TONGUE 1.0-2.5 MM2 0.61X14.60 TPBR

Part	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Terminal Type	Termination	Thickness	Thickness	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Mounting Type	Width - Outer Edges [x]	Width - Outer Edges
TE Connectivity AMP Connectors 880642-2	2.69 mm	0.157 in	3.99 mm	0.106 in	0.78 in	19.81 mm	Tin	Circular	Crimp	0.61 mm	0.024 "	Brass	17 AWG	13 AWG	Non-Insulated	Free Hanging (In-Line)	0.319 in	8.1 mm
TE Connectivity AMP Connectors 880642-1	2.69 mm	0.157 in	3.99 mm	0.106 in	0.78 in	19.81 mm		Circular	Crimp	0.61 mm	0.024 "	Brass	17 AWG	13 AWG	Non-Insulated	Free Hanging (In-Line)	0.319 in	8.1 mm
