SFW12R Series

Catalog

CONN FPC TOP 12POS 1MM R/A

Part	Mating Cycles	Housing Color	Number of Positions	Voltage Rating	Connector/Contact Type	Pitch	Pitch	Flat Flex Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	Actuator Material	Mounting Type	Cable End Type	Contact Finish	Termination	FFC, FCB Thickness	Contact Material	Housing Material	Actuator Color	Locking Feature	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Features
Amphenol ICC (FCI) SFW12R-2STAE1LF	20	Brown	12	100 V	Contacts Top	1 mm	0.039 in	FPC	-55 C	105 ░C	UL94 V-0	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Straight	Gold	Solder	0.3 mm	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled
Amphenol ICC (FCI) SFW12R-2STE1LF	20	Brown	12	100 V	Contacts Top	1 mm	0.039 in	FFC FPC	-55 C	105 ░C	UL94 V-0	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Straight Tapered	Tin	Solder		Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Black	Slide Lock	0.3 mm	0.33 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW12R-3STAE1LF	20	Black	12	100 V	Contacts Bottom	1 mm	0.039 in	FPC	-55 C	105 ░C	UL94 V-0	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Notched	Gold	Solder	0.33 mm	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Brown	Slide Lock
Amphenol ICC (FCI) SFW12R-6STE9LF		Brown	12		Contacts Top	1 mm	0.039 in	CIC			UL94 V-0	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Tapered	Tin	Solder	0.3 mm	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Beige	Slide Lock			Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW12R-1STAE1LF	20	Brown	12	100 V	Contacts Bottom	1 mm	0.039 in	FPC	-55 C	105 ░C	UL94 V-0	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Tapered	Gold	Solder	0.33 mm	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Brown	Slide Lock
Amphenol ICC (FCI) SFW12R-2STE1		Brown	12		Contacts Top	1 mm	0.039 in	FFC FPC			UL94 V-0	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Straight Tapered	Tin Alloy	Solder		Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Black	Slide Lock	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW12R-3STE1LF	20	Black	12	100 V	Contacts Bottom	1 mm	0.039 in	FFC FPC	-55 C	105 ░C	UL94 V-0	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Tapered	Tin	Solder	0.3 mm	Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Black	Slide Lock
Amphenol ICC (FCI) SFW12R-1STZE1LF	20	Brown	12	100 V	Contacts Bottom	1 mm	0.039 in	FFC FPC	-55 C	105 ░C	UL94 V-0	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Straight Tapered	Tin	Solder		Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Black	Slide Lock	0.3 mm	0.33 mm

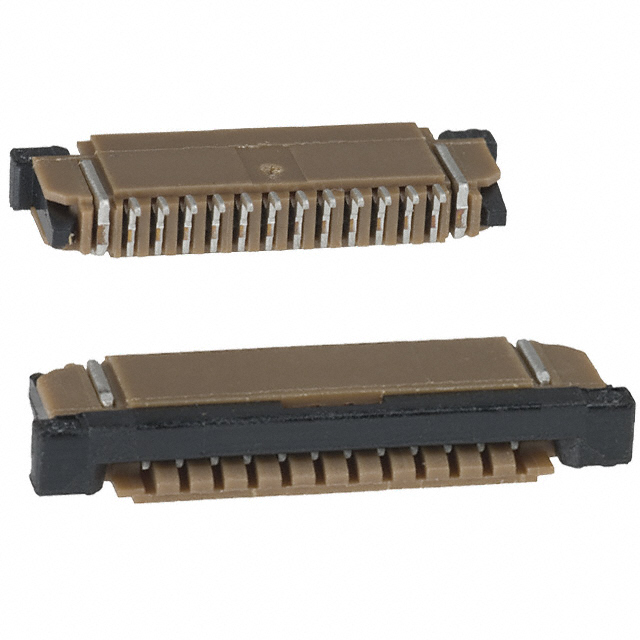

Amphenol ICC (FCI) SFW12R-1STE1		Brown	12		Contacts Bottom	1 mm	0.039 in	FFC FPC			UL94 V-0	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Straight Tapered	Tin Alloy	Solder		Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Black	Slide Lock	0.3 mm	0.33 mm

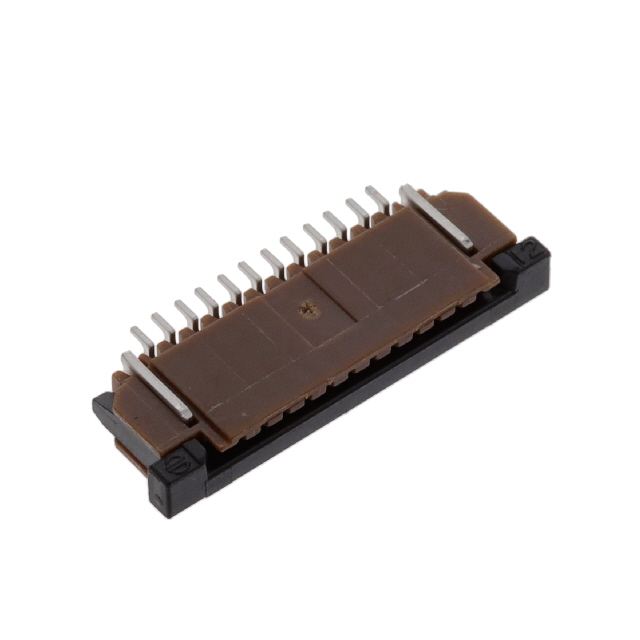

Amphenol ICC (FCI) SFW12R-1STE9LF	20	Brown	12	100 V	Contacts Bottom	1 mm	0.039 in	FFC FPC	-55 C	105 ░C	UL94 V-0	0.106 in	2.7 mm	Polyphenylene Sulfide (PPS) Glass Filled	Right Angle Surface Mount	Straight Tapered	Tin	Solder		Phosphor Bronze	Polyphenylene Sulfide (PPS) Glass Filled	Black	Slide Lock	0.3 mm	0.33 mm
