282921 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

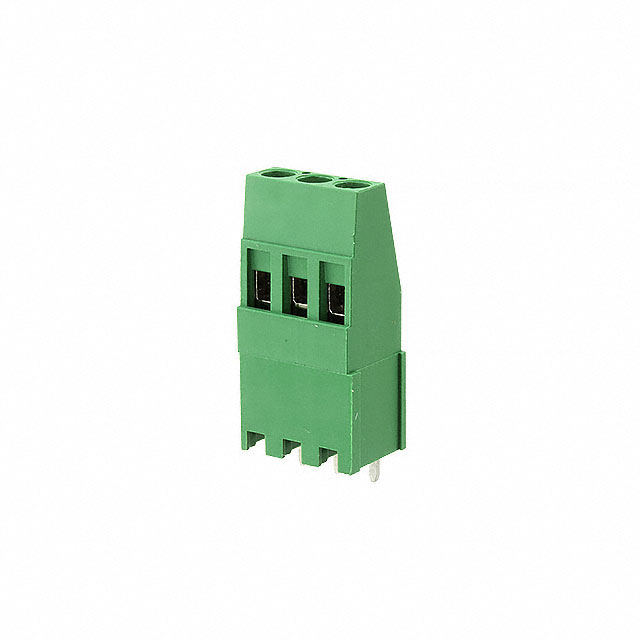

TERM BLK 3P SIDE ENT 5.08MM PCB
| Part | Current | Wire Termination | Contact Material - Plating [custom] | Screw Material - Plating | Features | Clamp Material - Plating | Mounting Type | Pitch [x] | Pitch [x] | Mating Orientation | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Screw Thread | Color | Voltage | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 24 A | Screw - Rising Cage Clamp | Brass - Tin Plated | Brass - Nickel Plated | Interlocking (Rear Side) Mid Wire Entry Level | Brass - Nickel Plated | Through Hole | 0.2 in | 5.08 mm | Horizontal with Board | 30 AWG | 12 AWG | 3 | -40 °C | 105 ░C | 0.79 Nm | 7 Lb-In | M3 | Green | 300 V | 1 |
