SWR204 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 4POS 2MM

Part	Pitch - Mating	Pitch - Mating	Fastening Type	Connector Type	Contact Shape	Number of Positions	Number of Positions Loaded	Current Rating (Amps)	Termination	Material Flammability Rating	Style	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating	Shrouding	Contact Type	Contact Finish - Post	Contact Material	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Insulation Material	Insulation Color	Insulation Height	Insulation Height
Sullins Connector Solutions SWR204-NRTN-D02-ST-GA	0.079 "	2 mm	Detent Lock	Header	Square	4	All	3 A	Solder	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	85 °C	-25 °C	Through Hole	50 V	Shrouded - 4 Wall	Male Pin	Tin	Brass	0.118 in	3 mm	2	Nylon 6/6 Polyamide (PA66)	Gray	0.256 in	6.5 mm

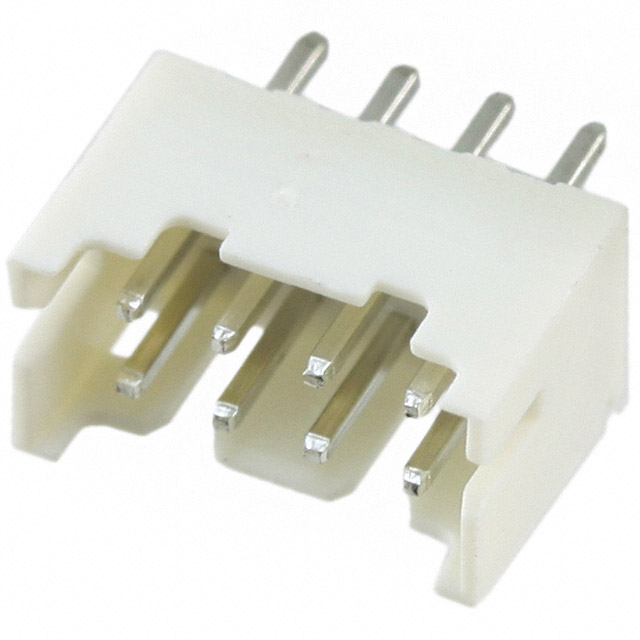

Sullins Connector Solutions SWR204-NRTN-D04-ST-GA	0.079 "	2 mm	Detent Lock	Header	Square	8	All	3 A	Solder	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	85 °C	-25 °C	Through Hole	50 V	Shrouded - 4 Wall	Male Pin	Tin	Brass	0.118 in	3 mm	2	Nylon 6/6 Polyamide (PA66)	Gray	0.256 in	6.5 mm

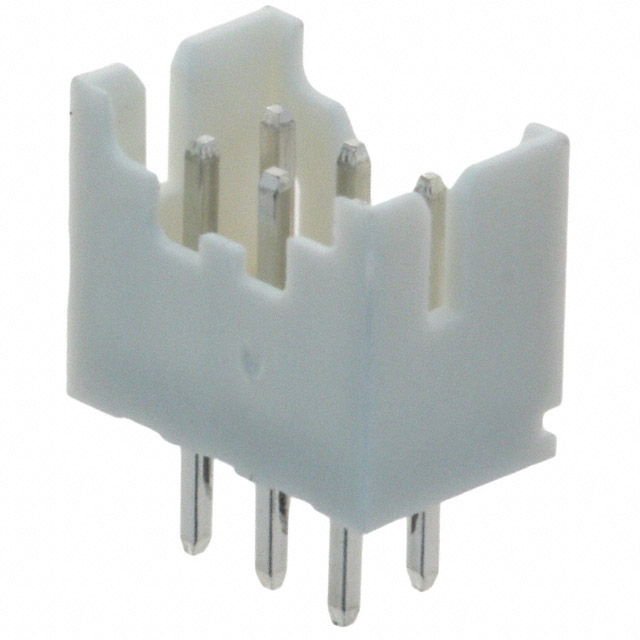

Sullins Connector Solutions SWR204-NRTN-D03-ST-GA	0.079 "	2 mm	Detent Lock	Header	Square	6	All	3 A	Solder	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	85 °C	-25 °C	Through Hole	50 V	Shrouded - 4 Wall	Male Pin	Tin	Brass	0.118 in	3 mm	2	Nylon 6/6 Polyamide (PA66)	Gray	0.256 in	6.5 mm
Sullins Connector Solutions SWR204-NRTN-D15-RA-GA	0.079 "	2 mm	Detent Lock	Header	Square	30	All	3 A	Solder	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	85 °C	-25 °C	Right Angle Through Hole	50 V	Shrouded - 4 Wall	Male Pin	Tin	Brass	0.118 in	3 mm	2	Nylon 6/6 Polyamide (PA66)	Gray	0.197 "	5 mm

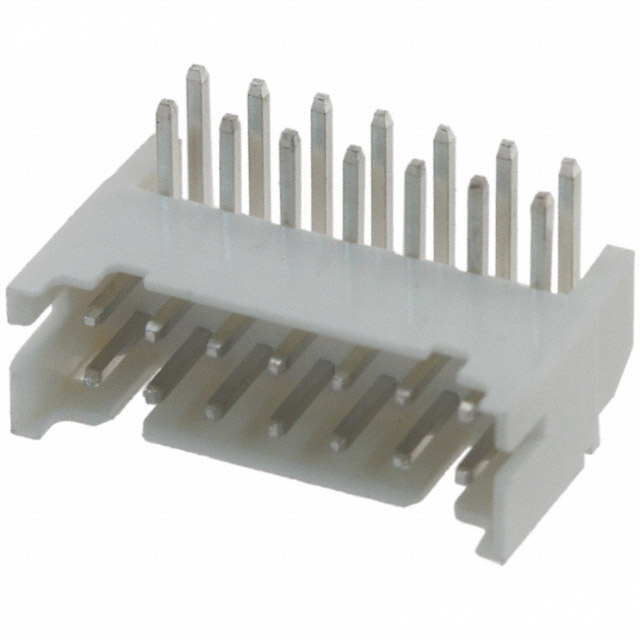

Sullins Connector Solutions SWR204-NRTN-D07-RA-GA	0.079 "	2 mm	Detent Lock	Header	Square	14	All	3 A	Solder	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	85 °C	-25 °C	Right Angle Through Hole	50 V	Shrouded - 4 Wall	Male Pin	Tin	Brass	0.118 in	3 mm	2	Nylon 6/6 Polyamide (PA66)	Gray	0.197 "	5 mm
Sullins Connector Solutions SWR204-NRTN-D11-RA-GA	0.079 "	2 mm	Detent Lock	Header	Square	22	All	3 A	Solder	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	85 °C	-25 °C	Right Angle Through Hole	50 V	Shrouded - 4 Wall	Male Pin	Tin	Brass	0.118 in	3 mm	2	Nylon 6/6 Polyamide (PA66)	Gray	0.197 "	5 mm

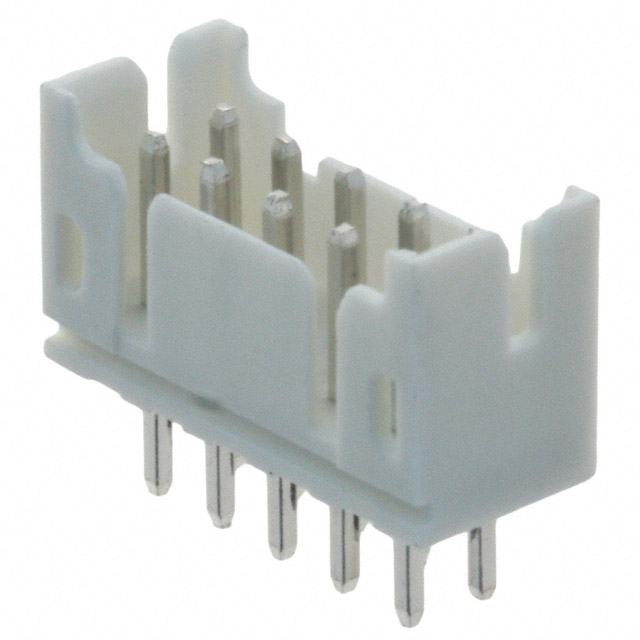

Sullins Connector Solutions SWR204-NRTN-D05-ST-GA	0.079 "	2 mm	Detent Lock	Header	Square	10	All	3 A	Solder	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	85 °C	-25 °C	Through Hole	50 V	Shrouded - 4 Wall	Male Pin	Tin	Brass	0.118 in	3 mm	2	Nylon 6/6 Polyamide (PA66)	Gray	0.256 in	6.5 mm
Sullins Connector Solutions SWR204-NRTN-D13-RA-GA	0.079 "	2 mm	Detent Lock	Header	Square	26	All	3 A	Solder	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	85 °C	-25 °C	Right Angle Through Hole	50 V	Shrouded - 4 Wall	Male Pin	Tin	Brass	0.118 in	3 mm	2	Nylon 6/6 Polyamide (PA66)	Gray	0.197 "	5 mm
Sullins Connector Solutions SWR204-NRTN-D12-RA-GA	0.079 "	2 mm	Detent Lock	Header	Square	24	All	3 A	Solder	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	85 °C	-25 °C	Right Angle Through Hole	50 V	Shrouded - 4 Wall	Male Pin	Tin	Brass	0.118 in	3 mm	2	Nylon 6/6 Polyamide (PA66)	Gray	0.197 "	5 mm

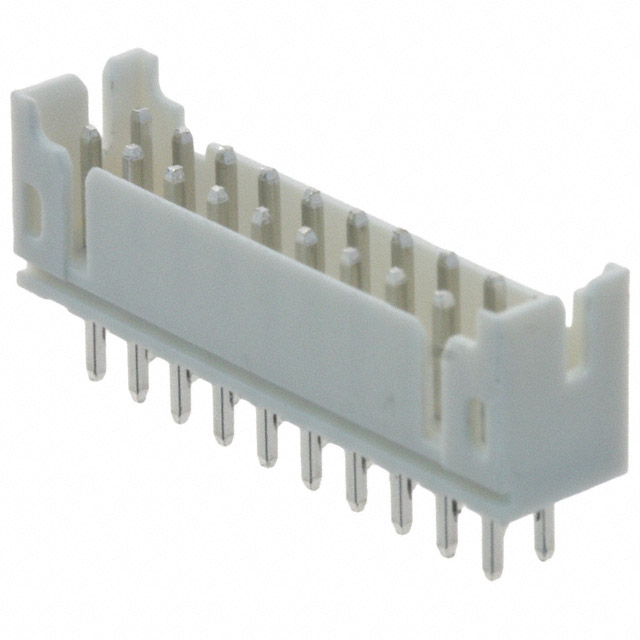

Sullins Connector Solutions SWR204-NRTN-D10-ST-GA	0.079 "	2 mm	Detent Lock	Header	Square	20	All	3 A	Solder	UL94 V-0	Board to Cable/Wire	2 mm	0.079 in	85 °C	-25 °C	Through Hole	50 V	Shrouded - 4 Wall	Male Pin	Tin	Brass	0.118 in	3 mm	2	Nylon 6/6 Polyamide (PA66)	Gray	0.256 in	6.5 mm
