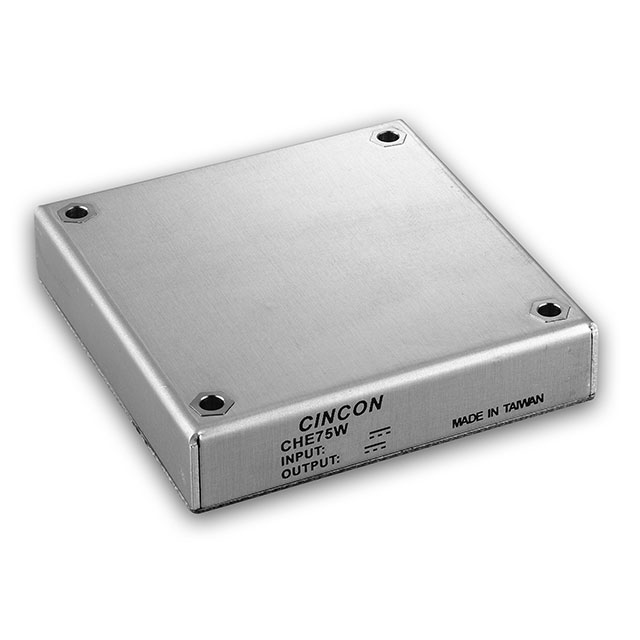

CHE75W Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 5V 75W

Part	Type	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Approval Agency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Package / Case	Features	Applications	Power (Watts)	Standard Number	Voltage - Output 1	Supplier Device Package	Voltage - Isolation	Current - Output (Max) [Max]
Cincon Electronics Co. LTD CHE75W-24S05	Isolated Module	Active High Enable	105 C	-40 °C	Through Hole	CE	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1	36 V	9 V	91 %	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 W	60950-1	5 V	Half Brick	1.5 kV	15 A
Cincon Electronics Co. LTD CHE75W-48S24	Isolated Module	Active High Enable	105 C	-40 °C	Through Hole	CE	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1	75 V	18 V	90.5 %	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 W	60950-1	24 V	Half Brick	1.5 kV	3.12 A

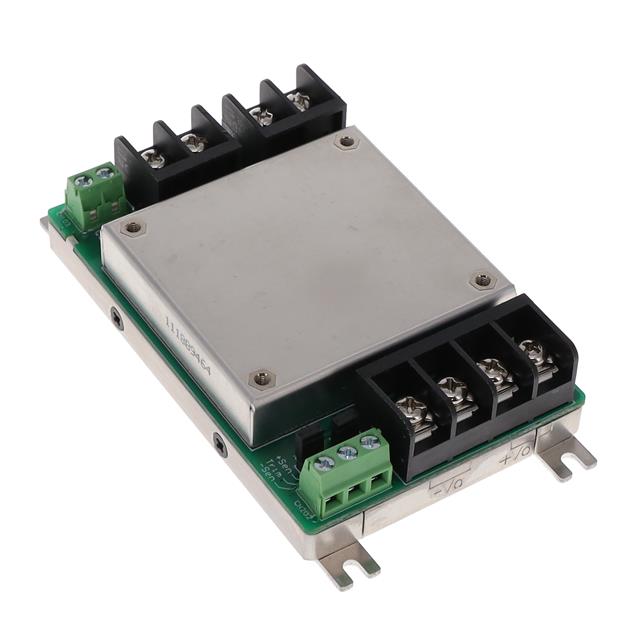

Cincon Electronics Co. LTD CHE75W-48S48-CM	Enclosed		105 C	-40 °C	Chassis Mount	CE cURus	2.54 in 64.6 mm				3.98 in 101.2 mm	1.03 " 26.2 mm	1	75 V	18 V	90 %			ITE (Commercial)	75 W		48 V		1.5 kV	1.56 A
Cincon Electronics Co. LTD CHE75W-24S24	Isolated Module	Active High Enable	105 C	-40 °C	Through Hole	CE	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1	36 V	9 V	90 %	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 W	60950-1	24 V	Half Brick	1.5 kV	3.12 A
Cincon Electronics Co. LTD CHE75W-48S12	Isolated Module	Active High Enable	105 C	-40 °C	Through Hole	CE	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1	75 V	18 V	92 %	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 W	60950-1	12 V	Half Brick	1.5 kV	6.25 A
Cincon Electronics Co. LTD CHE75W-48S48	Isolated Module	Active High Enable	105 C	-40 °C	Through Hole	CE	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1	75 V	18 V	90 %	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 W	60950-1	48 V	Half Brick	1.5 kV	1.56 A
Cincon Electronics Co. LTD CHE75W-24S24-CM	Enclosed		105 C	-40 °C	Chassis Mount	CE cURus	2.54 in 64.6 mm				3.98 in 101.2 mm	1.03 " 26.2 mm	1	36 V	9 V	90 %			ITE (Commercial)	75 W		24 V		1.5 kV	3.12 A

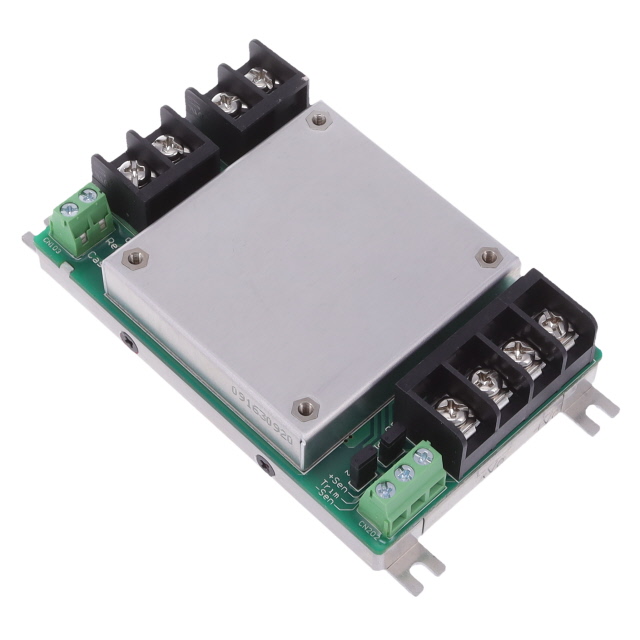

Cincon Electronics Co. LTD CHE75W-24S05-CM	Enclosed		105 C	-40 °C	Chassis Mount	CE cURus	2.54 in 64.6 mm				3.98 in 101.2 mm	1.03 " 26.2 mm	1	36 V	9 V	91 %			ITE (Commercial)	75 W		5 V		1.5 kV	15 A
Cincon Electronics Co. LTD CHE75W-24S12	Isolated Module	Active High Enable	105 C	-40 °C	Through Hole	CE	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1	36 V	9 V	91.5 %	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	75 W	60950-1	12 V	Half Brick	1.5 kV	6.25 A
