AMC131M02 Series
24-bit, 32-kSPS, 2-channel, simultaneous-sampling, delta-sigma ADC
Manufacturer: Texas Instruments
Catalog
24-bit, 32-kSPS, 2-channel, simultaneous-sampling, delta-sigma ADC
Key Features

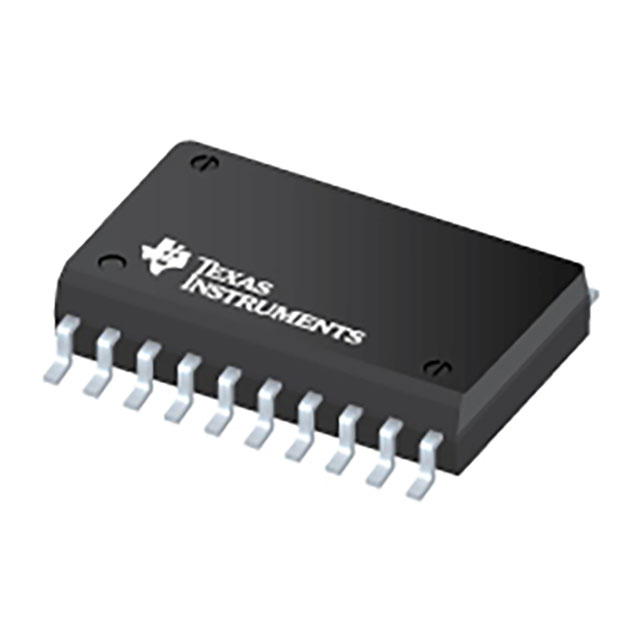

• Two isolated, simultaneous sampling ΔΣ ADCs with differential inputsSingle-supply operation (3.3 V or 5 V) with integrated DC/DC converterLow EMI: Meets CISPR-11 and CISPR-25 standardsProgrammable data rate up to 64 kSPSProgrammable gain up to 128Low-drift internal voltage reference4-wire SPI interface with cyclic redundancy check (CRC)Safety-related certifications:7070-V PEAK reinforced isolation per DIN EN IEC 60747-17 (VDE 0884-17)5000-V RMS isolation for 1 minute per UL1577Package: 20-pin, wide-body SOICTwo isolated, simultaneous sampling ΔΣ ADCs with differential inputsSingle-supply operation (3.3 V or 5 V) with integrated DC/DC converterLow EMI: Meets CISPR-11 and CISPR-25 standardsProgrammable data rate up to 64 kSPSProgrammable gain up to 128Low-drift internal voltage reference4-wire SPI interface with cyclic redundancy check (CRC)Safety-related certifications:7070-V PEAK reinforced isolation per DIN EN IEC 60747-17 (VDE 0884-17)5000-V RMS isolation for 1 minute per UL1577Package: 20-pin, wide-body SOIC
Description
AI
The AMC131M02 is a precision, two-channel, data- and power-isolated, simultaneous-sampling, 24-bit, delta-sigma (ΔΣ), analog-to-digital converter (ADC). The AMC131M02 offers wide dynamic range, low power, and energy-measurement-specific features designed for energy metering and power metrology applications. The ADC inputs can be directly interfaced to a resistor-divider network or a shunt current sensor because of the device high input impedance.
The AMC131M02 features a fully integrated isolated DC/DC converter that allows single-supply operation from the low-side of the device. The reinforced capacitive isolation barrier is certified according to VDE 0884-17 and UL1577. This isolation barrier separates parts of the system that operate on different common-mode voltage levels and protects lower-voltage parts from damage, making the AMC131M02 an excellent choice for polyphase energy metering applications using shunt current sensors.
The AMC131M02 is a precision, two-channel, data- and power-isolated, simultaneous-sampling, 24-bit, delta-sigma (ΔΣ), analog-to-digital converter (ADC). The AMC131M02 offers wide dynamic range, low power, and energy-measurement-specific features designed for energy metering and power metrology applications. The ADC inputs can be directly interfaced to a resistor-divider network or a shunt current sensor because of the device high input impedance.
The AMC131M02 features a fully integrated isolated DC/DC converter that allows single-supply operation from the low-side of the device. The reinforced capacitive isolation barrier is certified according to VDE 0884-17 and UL1577. This isolation barrier separates parts of the system that operate on different common-mode voltage levels and protects lower-voltage parts from damage, making the AMC131M02 an excellent choice for polyphase energy metering applications using shunt current sensors.
