6SVPS Series

Manufacturer: Panasonic Electronic Components

Catalog

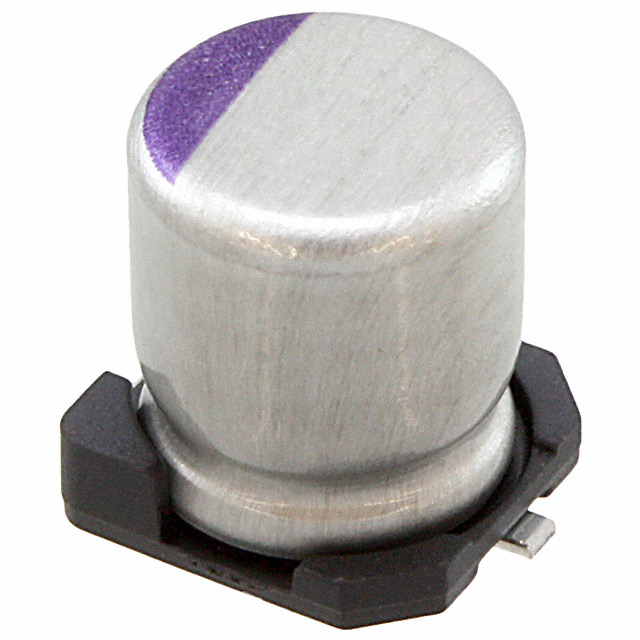

OS-CON, SVPS SERIES ROHS COMPLIANT: YES

Part	Mounting Type	Lifetime @ Temp.	Ripple Current @ Low Frequency	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Tolerance	Applications	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Ripple Current @ High Frequency	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Height - Seated (Max)
Panasonic Electronic Components 6SVPS22M	Surface Mount	5000 Hrs	37 mA	6.3 VDC	0.217 "	5.5 mm	Polymer	20 %	General Purpose	Radial Can - SMD	4 mm	0.157 in	4.3 mm	0.169 "	0.169 in	4.3 mm	740 mA	22 µF	-55 C	105 ░C	200 mOhm
Panasonic Electronic Components 6SVPS47M	Surface Mount	5000 Hrs	98.5 mA	6.3 VDC	0.236 "		Polymer	20 %	General Purpose	Radial Can - SMD	5 mm	0.197 in	0.209 in 5.3 mm			0.209 in 5.3 mm	1.97 A	47 µF	-55 C	105 ░C	30 mOhms	6 mm
Panasonic Electronic Components 6SVPS220M	Surface Mount	5000 Hrs	161 mA	6.3 VDC	0.276 in	7 mm	Polymer	20 %	General Purpose	Radial Can - SMD	8 mm	0.315 in	8.3 mm	0.327 in	0.327 in	8.3 mm	3.22 A	220 µF	-55 C	105 ░C	22 mOhms
Panasonic Electronic Components 6SVPS120M	Surface Mount	5000 Hrs	128.5 mA	6.3 VDC	0.236 "		Polymer	20 %	General Purpose	Radial Can - SMD	6.3 mm	0.248 "	6.6 mm	0.26 in	0.26 in	6.6 mm	2.57 A	120 µF	-55 C	105 ░C	22 mOhms	6 mm
Panasonic Electronic Components 6SVPS470M	Surface Mount	5000 Hrs	206.5 mA	6.3 VDC	0.315 in	8 mm	Polymer	20 %	General Purpose	Radial Can - SMD	10 mm	0.394 in	10.3 mm	0.406 in	0.406 "	10.3 mm	4.13 A	470 µF	-55 C	105 ░C	20 mOhms
