2009-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMB M STR BHD
| Part | Body Finish | Dielectric Material | Mating Cycles | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Connector Type | Number of Ports | Impedance | Mounting Type | Housing Color | Fastening Type | Center Contact Material | Contact Termination | Frequency - Max [Max] | Connector Style | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

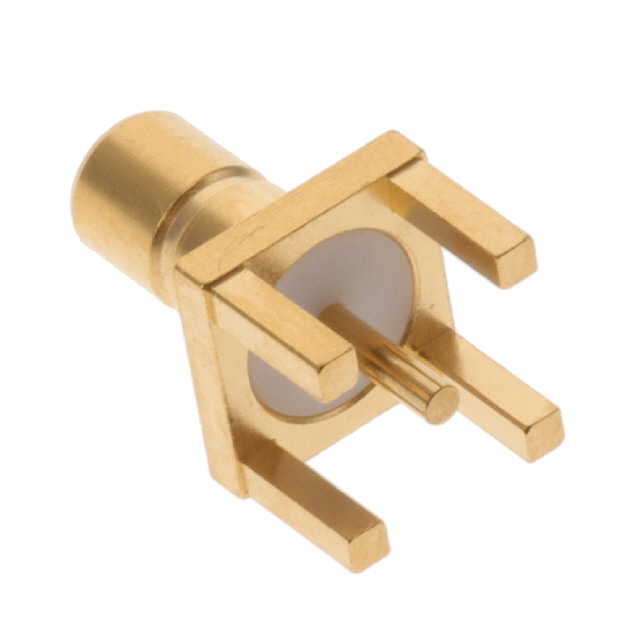

 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | Brass | Jack Male Pin | 1 | 50 Ohms | Through Hole | Gold | Snap-On | Brass | Solder | 4 GHz | SMB | Solder |

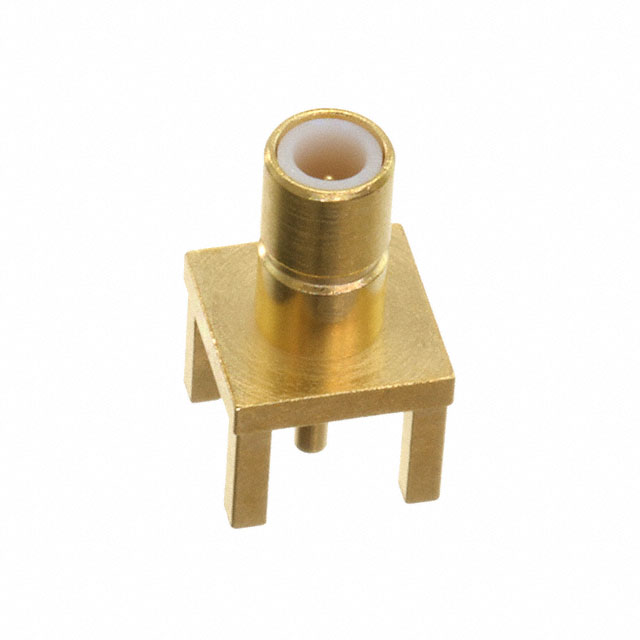

 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | Brass | Jack Male Pin | 1 | 50 Ohms | Through Hole | Gold | Snap-On | Brass | Solder | 4 GHz | SMB | Solder |

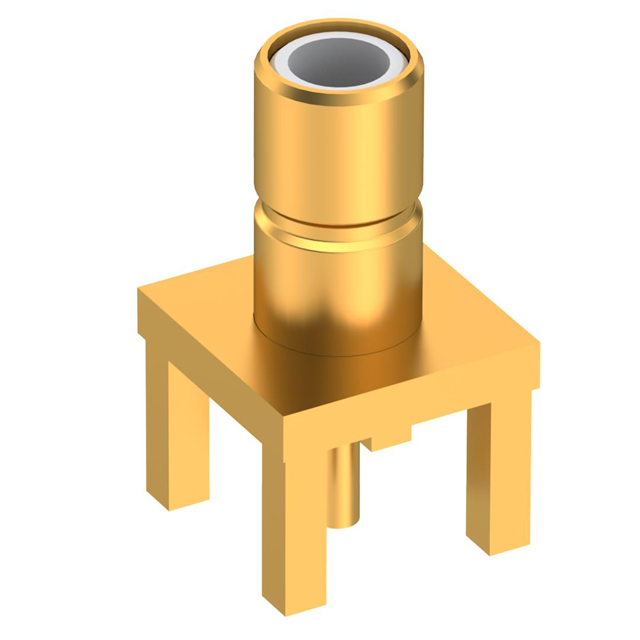

 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | Brass | Jack Male Pin | 1 | 50 Ohms | Through Hole | Gold | Snap-On | Brass | Solder | 4 GHz | SMB | Solder |
