2SA1416 Series

Bipolar Transistor, -100V, -1A, Low VCE(sat), (PNP)NPN Single PCP

Catalog

Bipolar Transistor, -100V, -1A, Low VCE(sat), (PNP)NPN Single PCP

Part	Current - Collector Cutoff (Max) [Max]	Mounting Type	Supplier Device Package	Operating Temperature	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Package / Case	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type

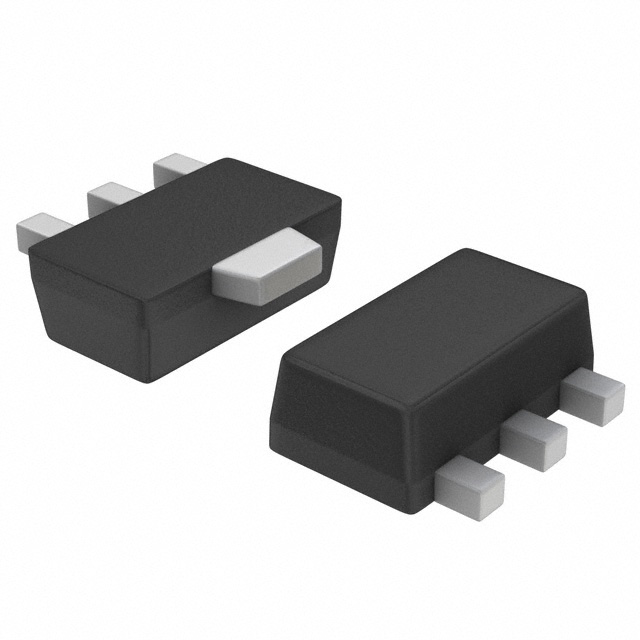

ON Semiconductor 2SA1416T-TD-E	100 nA	Surface Mount	PCP	150 °C	120 MHz	100 V	500 mW	400 mV	TO-243AA	1 A	100 hFE	PNP
ON Semiconductor 2SA1416S-TD-E	100 nA	Surface Mount	PCP	150 °C	120 MHz	100 V	500 mW	400 mV	TO-243AA	1 A	100 hFE	PNP

Bipolar Transistor, -100V, -1A, Low VCE(sat), (PNP)NPN Single PCP

• Adoption of FBET, MBIT processes

• High breakdown voltage and large current capacity

• Fast switching speed

• Ultrasmall size making it easy to provide high-density, small-sized hybrid ICs

2SA1416 is a Bipolar Transistor, -100V, -1A, Low VCE(sat), (PNP)NPN Single PCP for High-Voltage Switching Applications.
